Thermodynamic Analysis of Heat Absorption Temperature Difference of Supercritical CO2 Recompression Cycle

doi:10.12096/j.2096-4528.pgt.260204

Abstract

Abstract:

Objectives To reduce the amount of molten salt in molten salt thermal energy storage tower-type solar thermal power generation systems, it is necessary to increase the heat absorption temperature difference of supercritical CO₂, thereby enhancing the heat absorption and release temperature difference of the molten salt, therefore, modeling and analysis are carried out for the endothermic temperature difference of supercritical CO₂. Methods A supercritical CO₂ recompression cycle model is established in EBSILON, and combined with theoretical derivation to analyze the heat absorption temperature difference of the main heater (ΔT₁) and the reheater (ΔT₂). A combination of theoretical analysis and simulation is employed to investigate in detail the effects of parameters such as the maximum cycle temperature, minimum cycle temperature, total cycle pressure ratio, high-pressure turbine pressure ratio, and shunt coefficient on the heat absorption temperature difference of supercritical CO₂. Results Increasing the maximum cycle temperature, and decreasing the minimum cycle temperature, total cycle pressure ratio, high-pressure turbine pressure ratio, and shunt coefficient can increase the main heater heat absorption temperature difference ΔT₁. Increasing the maximum cycle temperature, total cycle pressure ratio, and high-pressure turbine pressure ratio can increase the reheater heat absorption temperature difference ΔT₂. When the maximum cycle temperature increases, both ΔT₁ and ΔT₂ increase. Data show that when the maximum cycle temperature rises from 400 ℃ to 700 ℃, ΔT₁ increases from 122.13 ℃ to 182.81 ℃, and ΔT₂ increases from 54.47 ℃ to 67.23 ℃. Conclusions By adjusting cycle parameters, the heat absorption temperature difference of the supercritical CO₂ recompression cycle can be effectively improved, thereby optimizing system performance. The results provide a theoretical basis for further optimization of the supercritical CO₂ recompression cycle.

Key words: supercritical CO₂ recompression cycle, main heater, heat absorption temperature difference, reheater, cycle parameters, solar thermal power generation, molten salt

CLC Number:

TK 01

Xiaofei ZHEN, Li ZHANG, Yongheng ZHANG. Thermodynamic Analysis of Heat Absorption Temperature Difference of Supercritical CO₂Recompression Cycle[J]. Power Generation Technology, 2026, 47(2): 266-273.

Figures/Tables 9

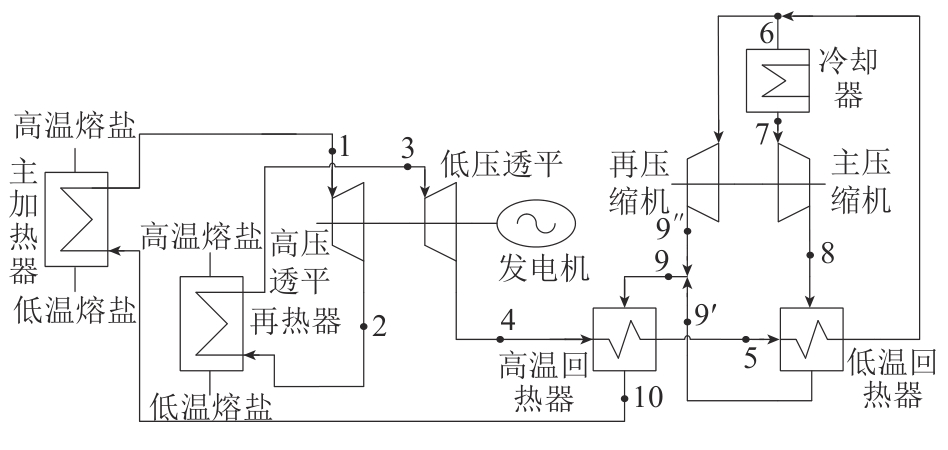

Fig. 1 Structural diagram of supercritical CO2 recompression cycle

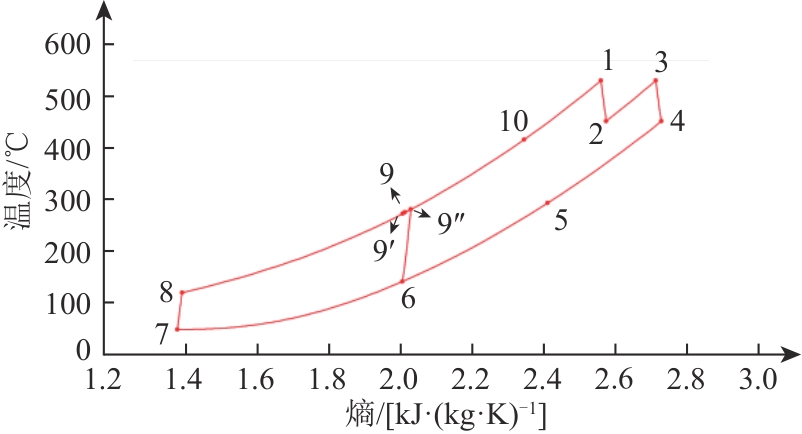

Fig. 2 Temperature-entropy diagram of supercritical CO2 recompression cycle

Tab. 1 Basic design parameters of power cycle

参数	数值	参数	数值
主汽温度/℃	550	高压透平定熵效率/%	90
再热温度/℃	550	低压透平定熵效率/%	90
主汽压力/MPa	30	再压缩机定熵效率/%	85
循环增压比	3.90	主压缩机定熵效率/%	85
再压缩机进口温度/℃	32	高温回热器效率/%	86
分流系数/%	33.1	低温回热器效率/%	86

Tab. 2 Comparison between model results and literature[7] data

参数	工况1	工况2
主汽/再热温度/℃	550	550
主压缩机进口温度/℃	32	32
主汽压力/MPa	30	20
循环增压比	3.90	2.64
分流系数	0.331	0.312
文献[7]循环效率/%	44.83	41.92
模型循环效率/%	44.16	42.57
循环效率相对误差/%	1.49	1.53

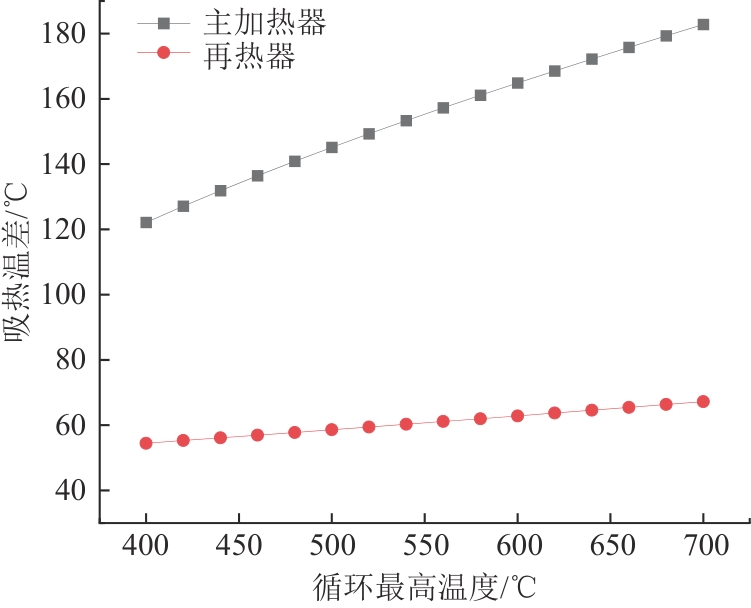

Fig. 3 Effect of maximum cycle temperature on heat absorption temperature difference

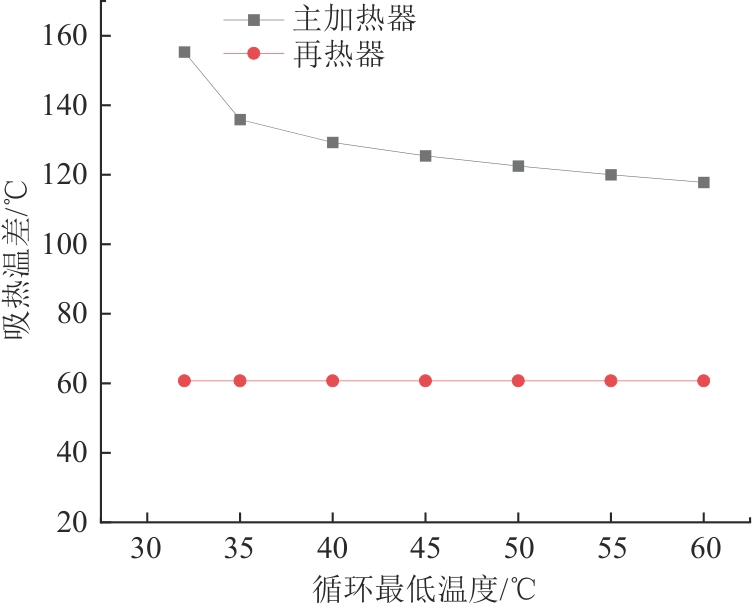

Fig. 4 Effect of minimum cycle temperature on heat absorption temperature difference

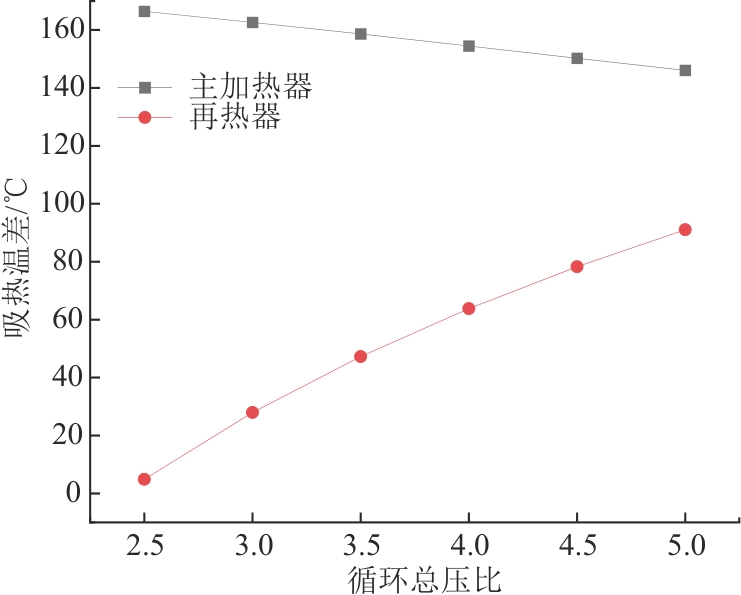

Fig. 5 Effect of total cycle pressure ratio on heat absorption temperature difference

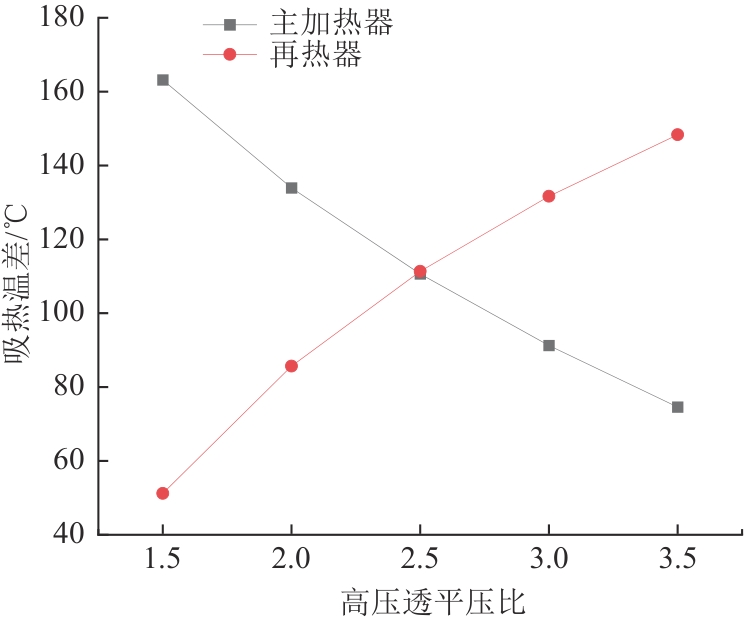

Fig. 6 Effect of high-pressure turbine pressure ratio on heat absorption temperature difference

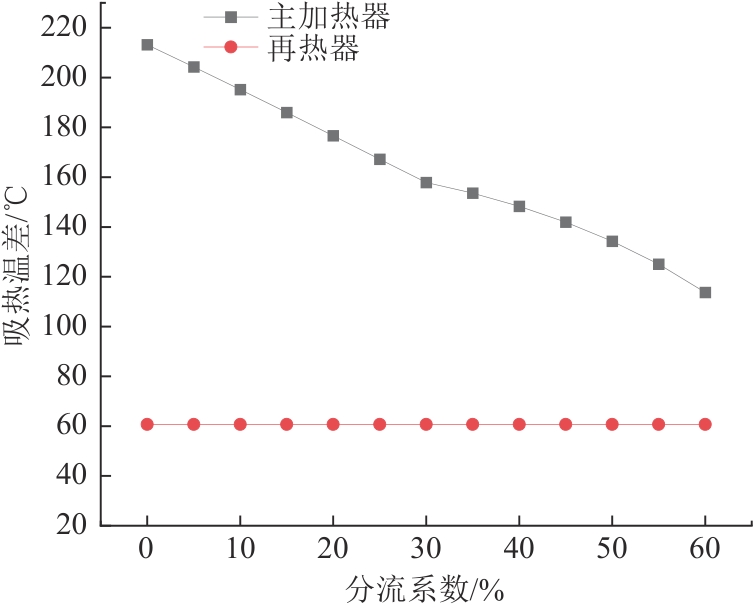

Fig. 7 Effect of shunt coefficient on heat absorption temperature difference

References 30

[1]	SULZER G ．Verfahren zur erzeugung von arbeit aus warme[J]．Swiss Patent，1950，269599：15．
[2]	FEHER E G ．The supercritical thermodynamic power cycle[J]．Energy Conversion，1968，8(2)：85-90． doi:10.1016/0013-7480(68)90105-8
[3]	ANGELINO G ．Carbon dioxide condensation cycles for power production[J]．Journal of Engineering for Power，1968，90(3)：287-295． doi:10.1115/1.3609190
[4]	陈璟，刘辉，朱萌，等．125 MW超临界CO₂燃煤发电机组烟气再循环对锅炉热力性能及经济性的影响分析[J]．发电技术，2025，46(5)：986-995． doi:10.12096/j.2096-4528.pgt.24034
	CHEN J， LIU H， ZHU M，et al ．Analysis of influence of flue gas recirculation on thermodynamic performance and economic efficiency of 125 MW supercritical CO₂ coal-fired power generation unit[J]．Power Generation Technology，2025，46(5)：986-995． doi:10.12096/j.2096-4528.pgt.24034
[5]	尹秋钰，李德波，方立军，等．1 000 MW超临界CO₂锅炉热力计算与变工况特性研究[J]．广东电力，2024，37(11)：120-126．
	YIN Q Y， LI D B， FANG L J，et al ．Thermodynamic calculation and research on 1 000 MW supercritical CO₂ boiler under variable conditions[J]．Guangdong Electric Power，2024，37(11)：120-126．
[6]	TURCHI C S， MA Z W， NEISES T W，et al ．Thermodynamic study of advanced supercritical carbon dioxide power cycles for high performance concentrating solar power systems[C]//Energy Sustainablity．American Society of Mechanical Engineers，2012，44816： 375-383． doi:10.1115/es2012-91179
[7]	TURCHI CRAIG S， MA Z， NEISES TY W，et al ．Thermodynamic study of advanced supercritical carbon dioxide power cycles for concentrating solar power systems[J]．Journal of Solar Energy Engineering，2013，135(4)：041007． doi:10.1115/1.4024030
[8]	NEISES T， TURCHI C ．A comparison of supercritical carbon dioxide power cycle configurations with an emphasis on CSP applications[J]．Energy Procedia，2014，49：1187-1196． doi:10.1016/J.EGYPRO.2014.03.128
[9]	SARKAR J， BHATTACHARYYA S ．Optimization of recompression S-CO₂ power cycle with reheating[J]．Energy Conversion and Management，2009，50(8)：1939-1945． doi:10.1016/j.enconman.2009.04.015
[10]	MECHERI M， LE MOULLEC Y ．Supercritical CO₂ Brayton cycles for coal-fired power plants[J]．Energy，2016，103：758-771． doi:10.1016/j.energy.2016.02.111
[11]	AL-SULAIMAN F A， ATIF M ．Performance comparison of different supercritical carbon dioxide Brayton cycles integrated with a solar power tower[J]．Energy，2015，82：61-71． doi:10.1016/j.energy.2014.12.070
[12]	MOHAMMADI Z， FALLAH M， SEYED MAHMOUDI S M ．Advanced exergy analysis of recompression supercritical CO₂ cycle[J]．Energy，2019，178：631-643． doi:10.1016/j.energy.2019.04.134
[13]	PADILLA R V， BENITO R G， STEIN W ．An exergy analysis of recompression supercritical CO₂ cycles with and without reheating[J]．Energy Procedia，2015，69：1181-1191． doi:10.1016/j.egypro.2015.03.201
[14]	SERRANO I P， LINARES J I， CANTIZANO A，et al ．Enhanced arrangement for recuperators in supercritical CO₂ Brayton power cycle for energy conversion in fusion reactors[J]．Fusion Engineering and Design，2014，89(9/10)：1909-1912． doi:10.1016/j.fusengdes.2014.03.083
[15]	廖吉香，刘兴业，郑群，等．超临界CO₂发电循环特性分析[J]．热能动力工程，2016，31(5)：40-46． doi:10.16146/j.cnki.rndlgc.2016.05.006
	LIAO J X， LIU X Y， ZHENG Q，et al ．Characteristics analysis of supercritical CO₂ power generation cycle[J]．Journal of Engineering for Thermal Energy and Power，2016，31(5)：40-46． doi:10.16146/j.cnki.rndlgc.2016.05.006
[16]	谢蓉，于健尧．基于Aspen的超临界CO₂布雷顿循环性能研究[J]．工程热物理学报，2021，42(10)：2544-2552．
	XIE R， YU J Y ．Study on the performance of supercritical CO₂ Brayton cycle based on Aspen[J]．Journal of Engineering Thermophysics，2021，42(10)：2544-2552．
[17]	梁铁波，唐鑫，钱奕然，等．微型堆超临界CO₂布雷顿循环系统构型及参数优化[J]．原子能科学技术，2023，57(9)：1706-1719．
	LIANG T B， TANG X， QIAN Y R，et al ．Configuration and parameter optimization of SCO₂ Brayton cycle system in micro reactor[J]．Atomic Energy Science and Technology，2023，57(9)：1706-1719．
[18]	刘国浩．超临界二氧化碳布雷顿循环热力分析与性能比较[D]．南昌：南昌大学，2023．
	LIU G H ．Thermodynamic analysis and performance comparison of supercritical carbon dioxide Brayton cycle[D]．Nanchang：Nanchang University，2023．
[19]	DI MAIO D V， BOCCITTO A， CARUSO G ．Supercritical carbon dioxide applications for energy conversion systems[J]．Energy Procedia，2015，82：819-824． doi:10.1016/j.egypro.2015.11.818
[20]	BATTISTI F G， CARDEMIL J M， SILVA A K DA ．A multivariable optimization of a Brayton power cycle operating with CO₂ as working fluid[J]．Energy，2016，112：908-916． doi:10.1016/j.energy.2016.06.118
[21]	KIM S， CHO Y， KIM M S，et al ．Characteristics and optimization of supercritical CO₂ recompression power cycle and the influence of pinch point temperature difference of recuperators[J]．Energy，2018，147：1216-1226． doi:10.1016/j.energy.2017.12.161
[22]	张一帆，王生鹏，刘文娟，等．超临界二氧化碳再压缩再热火力发电系统关键参数的研究[J]．动力工程学报，2016，36(10)：827-833．
	ZHANG Y F， WANG S P， LIU W J，et al ．Study on key parameters of a supercritical fossil-fired power system with CO₂ recompression and reheat cycles[J]．Journal of Chinese Society of Power Engineering，2016，36(10)：827-833．
[23]	代浩，吕丽霞．100 MW超临界二氧化碳布雷顿循环发电系统热力性能研究[J]．电力科学与工程，2021，37(12)：57-64． doi:10.3969/j.ISSN.1672-0792.2021.12.007
	DAI H， LÜ L X ．Study on thermal performance of 100 MW supercritical carbon dioxide brayton cycle power generation systems[J]．Electric Power Science and Engineering，2021，37(12)：57-64． doi:10.3969/j.ISSN.1672-0792.2021.12.007
[24]	王智，付静．再压缩超临界二氧化碳闭式布雷顿循环系统㶲分析[J]．华北电力大学学报，2018，15(4)：86-92．
	WANG Z， FU J ．Exergy analyses of recompression supercritical carbon dioxide closed Brayton cycle system[J]．Journal of North China Electric Power University，2018，15(4)：86-92．
[25]	郭嘉琪，王坤，朱含慧，等．超临界CO₂及其混合工质布雷顿循环热力学分析[J]．工程热物理学报，2017，38(4)：695-702．
	GUO J Q， WANG K， ZHU H H，et al ．Thermodynamic analysis of brayton cycles using supercritical carbon dioxide and its mixture as working fluid[J]．Journal of Engineering Thermophysics，2017，38(4)：695-702．
[26]	孙铭泽，马宁，李浩然，等．中低温超临界CO₂及其混合工质布雷顿循环热力学分析[J]．化工学报，2022，73(3)：1379-1388． doi:10.11949/0438-1157.20211432
	SUN M Z， MA N， LI H R，et al ．Thermodynamic analysis of Brayton cycle of medium and low temperature supercritical CO₂ and its mixed working medium[J]．CIESC Journal，2022，73(3)：1379-1388． doi:10.11949/0438-1157.20211432
[27]	王为术，黄志豪，赵世飞，等．超临界二氧化碳600 MW燃煤发电系统热力学性能仿真研究[J]．热力发电，2020，49(10)：101-106． doi:10.19666/j.rlfd.202006159
	WANG W S， HUANG Z H， ZHAO S F，et al ．Simulation research on thermodynamic performance of supercritical carbon dioxide 600 MW coal-fired power system[J]．Thermal Power Generation，2020，49(10)：101-106． doi:10.19666/j.rlfd.202006159
[28]	YU W， GONG Q， GAO D，et al ．Thermodynamic analysis of supercritical carbon dioxide cycle for internal combustion engine waste heat recovery[J]．Processes，2020，8(2)：216． doi:10.3390/pr8020216
[29]	WANG K， HE Y L， ZHU H H ．Integration between supercritical CO₂ Brayton cycles and molten salt solar power towers：a review and a comprehensive comparison of different cycle layouts[J]．Applied Energy，2017，195：819-836． doi:10.1016/j.apenergy.2017.03.099
[30]	何雅玲．太阳能光热发电原理、技术及数值分析[M]．北京：科学出版社，2023．
	HE Y L ．Principles，technologies and numerical methods of solar thermal power[M]．Beijing：Science Press，2023．
