基于改进模糊线性自抗扰的LCL型并网逆变器控制策略

doi:10.12096/j.2096-4528.pgt.24132

发电技术 ›› 2025, Vol. 46 ›› Issue (2): 409-420.DOI: 10.12096/j.2096-4528.pgt.24132

• 新型电力系统 • 上一篇

基于改进模糊线性自抗扰的LCL型并网逆变器控制策略

李航¹, 郭昆丽¹, 杨鹏¹, 吕家君¹, 任蓓蕾¹, 曲晨明¹, 朱婷华¹, 郝翊帆²

^1.西安工程大学电子信息学院，陕西省西安市 710600
^2.国网山西省电力公司运城供电公司，山西省运城市 044000

收稿日期:2024-07-05 修回日期:2024-10-08 出版日期:2025-04-30 发布日期:2025-04-23
作者简介:李航(2000)，男，硕士研究生，研究方向为并网逆变器控制，511793930@qq.com；
郭昆丽(1974)，女，硕士，副教授，研究方向为电力系统运行与控制、新能源发电技术，本文通信作者，705682757@qq.com；
杨鹏(1995)，男，博士，副教授，研究方向为新型电力系统的稳定性分析、控制与优化，p-yang@xpu.edu.cn。
基金资助:
国家自然科学基金项目(52407137);陕西省自然科学基础研究计划项目(2023-JC-QN-0391)

LCL Grid-Connected Inverters Control Strategy Based on Improved Fuzzy Linear Active Disturbance Rejection Control

Hang LI¹, Kunli GUO¹, Peng YANG¹, Jiajun LÜ¹, Beilei REN¹, Chenming QU¹, Tinghua ZHU¹, Yifan HAO²

^1.School of Electronics and Information, Xi’an Polytechnic University, Xi’an 710600, Shaanxi Province, China
^2.Yuncheng Power Supply Company of State Grid Shanxi Electric Power Co. , Ltd. , Yuncheng 044000, Shanxi Province, China

Received:2024-07-05 Revised:2024-10-08 Published:2025-04-30 Online:2025-04-23
Supported by:
National Natural Science Foundation of China(52407137);Natural Science Basic Research Program of Shaanxi Province(2023-JC-QN-0391)

摘要/Abstract

摘要：

目的在复杂电网环境下，LCL型并网逆变器系统的传统控制方法存在并网电流质量不佳、动态性能较差和固有谐振尖峰等缺陷，为了解决这些问题，提出了改进模糊线性自抗扰控制(Fuzzy linear active disturbance rejection control，Fuzzy-LADRC)策略。方法通过改写传统线性扩张状态观测器的误差方程，增强抗干扰性能，并将改写后的误差方程与模糊逻辑控制相结合，对控制器参数进行自适应控制。将改进Fuzzy-LADRC策略应用于LCL控制系统中的锁相环和电流环，并采用Lyapunov稳定性分析和频域分析对系统的稳定性和抗扰性进行验证。最后，通过MATLAB/Simulink仿真验证该控制策略的有效性。结果改进Fuzzy-LADRC策略在3种工况下的并网电流谐波畸变率、偏移量以及动态响应时间均优于其他控制方法，此外，该控制策略无需额外的阻尼环节，简化了控制结构。结论改进Fuzzy-LADRC策略能够有效提高系统的抗扰能力和并网电流质量，节约系统成本，具有良好的动态性能，为LCL并网逆变器的控制应用提供了新思路。

关键词: 电网, 自抗扰控制, 并网逆变器, 模糊控制, 控制策略, 稳定性, 谐波, 畸变率

Abstract:

Objectives In complex grid environments, traditional control methods for LCL grid-connected inverter systems suffer from poor grid current quality, inadequate dynamic performance, and inherent resonance peaks. To address these issues, a Fuzzy linear active disturbance rejection control (Fuzzy-LADRC) strategy is proposed. Methods The disturbance rejection capability is enhanced by modifying the error equation of the traditional linear extended state observer. The modified error equation is then combined with fuzzy logic control to achieve adaptive control of the controller parameters. The improved Fuzzy-LADRC strategy is applied to both the phase-locked loop and the current loop of the LCL control system. The system’s stability and disturbance rejection performance are verified by using Lyapunov stability analysis and frequency-domain analysis. Finally, MATLAB/Simulink simulations are conducted to validate the effectiveness of the proposed control strategy. Results The improved Fuzzy-LADRC strategy shows superior performance in terms of grid current harmonic distortion, offset, and dynamic response time under three different operating conditions compared with other control methods. Additionally, this control strategy simplifies the control structure by eliminating the need for additional damping components. Conclusions The improved Fuzzy-LADRC strategy effectively improves the system’s disturbance rejection capability and grid current quality while reducing system costs and achieving good dynamic performance. It provides a new approach for the control of LCL grid-connected inverters.

Key words: power grid, active disturbance rejection control, grid-connected inverter, fuzzy control, control strategy, stability, harmonics, distortion rate

中图分类号:

TK 011

李航, 郭昆丽, 杨鹏, 吕家君, 任蓓蕾, 曲晨明, 朱婷华, 郝翊帆. 基于改进模糊线性自抗扰的LCL型并网逆变器控制策略[J]. 发电技术, 2025, 46(2): 409-420.

Hang LI, Kunli GUO, Peng YANG, Jiajun LÜ, Beilei REN, Chenming QU, Tinghua ZHU, Yifan HAO. LCL Grid-Connected Inverters Control Strategy Based on Improved Fuzzy Linear Active Disturbance Rejection Control[J]. Power Generation Technology, 2025, 46(2): 409-420.

图/表 20

图1 三相LCL并网逆变器系统框图

Fig. 1 Block diagram of three-phase LCL grid-connected inverter system

图2 三相LCL并网逆变器系统控制框图

Fig. 2 Control block diagram of three-phase LCL grid-connected inverter system

图3 LCL传递函数与降阶传递函数Bode图

Fig. 3 Bode plots of LCL transfer function and reduced-order transfer function

图4 改进一阶LADRC框图

Fig. 4 Block diagram of improved first-order LADRC

图5 改进LADRC简化系统框图

Fig. 5 Improve LADRC and simplified system block diagram

图6 基于LCL系统的改进LADRC等效控制框图

Fig. 6 Improved LADRC equivalent control block diagram based on LCL system

图7 基于改进LADRC的锁相环等效控制框图

Fig. 7 PLL equivalent control block diagram based on improved LADRC

图8 基于LCL系统的控制框图

Fig. 8 Control block diagram based on LCL System

图9 ω0和ωc变化的LCL系统输出bode图

Fig. 9 Output bode plot of LCL system with changes in ωc and ω0

图10 ω0和ωc变化的LCL系统扰动bode图

Fig. 10 Disturbance bode plot of LCL system with changes in ωc和ω0

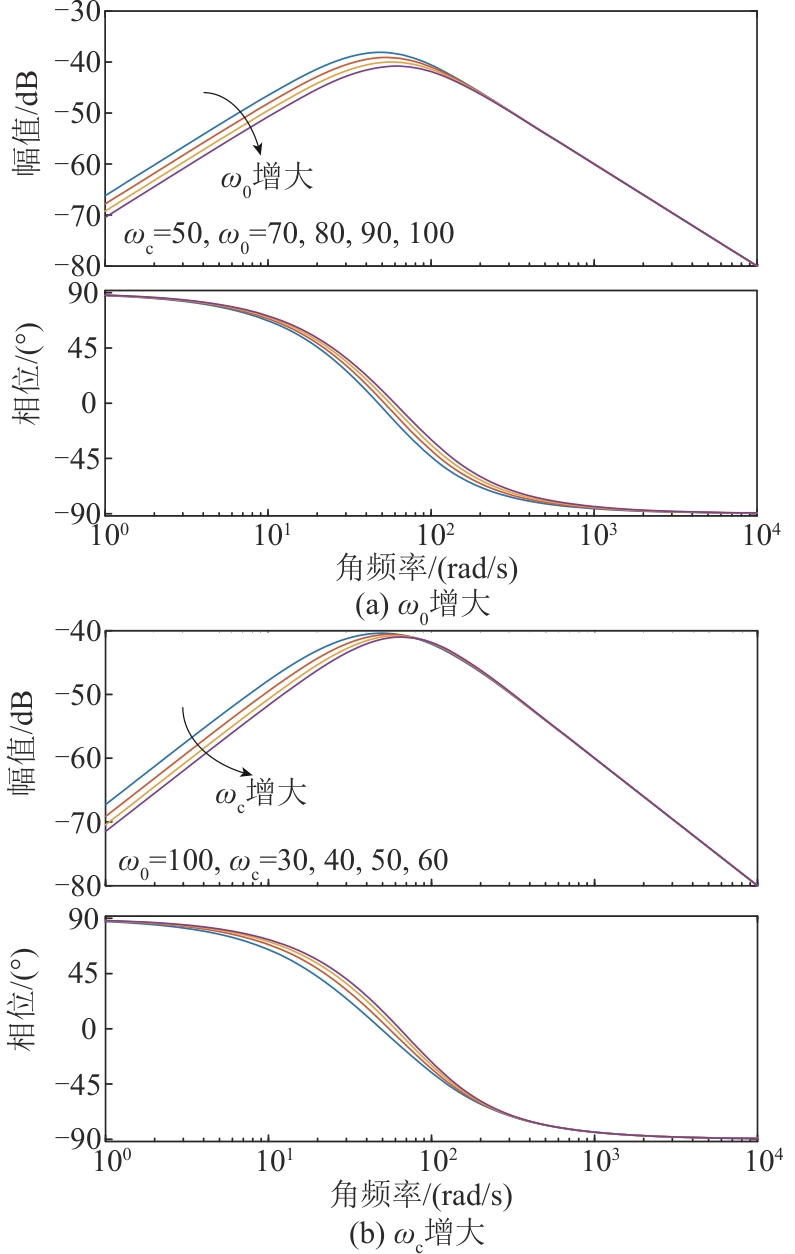

图11 ω0和ωc变化的锁相环系统扰动bode图

Fig. 11 Disturbance bode plot of PLL system with changes in ωc and ω0

图12 LCL系统改进LADRC与传统LADRC对比

Fig. 12 Comparison of improved LADRC and traditional LADRC in LCL system

图13 锁相环改进LADRC与传统LADRC扰动对比图

Fig. 13 Comparison of disturbance between improved LADRC and traditional LADRC in PLL

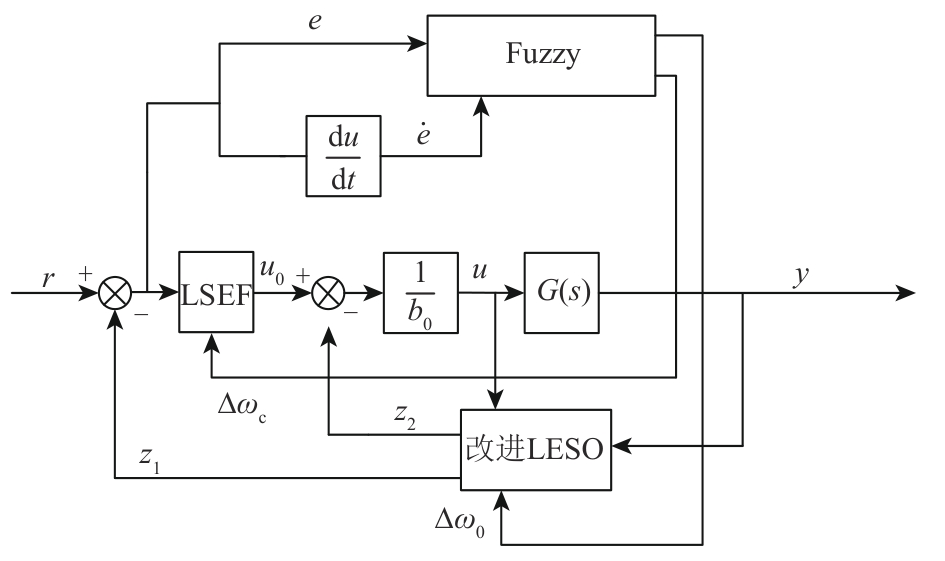

图14 改进Fuzzy-LADRC框图

Fig. 14 Block diagram of improved Fuzzy-LADRC

表1 模糊控制规则

Tab. 1 Fuzzy control rules

$e$	$e ˙$
$e$	NL	NM	NS	ZO	PS	PM	PL
NL	PL	PL	PM	PM	PS	ZO	ZO
NM	PL	PL	PM	PM	PS	ZO	ZO
NS	PM	PM	PS	PS	ZO	ZO	NS
ZO	PM	PS	PS	ZO	NS	NS	NM
PS	PS	ZO	ZO	NS	NM	NM	NM
PM	ZO	ZO	NS	NM	NM	NL	NL
PL	ZO	NS	NM	NM	NL	NL	NL

表1 模糊控制规则

Tab. 1 Fuzzy control rules

$e$	$e ˙$
$e$	NL	NM	NS	ZO	PS	PM	PL
NL	PL	PL	PM	PM	PS	ZO	ZO
NM	PL	PL	PM	PM	PS	ZO	ZO
NS	PM	PM	PS	PS	ZO	ZO	NS
ZO	PM	PS	PS	ZO	NS	NS	NM
PS	PS	ZO	ZO	NS	NM	NM	NM
PM	ZO	ZO	NS	NM	NM	NL	NL
PL	ZO	NS	NM	NM	NL	NL	NL

表2 LCL系统参数

Tab. 2 LCL system parameters

参数	数值	参数	数值
U_dc/V	800	ω₀₁	3 000
电网电压/V	220	PI参数 $k p$	0.026
L₁/mH	2	PI参数 $k i$	167
L₂/mH	0.5	有源阻尼系数	0.4
C/ $μ F$	4.7	ω_c2	50
开关频率f_sw/kHz	10	ω₀₂	100
ω_c1	2 000	$b 0$	1

表2 LCL系统参数

Tab. 2 LCL system parameters

参数	数值	参数	数值
U_dc/V	800	ω₀₁	3 000
电网电压/V	220	PI参数 $k p$	0.026
L₁/mH	2	PI参数 $k i$	167
L₂/mH	0.5	有源阻尼系数	0.4
C/ $μ F$	4.7	ω_c2	50
开关频率f_sw/kHz	10	ω₀₂	100
ω_c1	2 000	$b 0$	1

图15 电流突增时不同控制策略下的并网电流

Fig. 15 Grid-connected current of different control strategies under sudden current surge

表3 不同控制策略下的并网电流偏移量 (A)

Tab. 3 Grid-connected current offset of different control strategies

控制策略	a相	b相	c相	总和
有源阻尼+PI	2.62	21.30	7.40	31.32
一阶LADRC	4.40	5.66	6.10	16.16
改进LADRC	2.34	2.76	3.15	8.25
改进Fuzzy-LADRC	1.06	1.46	0.88	3.40

图16 电网电压跌落时不同控制策略下的并网电流、电压

Fig. 16 Grid-connected current and voltage of different control strategies during grid voltage sag

图17 注入谐波时不同控制策略下的并网电流、电压

Fig. 17 Grid-connected current and voltage of different control strategies under harmonic injection

参考文献 23

1	常继凯，舒勤，李鸿鑫，等．计及电缆分布电容的并网逆变器谐振特性与抑制[J]．电力科学与技术学报，2023，38(3)：114-123． doi:10.19781/j.issn.1673-9140.2023.03.012
	CHANG J K， SHU Q， LI H X，et al ．Resonance characteristics and suppression of grid-connected inverter system considering cable distributed capacitance[J]．Journal of Electric Power Science and Technology，2023，38(3)：114-123． doi:10.19781/j.issn.1673-9140.2023.03.012
2	方健，李辉．基于状态重构准谐振扩张状态观测器的LCL型并网逆变器电流控制策略研究[J]．发电技术，2024，45(1)：170-179． doi:10.12096/j.2096-4528.pgt.22141
	FANG J， LI H ．Research on current control strategy of the LCL-type grid-connected inverter based on state reconfiguration with quasi resonant-extended state observer[J]．Power Generation Technology，2024，45(1)：170-179． doi:10.12096/j.2096-4528.pgt.22141
3	陈伟，张岩，屠一鸣，等．LCL型并网逆变器临界无源阻尼参数设计[J]．电力建设，2022，43(1)：70-77．
	CHEN W， ZHANG Y， TU Y M，et al ．Design of critical passive damping parameters for LCL-type grid-connected inverter[J]．Electric Power Construction，2022，43(1)：70-77．
4	赵铁英，高宁，杨杰，等．基于PI控制器有源阻尼的并网逆变器自适应改进策略[J]．太阳能学报，2023，44(5)：152-161．
	ZHAO T Y， GAO N， YANG J，et al ．Adaptive improvement strategy for grid-connected inverter based on active damping of pi controllers[J]．Acta Energiae Solaris Sinica，2023，44(5)：152-161．
5	杨树德，李旺，徐佳，等．基于并网电流谐波微分的有源阻尼策略[J]．电工技术学报，2023，38(23)：6305-6317．
	YANG S D， LI W， XU J，et al ．Research on active damping strategy based on the differentiation of injected grid current harmonics[J]．Transactions of China Electrotechnical Society，2023，38(23)：6305-6317．
6	陈关旭，何国锋，董燕飞，等．基于WACC的三相光伏并网逆变器LADRC控制器设计[J]．可再生能源，2024，42(6)：789-795．
	CHEN G X， HE G F， DONG Y F，et al ．LADRC controller design of three-phase photovoltaic grid-connected inverter based on WACC[J]．Renewable Energy Resources，2024，42(6)：789-795．
7	刘春喜，田宝奇，刘志乐，等．NPC型三电平并网逆变器自适应模型预测控制[J]．电力系统及其自动化学报，2023，35(1)：143-151．
	LIU C X， TIAN B Q， LIU Z L，et al ．Adaptive model predictive control for NPC-type three-level grid-connected inverter[J]．Proceedings of the CSU-EPSA，2023，35(1)：143-151．
8	任蓓蕾，郭昆丽，蔡维正，等．基于改进线性自抗扰控制器的直驱风机次同步振荡抑制及阻抗稳定性分析[J]．发电技术，2024，45(6)：1135-1145． doi:10.12096/j.2096-4528.pgt.23076
	REN B L， GUO K L， CAI W Z，et al ．Subsynchronous oscillation suppression of direct-drive wind turbines based on improved linear active disturbance rejection control and analysis of impedance stability[J]．Power Generation Technology，2024，45(6)：1135-1145． doi:10.12096/j.2096-4528.pgt.23076
9	周雪松，尹博文．基于自抗扰控制的并网逆变器环流抑制策略[J]．电测与仪表，2024，61(9)：92-100． doi:10.19753/j.issn1001-1390.2024.09.012
	ZHOU X S， YIN B W ．Circulating current suppression strategy of grid-connected inverter based on active disturbance rejection control[J]．Electrical Measurement & Instrumentation，2024，61(9)：92-100． doi:10.19753/j.issn1001-1390.2024.09.012
10	范永胜，陈卓，郝勇生，等．基于相位补偿的过热汽温自抗扰控制[J]．电力工程技术，2024，43(3)：254-261．
	FAN Y S， CHEN Z， HAO Y S，et al ．Phase compensation based active disturbance rejection control for superheated steam temperature[J]．Electric Power Engineering Technology，2024，43(3)：254-261．
11	李世龙，李龙江，刘欣博，等．一种增强稳定性的储能变流器线性自抗扰控制参数整定方法[J]．中国电力，2024，57(10)：25-35．
	LI S L， LI L J， LIU X B，et al ．Linear active disturbance rejection control parameter tuning method for energy storage converter with enhanced stability[J]．Electric Power，2024，57(10)：25-35．
12	周雪松，郭帅朝，马幼捷，等．基于改进自抗扰的变流系统直流母线电压波动抑制策略[J]．电力系统保护与控制，2023，51(3)：68-78．
	ZHOU X S， GUO S C， MA Y J，et al ．DC bus voltage fluctuation suppression strategy of a converter system based on improved active disturbance rejection[J]．Power System Protection and Control，2023，51(3)：68-78．
13	CAI Y， HE Y， ZHOU H，et al ．Active-damping disturbance-rejection control strategy of LCL grid-connected inverter based on inverter-side-current feedback[J]．IEEE Journal of Emerging and Selected Topics in Power Electronics，2021，9(6)：7183-7198． doi:10.1109/jestpe.2020.3017678
14	石磊，周宏涛，赵元莘，等．光伏多功能并网逆变器迭代SMC+LADRC电流内环控制策略研究[J]．智慧电力，2023，51(4)：107-114．
	SHI L， ZHOU H T， ZHAO Y S，et al ．Iterative SMC+LADRC current inner loop control strategy of photovoltaic multi-function grid connected inverter[J]．Smart Power，2023，51(4)：107-114．
15	周雪松，郭帅朝，马幼婕，等．基于LADRC和准PR的三相LCL型光伏并网逆变器谐波谐振抑制策略[J]．太阳能学报，2023，44(3)：465-474．
	ZHOU X S， GUO S C， MA Y J，et al ．Harmonic resonance suppression strategy of three-phase LCL photovoltaic grid-connected inverter based on LADRC and quasi PR[J]．Acta Energiae Solaris Sinica，2023，44(3)：465-474．
16	ZHANG H， XIAN J， SHI J，et al ．High performance decoupling current control by linear extended state observer for three-phase grid-connected inverter with an LCL filter[J]．IEEE Access，2020，8：13119-13127． doi:10.1109/access.2020.2965650
17	杨林，曾江，黄仲龙．线性自抗扰技术在LCL逆变器并网电流控制及有源阻尼中的应用[J]．电网技术，2019，43(4)：1378-1386．
	YANG L， ZENG J， HUANG Z L ．Application of linear active disturbance rejection technique in grid-connected current control and active damping of LCL type inverter[J]．Power System Technology，2019，43(4)：1378-1386．
18	马幼捷，张彤，周雪松．基于模糊自适应的固态变压器逆变级改进LADRC控制[J]．电力系统及其自动化学报，2022，34(3)：123-131．
	MA Y J， ZHANG T， ZHOU X S ．Improved LADRC control for inverter stage of solid-state transformer based on fuzzy adaptive method[J]．Proceedings of the CSU-EPSA，2022，34(3)：123-131．
19	张建功，周雪松，马幼捷，等．基于Buck变换器的模糊自抗扰Hopf分岔扰动抑制策略[J]．电力系统保护与控制，2023，51(15)：12-21．
	ZHANG J G， ZHOU X S， MA Y J，et al ．Fuzzy ADRC Hopf bifurcation disturbance suppression strategy based on a Buck converter[J]．Power System Protection and Control，2023，51(15)：12-21．
20	刘勇，杨浩，马士翔，等．基于并网逆变器的级联性自抗扰控制策略[J]．控制工程，2023，30(5)：788-795．
	LIU Y， YANG H， MA S X，et al ．Cascaded linear active disturbance rejection control strategy based on grid-connected[J]．Control Engineering of China，2023，30(5)：788-795．
21	马明，廖鹏，蔡雨希，等．LCL并网逆变器的自抗扰控制策略[J]．高电压技术，2021，47(6)：2223-2231．
	MA M， LIAO P， CAI Y X，et al ．Active disturbance rejection control strategy of LCL grid-connected inverter[J]．High Voltage Engineering，2021，47(6)：2223-2231．
22	杨天翔，程志江，杨涵棣，等．基于自抗扰控制的风电并网变流器锁相环设计[J]．太阳能学报，2023，44(4)：147-155．
	YANG T X， CHENG Z J， YANG H D，et al ．Design of phase-locked loop of grid connected converter based on active disturbance rejection control[J]．Acta Energiae Solaris Sinica，2023，44(4)：147-155．
23	LIU Q， ZHANG L， QIAN Q ．Fast LADRC-type phase-locked loop with adaptive extended state observer[J]．IEEE Transactions on Industrial Electronics，2024，71(8)：8268-8278． doi:10.1109/tie.2023.3317863
