Yiwen CHEN, Jinbin ZHAO, Junzhou LI, Ling MAO, Keqing QU, Guoqing WEI
Received:
2023-03-02
Published:
2023-06-30
Online:
2023-06-30
Contact:
Jinbin ZHAO
Supported by:
摘要:
随着新能源占比逐渐提高,作为辅助新能源并网的储能技术受到广泛关注。氢储能和燃料电池技术已被我国列为战略性能源技术,并积极应用到市场和企业发展中。电解水制氢可以平抑可再生能源并网带来的波动,帮助电网削峰调频;燃料电池作为提高能源转换率的发电装置,同时具备噪音小、无污染等优势,是消纳可再生能源的有效方式之一。对现有储能技术的发展现状和优势进行对比分析,着重介绍了氢储能系统目前关键技术和研究方向,并对氢储能商业化发展进行展望。
中图分类号:
陈逸文, 赵晋斌, 李军舟, 毛玲, 屈克庆, 魏国庆. 电力低碳转型背景下氢储能的挑战与展望[J]. 发电技术, 2023, 44(3): 296-304.
Yiwen CHEN, Jinbin ZHAO, Junzhou LI, Ling MAO, Keqing QU, Guoqing WEI. Challenges and Prospects of Hydrogen Energy Storage Under the Background of Low-carbon Transformation of Power Industry[J]. Power Generation Technology, 2023, 44(3): 296-304.

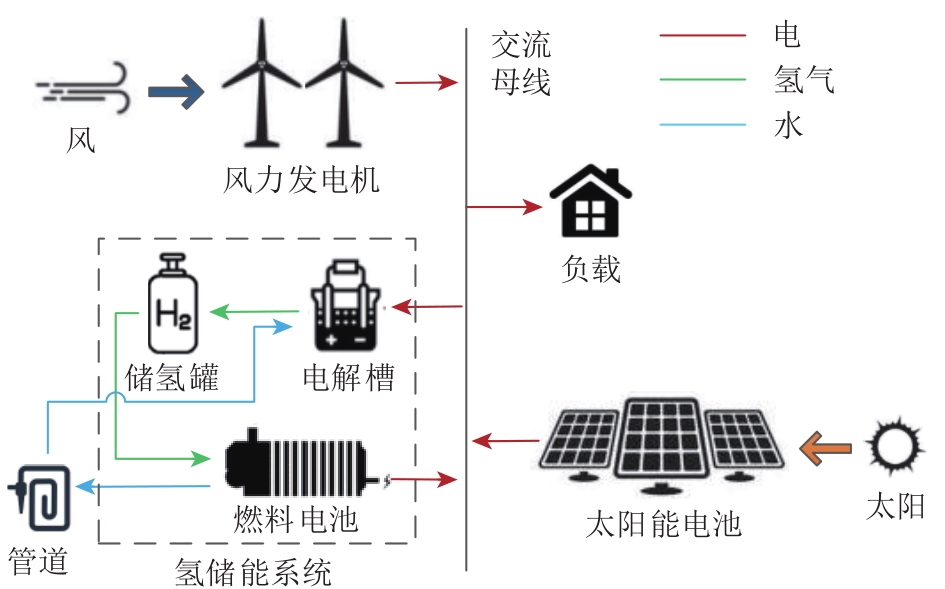

储能类型 | 储能系统 | 寿命 | 优点 | 应用范围 | 响应时间 | 效率/% |
---|---|---|---|---|---|---|
机械储能 | 抽水蓄能 | >30 a | 技术成熟、成本较低、寿命长 | 广泛应用于调峰、调频和备用电源场景 | 分钟级 | 70~75 |
电化学储能 | 锂离子电池 | 5~10 a | 能量密度大 | 辅助可再生能源备用、调峰调频 | 百毫秒级 | 85~98 |
全钒液流电池 | 5~15 a | 安全性好 | 调峰、调频、电能质量调节 | 百毫秒级 | 75~85 | |
铅蓄电池 | 3~8 a | 性价比高、技术成熟 | 削峰填谷、容量备用 | 百毫秒级 | 70~90 | |
电磁蓄能 | 超级电容器 | >30 000次 | 响应速度快、转换效率高 | 电能质量调节、削峰等 | 毫秒级 | 70~90 |
表1 储能技术类型特性比较
Tab. 1 Comparison of energy storage technology types and characteristics
储能类型 | 储能系统 | 寿命 | 优点 | 应用范围 | 响应时间 | 效率/% |
---|---|---|---|---|---|---|
机械储能 | 抽水蓄能 | >30 a | 技术成熟、成本较低、寿命长 | 广泛应用于调峰、调频和备用电源场景 | 分钟级 | 70~75 |
电化学储能 | 锂离子电池 | 5~10 a | 能量密度大 | 辅助可再生能源备用、调峰调频 | 百毫秒级 | 85~98 |
全钒液流电池 | 5~15 a | 安全性好 | 调峰、调频、电能质量调节 | 百毫秒级 | 75~85 | |
铅蓄电池 | 3~8 a | 性价比高、技术成熟 | 削峰填谷、容量备用 | 百毫秒级 | 70~90 | |
电磁蓄能 | 超级电容器 | >30 000次 | 响应速度快、转换效率高 | 电能质量调节、削峰等 | 毫秒级 | 70~90 |
制氢方法 | 优点 | 缺点 | 电解效率/% | 工作温度/℃ | 启动时间 |
---|---|---|---|---|---|
碱性电解水 | 结构简单,技术成熟,非贵金属催化剂,成本低,商业化 | 电解液泄漏污染环境,占地面积大,动态响应差,电解密度有限 | 52~82 | 60~80 | 1~10 min |
质子交换膜电解水 | 结构紧凑,电流密度高,波动能源适应性强,制氢效率高 | 成本高,商业化程度低,功耗较高,催化剂易被金属离子毒化 | 74~87 | 50~80 | 1 s~5 min |
固体氧化物电解水 | 效率高,非贵金属催化剂,转化效率高,洁净环保 | 需要额外热源,高温条件增加成本,启动慢,高温下材料易老化 | 85~100 | 700~1 000 | >20 min |
表2 电解水制氢技术对比
Tab. 2 Comparison of electrolysis hydrogen production technology
制氢方法 | 优点 | 缺点 | 电解效率/% | 工作温度/℃ | 启动时间 |
---|---|---|---|---|---|
碱性电解水 | 结构简单,技术成熟,非贵金属催化剂,成本低,商业化 | 电解液泄漏污染环境,占地面积大,动态响应差,电解密度有限 | 52~82 | 60~80 | 1~10 min |
质子交换膜电解水 | 结构紧凑,电流密度高,波动能源适应性强,制氢效率高 | 成本高,商业化程度低,功耗较高,催化剂易被金属离子毒化 | 74~87 | 50~80 | 1 s~5 min |
固体氧化物电解水 | 效率高,非贵金属催化剂,转化效率高,洁净环保 | 需要额外热源,高温条件增加成本,启动慢,高温下材料易老化 | 85~100 | 700~1 000 | >20 min |
燃料电池技术 | 优点 | 缺点 | 发电效率/% | 工作温度/℃ | 启动时间 | 功率密度/ (W/cm2) |
---|---|---|---|---|---|---|
碱性燃料电池 | 工作温度低,还原反应速度比较快,可使用非铂催化剂 | 需要电解液保持电池水平衡,废热利用受限 | 45~60 | 80~120 | 1~10 min | 0.5 |
质子交换膜 燃料电池 | 工作温度低,启动快,结构简单 | 成本高,技术难度大,商业化程度低 | 50~60 | 25~105 | 1~10 min | 1~2 |
固体氧化物 燃料电池 | 较高电流密度,高功率密度,可避免腐蚀问题 | 对温度要求较高,低温时功率较低,会出现热膨胀问题 | 50~70 | 750~1 000 | >10 h | 0.3 |
表3 燃料电池技术对比
Tab. 2 Comparison of fuel cell technologies
燃料电池技术 | 优点 | 缺点 | 发电效率/% | 工作温度/℃ | 启动时间 | 功率密度/ (W/cm2) |
---|---|---|---|---|---|---|
碱性燃料电池 | 工作温度低,还原反应速度比较快,可使用非铂催化剂 | 需要电解液保持电池水平衡,废热利用受限 | 45~60 | 80~120 | 1~10 min | 0.5 |
质子交换膜 燃料电池 | 工作温度低,启动快,结构简单 | 成本高,技术难度大,商业化程度低 | 50~60 | 25~105 | 1~10 min | 1~2 |
固体氧化物 燃料电池 | 较高电流密度,高功率密度,可避免腐蚀问题 | 对温度要求较高,低温时功率较低,会出现热膨胀问题 | 50~70 | 750~1 000 | >10 h | 0.3 |
