Power Generation Technology ›› 2026, Vol. 47 ›› Issue (2): 257-265.DOI: 10.12096/j.2096-4528.pgt.260203
• Power Generation and Environmental Protection • Previous Articles
Suhua DENG1, Zongyuan HE1, Jianhui QIU2, Yonglong YANG3, Jianping JIANG3, Bo LIU3, Yang ZHANG3, Dong GUO3
Received:2025-02-17
Revised:2025-05-16
Published:2026-04-30
Online:2026-04-21
Supported by:CLC Number:
Suhua DENG, Zongyuan HE, Jianhui QIU, Yonglong YANG, Jianping JIANG, Bo LIU, Yang ZHANG, Dong GUO. Carbon Emission Sensitivity Analysis of Coal-Fired Power Plants Based on Life Cycle Assessment[J]. Power Generation Technology, 2026, 47(2): 257-265.
| 参数 | 机组 | |||
|---|---|---|---|---|
| 1# | 2# | 3# | 4# | |
| 年耗煤量/万t | 164.20 | 163.86 | 155.33 | 128.40 |
| 年发电量/(亿kW⋅h) | 33.99 | 32.71 | 31.46 | 25.59 |
| 年供电量/(亿kW⋅h) | 32.46 | 31.06 | 29.86 | 24.28 |
| 年供热量/GJ | 631 494 | 383 791 | 798 802 | 776 411 |
| 平均厂用电率/% | 5.02 | 5.03 | 4.89 | 4.58 |
| 平均低位发热量/(MJ/kg) | 17.31 | 17.31 | 17.31 | 17.31 |
| 平均收到基碳质量分数/% | 46.45 | 46.45 | 46.45 | 46.45 |
| 平均收到基硫质量分数/% | 0.58 | 0.58 | 0.58 | 0.58 |
| 平均收到基灰分质量分数/% | 14.40 | 14.40 | 14.40 | 14.40 |
| 平均收到基氮质量分数/% | 0.70 | 0.70 | 0.70 | 0.70 |
| 燃煤铁路运输距离/km | 815 | 815 | 815 | 815 |
| 燃煤海路运输距离/km | 1 852 | 1 852 | 1 852 | 1 852 |
| 石灰石矿运输距离/km | 400 | 400 | 400 | 400 |
| 尿素运输距离/km | 133 | 133 | 133 | 133 |
| 固废运输距离/km | 4.2 | 4.2 | 4.2 | 4.2 |
| 平均飞灰含碳质量分数/% | 0.77 | 0.88 | 0.61 | 0.72 |
| 平均底渣含碳质量分数/% | 2.38 | 2.21 | 1.95 | 2.97 |
| 石灰石单耗/t | 1 365.57 | 3 320.65 | 3 022.57 | 3 151.15 |
| 年尿素耗量/t | 1 418 | 1 370 | 1 342 | 1 099 |
| 平均脱硝效率/% | 85 | 85 | 85 | 85 |
| 平均脱硫效率/% | 99.84 | 99.84 | 99.84 | 99.84 |
| 平均除尘效率/% | 90 | 90 | 90 | 90 |
Tab. 1 Carbon emission activity levels throughout the full life cycle of power plants
| 参数 | 机组 | |||
|---|---|---|---|---|
| 1# | 2# | 3# | 4# | |
| 年耗煤量/万t | 164.20 | 163.86 | 155.33 | 128.40 |
| 年发电量/(亿kW⋅h) | 33.99 | 32.71 | 31.46 | 25.59 |
| 年供电量/(亿kW⋅h) | 32.46 | 31.06 | 29.86 | 24.28 |
| 年供热量/GJ | 631 494 | 383 791 | 798 802 | 776 411 |
| 平均厂用电率/% | 5.02 | 5.03 | 4.89 | 4.58 |
| 平均低位发热量/(MJ/kg) | 17.31 | 17.31 | 17.31 | 17.31 |
| 平均收到基碳质量分数/% | 46.45 | 46.45 | 46.45 | 46.45 |
| 平均收到基硫质量分数/% | 0.58 | 0.58 | 0.58 | 0.58 |
| 平均收到基灰分质量分数/% | 14.40 | 14.40 | 14.40 | 14.40 |
| 平均收到基氮质量分数/% | 0.70 | 0.70 | 0.70 | 0.70 |
| 燃煤铁路运输距离/km | 815 | 815 | 815 | 815 |
| 燃煤海路运输距离/km | 1 852 | 1 852 | 1 852 | 1 852 |
| 石灰石矿运输距离/km | 400 | 400 | 400 | 400 |
| 尿素运输距离/km | 133 | 133 | 133 | 133 |
| 固废运输距离/km | 4.2 | 4.2 | 4.2 | 4.2 |
| 平均飞灰含碳质量分数/% | 0.77 | 0.88 | 0.61 | 0.72 |
| 平均底渣含碳质量分数/% | 2.38 | 2.21 | 1.95 | 2.97 |
| 石灰石单耗/t | 1 365.57 | 3 320.65 | 3 022.57 | 3 151.15 |
| 年尿素耗量/t | 1 418 | 1 370 | 1 342 | 1 099 |
| 平均脱硝效率/% | 85 | 85 | 85 | 85 |
| 平均脱硫效率/% | 99.84 | 99.84 | 99.84 | 99.84 |
| 平均除尘效率/% | 90 | 90 | 90 | 90 |
| 参数 | 情景1 | 情景2 | 情景3 | |
|---|---|---|---|---|
| 单位供电煤耗率/% | 11.1 | 11.1 | 8.7 | |
| 碳减排率/% | 1#机组 | 78.8 | 81.9 | 82.3 |
| 2#机组 | 79.1 | 82.1 | 82.5 | |
| 3#机组 | 78.7 | 81.8 | 82.2 | |
| 4#机组 | 78.6 | 81.8 | 82.1 | |
| 平均值 | 78.8 | 81.9 | 82.3 | |

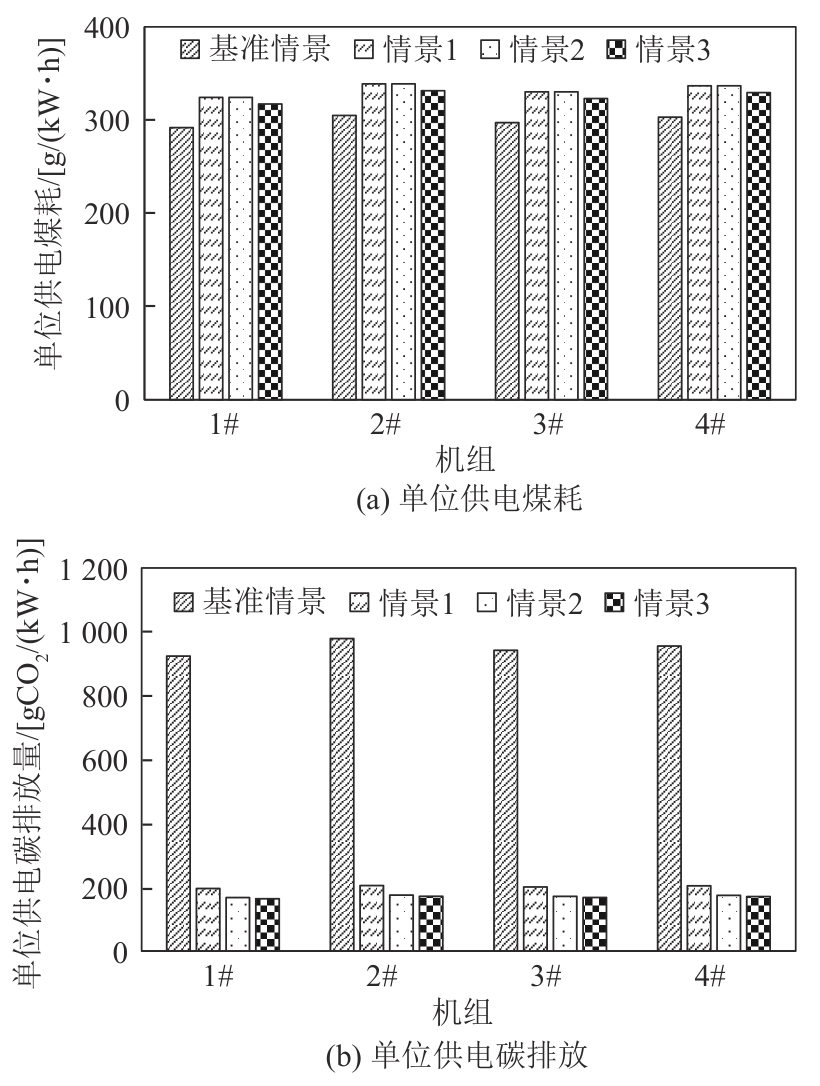

Tab. 2 Analysis of coal consumption and carbon emission reduction under different scenarios
| 参数 | 情景1 | 情景2 | 情景3 | |
|---|---|---|---|---|
| 单位供电煤耗率/% | 11.1 | 11.1 | 8.7 | |
| 碳减排率/% | 1#机组 | 78.8 | 81.9 | 82.3 |
| 2#机组 | 79.1 | 82.1 | 82.5 | |
| 3#机组 | 78.7 | 81.8 | 82.2 | |
| 4#机组 | 78.6 | 81.8 | 82.1 | |
| 平均值 | 78.8 | 81.9 | 82.3 | |
| [1] | 马楠,刘国伟,吴杰康,等 .面向碳排放的“源-储”容量配置协同优化模型[J].南方电网技术,2025,19(10):76-85. doi:10.13648/j.cnki.issn1674-0629.2025.10.008 |
| MA N, LIU G W, WU J K,et al .Collaborative optimization model for carbon emission oriented “source-storage” capacity allocation[J].Southern Power System Technology,2025,19(10):76-85. doi:10.13648/j.cnki.issn1674-0629.2025.10.008 | |
| [2] | IEA .CO2 Emissions in 2023[EB/OL].(2024-03-01)[2025-02-01].. |
| [3] | 赵俊华,白焰,王智冬 .电碳耦合视角下新型电力系统低碳运行调度的关键问题及展望[J].电力建设,2025,46(7):133-149. |
| ZHAO J H, BAI Y, WANG Z D .Key issues and prospects for low-carbon operation and scheduling of the new power system from an electricity-carbon coupling perspective[J].Electric Power Construction,2025,46(7):133-149. | |
| [4] | 张全斌,周琼芳 .基于“双碳”目标的中国火力发电技术发展路径研究[J].发电技术,2023,44(2):143-154. doi:10.12096/j.2096-4528.pgt.22092 |
| ZHANG Q B, ZHOU Q F .Research on the development path of China’s thermal power generation technology based on the goal of “carbon peak and carbon neutralization”[J].Power Generation Technology,2023,44(2):143-154. doi:10.12096/j.2096-4528.pgt.22092 | |
| [5] | 刘天蔚,边晓燕,吴珊,等 .电力系统碳排放核算综述与展望[J].电力系统保护与控制,2024,52(4):176-187. |
| LIU T W, BIAN X Y, WU S,et al .Overview and prospect of carbon emission accounting in electric power systems[J].Power System Protection and Control,2024,52(4):176-187. | |
| [6] | 单思珂,刘含笑,刘美玲,等 .我国火电行业碳足迹评估综述[J].发电技术,2024,45(4):575-589. doi:10.12096/j.2096-4528.pgt.23088 |
| SHAN S K, LIU H X, LIU M L,et al .Review of carbon footprint for thermal power industry in China[J].Power Generation Technology,2024,45(4):575-589. doi:10.12096/j.2096-4528.pgt.23088 | |
| [7] | 陈政,何耿生,尚楠 .面向碳达峰碳中和的电网碳排放因子改进计算方法[J].南方电网技术,2024,18(1):153-162. doi:10.13648/j.cnki.issn1674-0629.2024.01.016 |
| CHEN Z, HE G S, SHANG N .Improved calculation method of power grid carbon emission factor for carbon peak and carbon neutrality goals[J].Southern Power System Technology,2024,18(1):153-162. doi:10.13648/j.cnki.issn1674-0629.2024.01.016 | |
| [8] | XIAO M, LI X, ZHANG H,et al .Environmental impact assessment and remediation decision-making of a contaminated megasite:combining LCA and IO-LCA[J].Journal of Cleaner Production,2024,462:142586. doi:10.1016/j.jclepro.2024.142586 |
| [9] | 刘含笑,单思珂,魏书洲,等 .基于生命周期法的煤电碳足迹评估[J].中国电力,2024,57(7):227-237. doi:10.11930/j.issn.1004-9649.202404039 |
| LIU H X, SHAN S K, WEI S Z,et al .Life-cycle carbon footprint assessment of coal-fired power generation[J].Electric Power,2024,57(7):227-237. doi:10.11930/j.issn.1004-9649.202404039 | |
| [10] | 李可昀,张宁,赵乐,等 .输变电工程关键电力设备与材料碳排放核算方法[J].中国电力,2025,58(4):193-204. doi:10.11930/j.issn.1004-9649.202411030 |
| LI K Y, ZHANG N, ZHAO L,et al .Carbon emission accounting methods for key electric equipment and materials in power transmission and transformation projects[J].Electric Power,2025,58(4):193-204. doi:10.11930/j.issn.1004-9649.202411030 | |
| [11] | 吴文睿,于洋,张迎迎,等 .考虑生命周期碳排放与绿证-碳联合交易的能源综合服务站低碳经济调度[J].电网与清洁能源,2025,41(4):58-67. |
| WU W R, YU Y, ZHANG Y Y,et al .Low-carbon economic dispatch of the integrated energy service station considering life cycle carbon emission and green certificate-carbon joint trading[J].Power System and Clean Energy,2025,41(4):58-67. | |
| [12] | 胡彦勇,张瑞,郄晓彤,等 .全生命周期下中国煤炭资源能源碳排放效率评[J].中国环境科学,2022,42(6):2942-2954. doi:10.3969/j.issn.1000-6923.2022.06.050 |
| HU Y Y, ZHANG R, QIE X T,et al .Evaluation of China’s coal resource and energy carbon emission efficiency in the whole life cycle[J].China Environmental Science,2022,42(6):2942-2954. doi:10.3969/j.issn.1000-6923.2022.06.050 | |
| [13] | 夏德建,任玉珑,史乐峰 .中国煤电能源链的生命周期碳排放系数计量[J].统计研究,2010,27(8):82-89. doi:10.3969/j.issn.1002-4565.2010.08.012 |
| XIA D J, REN Y L, SHI L F .Measurement of life-cycle carbon equivalent emissions of coal-energy chain[J].Statistical Research,2010,27(8):82-89. doi:10.3969/j.issn.1002-4565.2010.08.012 | |
| [14] | 国家发展改革委 .中国煤炭生产企业温室气体排放核算方法与报告指南[EB/OL].(2015-06-05)[2025-02-01].. |
| National Development and Reform Commission .Guidelines for accounting methods and reporting of greenhouse gas emissions from coal production enterprises in China[EB/OL].(2015-06-05)[2025-02-01].. | |
| [15] | 杨楠,李艳霞,赵盟,等 .水泥熟料生产企业CO2直接排放核算模型的建立[J].气候变化研究进展,2021,17(1):79-87. doi:10.12006/j.issn.1673-1719.2019.281 |
| YANG N, LI Y X, ZHAO M,et al .Establishment of a CO2 direct emission accounting model for cement clinker manufacturers[J].Climate Change Research,2021,17(1):79-87. doi:10.12006/j.issn.1673-1719.2019.281 | |
| [16] | 肖志雄,李伟 .基于生命周期评价方法的石灰石矿山碳排放核算模型研究[J].采矿技术,2023,23(6):195-200. |
| XIAO Z X, LI W .Study on carbon emission accounting model of limestone mine based on life cycle assessment method[J].Mining Technology,2023,23(6):195-200. | |
| [17] | 陈舜,逯非,王效科 .中国氮磷钾肥制造温室气体排放系数的估算[J].生态学报,2015,35(19):6371-6383. doi:10.5846/stxb201402210304 |
| CHEN S, LU F, WANG X K .Estimation of greenhouse gases emission factors for China’s nitrogen,phosphate,and potash fertilizers[J].Acta Ecologica Sinica,2015,35(19):6371-6383. doi:10.5846/stxb201402210304 | |
| [18] | 田庆峰,顾英春,陈牧 .SCR脱硝装置氨消耗量的计算方法探讨[J].电力勘测设计,2010(3):42-47. doi:10.3969/j.issn.1671-9913.2010.03.011 |
| TIAN Q F, GU Y C, CHEN M .Calculation method of ammonia consumption quantity in SCR denitration device[J].Electric Power Survey & Design,2010(3):42-47. doi:10.3969/j.issn.1671-9913.2010.03.011 | |
| [19] | CAI B, LIANG S, ZHOU J,et al .China high resolution emission database (CHRED) with point emission sources,gridded emission data,and supplementary socioeconomic data[J].Resources,Conservation and Recycling,2018,129:232-239. doi:10.1016/j.resconrec.2017.10.036 |
| [20] | 吕晨,张哲,陈徐梅,等 .中国分省道路交通二氧化碳排放因子[J].中国环境科学,2021,41(7):3122-3130. doi:10.3969/j.issn.1000-6923.2021.07.014 |
| LÜ C, ZHANG Z, CHEN X M,et al .Study on CO2 emission factors of road transport in Chinese provinces[J].China Environmental Science,2021,41(7):3122-3130. doi:10.3969/j.issn.1000-6923.2021.07.014 | |
| [21] | 康勤 .考虑碳排放及能耗费用的邯黄铁路货物列车运输组织方案优化[D].石家庄:石家庄铁道大学,2023. |
| KANG Q .Optimization of freight train transportation organization scheme of Han-Huang railway considering carbon emission and energy consumption cost[D].Shijiazhuang:Shijiazhuang Tiedao University,2023. | |
| [22] | 龙芸 .燃煤电厂CO2排放计算模型与方法研究[D].重庆:重庆大学,2016. |
| LONG Y .Study on calculation model and method of CO2 emission from coal-fired power plants[D].Chongqing:Chongqing University,2016. | |
| [23] | 熊子文,王浩,李文瑞,等 .燃煤电厂运行全过程的碳排放全生命周期评价与预测[J/OL].洁净煤技术.(2024-07-11)[2025-02-01].. |
| XIONG Z W, WANG H, LI W R,et al .Life cycle assessment and prediction of carbon emissions based on machine learning in whole operation process of coal-fired power plants[J/OL].Clean Coal Technology. (2024-07-11)[2025-02-01].. | |
| [24] | 李源,马仑,方庆艳 .660 MW燃煤机组掺烧生物质能耗及碳排放特性研究[J].热能动力工程,2024,39(6):123-130. doi:10.16146/j.cnki.rndlge.2024.06.015 |
| LI Y, MA L, FANG Q Y .Research on energy consumption and carbon emission characteristics of biomass co-firing in a 660 MW coal-fired power unit[J].Journal of Engineering for Thermal Energy and Power,2024,39(6):123-130. doi:10.16146/j.cnki.rndlge.2024.06.015 | |
| [25] | 金伟,李贵弘,阮虹嘉,等 .碳中和目标下二氧化碳捕集路径及技术研究进展[J].昆明理工大学学报(自然科学版),2024,49(3):265-274. |
| JIN W, LI G H, RUAN H J,et al .Research progress on carbon dioxide capture pathways and technologies under carbon neutrality targets[J].Journal of Kunming University of Science and Technology (Natural Science),2024,49(3):265-274. | |
| [26] | 熊梓垚,付瑞岩,熊永钧,等 .微胶囊型二氧化碳捕集技术的研究进展[J].石油石化物资采购,2024(7):88-90. |
| XIONG Z Y, FU R Y, XIONG Y J,et al .Research progress of microencapsulated carbon dioxide capture technology[J].Petroleum & Petrochemical Material Procurement,2024(7):88-90. | |
| [27] | 肖江,宋世杰,刘兰兰,等 .二氧化碳捕集及封存技术探索研究:以陕煤集团榆林化学公司为例[J].煤炭科学技术,2024,52(5):316-323. doi:10.12438/cst.2023-0808 |
| XIAO J, SONG S J, LIU L L,et al .Research on carbon dioxide capture and storage technology:a case study of Shaanxi Coal Group Yulin Chemical Co.,Ltd.[J].Coal Science and Technology,2024,52(5):316-323. doi:10.12438/cst.2023-0808 | |
| [28] | AROONWILAS A, VEAWAB A .Integration of CO2 capture unit using single- and blended-amines into supercritical coal-fired power plants:implications for emission and energy management[J].International Journal of Greenhouse Gas Control,2007,1(2):143-150. doi:10.1016/s1750-5836(07)00011-4 |
| [29] | 黄斌,许世森,郜时旺,等 .华能北京热电厂CO2捕集工业试验研究[J].中国电机工程学报,2009,29(17):14-20. doi:10.3321/j.issn:0258-8013.2009.17.003 |
| HUANG B, XU S S, GAO S W,et al .Industrial test of CO2 capture in Huaneng Beijing coal-fired power station[J].Proceedings of the CSEE,2009,29(17):14-20. doi:10.3321/j.issn:0258-8013.2009.17.003 | |
| [30] | DAVISON J .Performance and costs of power plants with capture and storage of CO2 [J].Energy,2007,32(7):1163-1176. doi:10.1016/j.energy.2006.07.039 |
| [31] | HOFFMANN J W, HACKETT G A, LEWIS E G,et al .Derate mitigation options for pulverized coal power plant carbon capture retrofits[J].Energy Procedia,2017,114:6465-6477. doi:10.1016/j.egypro.2017.03.1783 |
| [32] | MÜLLER L J, KÄTELHÖN A, BACHMANN M,et al .A guideline for life cycle assessment of carbon capture and utilization[J].Frontiers in Energy Research,2020,8:15. doi:10.3389/fenrg.2020.00015 |
| [33] | VON DER ASSEN N, VOLL P, PETERS M,et al .Life cycle assessment of CO2 capture and utilization:a tutorial review[J].Chemical Society Reviews,2014,43(23):7982-7994. doi:10.1039/c3cs60373c |
