发电技术 ›› 2024, Vol. 45 ›› Issue (2): 341-352.DOI: 10.12096/j.2096-4528.pgt.22156
杨捷1, 孙哲1, 苏辛一1, 鲁刚2, 元博2
收稿日期:
2023-09-13
出版日期:
2024-04-30
发布日期:
2024-04-29
作者简介:
基金资助:
Jie YANG1, Zhe SUN1, Xinyi SU1, Gang LU2, Bo YUAN2
Received:
2023-09-13
Published:
2024-04-30
Online:
2024-04-29
Supported by:
摘要:
随着新型电力系统建设持续推进,直流微电网将成为配电网的重要组成部分。直流微电网接入交流负载时,振荡型功率会进入直流系统,影响分布式储能系统功率分配。为此,给出了储能系统功率分配综合原则,并以此提出一种无互联通信网络的功率分配方法。该方法以荷电状态作为“信息载体”,各储能单元仅需本地荷电状态(state of charge,SOC)信息即可完成自适应调整,在实现SOC均衡控制的同时,还能够让振荡型功率合理分配。此外,从等效输出阻抗的角度出发,对不同控制算法的分配效果展开了详细的分析讨论,表明了所提控制算法可以满足综合原则的要求。最后,通过实验验证了所提分布式储能控制策略的有效性。
中图分类号:
杨捷, 孙哲, 苏辛一, 鲁刚, 元博. 考虑振荡型功率的直流微电网储能系统无互联通信网络的多目标功率分配方法[J]. 发电技术, 2024, 45(2): 341-352.
Jie YANG, Zhe SUN, Xinyi SU, Gang LU, Bo YUAN. A Wireless Multi-Objective Power Sharing Method for Energy Storage System in DC Micro-Grid Considering Oscillatory-Type Power[J]. Power Generation Technology, 2024, 45(2): 341-352.
类型 | 参数 | 数值 |
---|---|---|
DC/DC变换器 | 输入电压ub/V | 25.6 |
滤波电感值Lb/μH | 210 | |
输出滤波电容Cob/μF | 960 | |
线路阻抗Rlineb/mΩ | 100 | |
DC/AC变换器 | 直流负载阻抗Rdc/Ω | 22.5 |
交流滤波电感Lf/mH | 2 | |
交流滤波电容Cf/μF | 3.3 | |
交流负载阻抗Rac/Ω | 45 | |
控制 | 直流母线额定电压urated/V | 60 |
输出交流电压有效值/V | 34 | |
传统下垂系数 | 0.1 | |
关系曲线斜率 | 100 | |
二次调节系数 | 6 | |
速率因子μ | 4 | |
开关频率f/kHz | 20 |

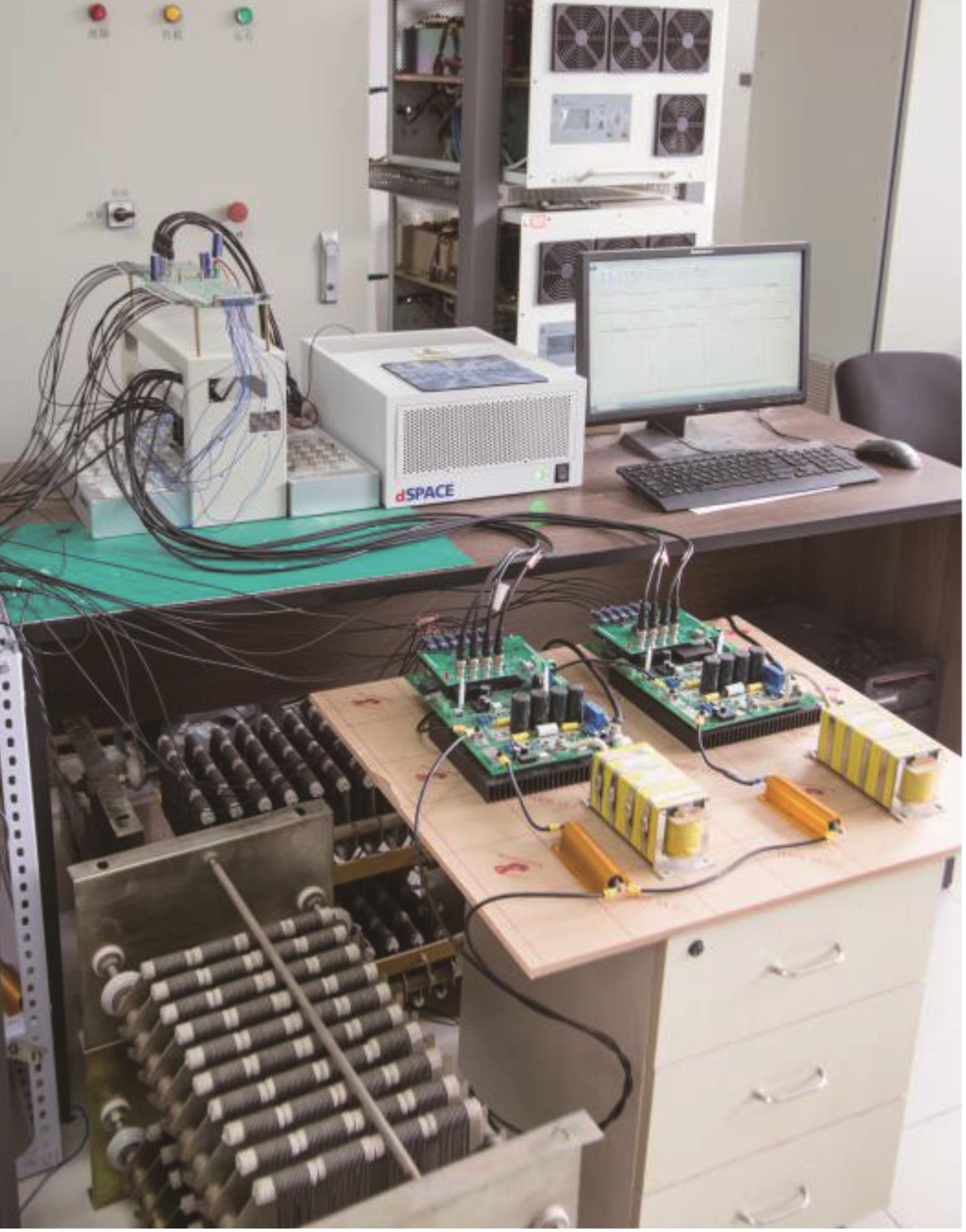

表1 直流微电网实验平台参数
Tab. 1 Parameters of DC micro-grid experiment platform
类型 | 参数 | 数值 |
---|---|---|
DC/DC变换器 | 输入电压ub/V | 25.6 |
滤波电感值Lb/μH | 210 | |
输出滤波电容Cob/μF | 960 | |
线路阻抗Rlineb/mΩ | 100 | |
DC/AC变换器 | 直流负载阻抗Rdc/Ω | 22.5 |
交流滤波电感Lf/mH | 2 | |
交流滤波电容Cf/μF | 3.3 | |
交流负载阻抗Rac/Ω | 45 | |
控制 | 直流母线额定电压urated/V | 60 |
输出交流电压有效值/V | 34 | |
传统下垂系数 | 0.1 | |
关系曲线斜率 | 100 | |
二次调节系数 | 6 | |
速率因子μ | 4 | |
开关频率f/kHz | 20 |
1 | 李建林,郭兆东,马速良,等 .新型电力系统下“源网荷储”架构与评估体系综述[J].高电压技术,2022,48(11):4330-4342. |
LI J L, GUO Z D, MA S L,et al .Overview of the “source-grid-load-storage” architecture and evaluation system under the new power system[J].High Voltage Engineering,2022,48(11):4330-4342. | |
2 | 李建林,张则栋,谭宇良,等 .碳中和目标下储能发展前景综述[J].电气时代,2022(1):61-65. |
LI J L, ZHANG Z D, TAN Y L,et al .Review on the development prospect of energy storage under the goal of carbon neutrality[J].Electric Age,2022(1):61-65. | |
3 | 张勇军,羿应棋,李立浧,等 .双碳目标驱动的新型低压配电系统技术展望[J].电力系统自动化,2022,46(22):1-12. |
ZHANG Y J, YI Y Q, LI L C,et al .Prospect of new low-voltage distribution system technology driven by carbon emission peak and carbon neutrality targets[J].Automation of Electric Power Systems,2022,46(22):1-12. | |
4 | 董旭柱,华祝虎,尚磊,等 .新型配电系统形态特征与技术展望[J].高电压技术,2021,47(9):3021-3035. |
DONG X Z, HUA Z H, SHANG L,et al .Morphological characteristics and technology prospect of new distribution system[J].High Voltage Engineering,2021,47(9):3021-3035. | |
5 | 刘瑜超,刘胜,王景芳,等 .基于分布式Raft算法的直流微电网功率协调控制[J].电力系统自动化,2022,46(19):70-77. doi:10.7500/AEPS20211021002 |
LIU Y C, LIU S, WANG J F,et al .Coordinated power control for DC microgrid based on distributed raft algorithm[J].Automation of Electric Power Systems,2022,46(19):70-77. doi:10.7500/AEPS20211021002 | |
6 | 曹善康,魏繁荣,林湘宁,等 .网侧电压跌落下计及无功支撑效能的直流微电网多目标优化策略[J].中国电机工程学报,2023,43(15):5759-5772. |
CAO S K, WEI F R, LIN X N,et al .Multi-objective optimization strategy of DC microgrid based on reactive power support efficiency during voltage sag[J].Proceedings of the CSEE,2023,43(15):5759-5772. | |
7 | 李靖,王志和,倪浩 .基于改进下垂控制的直流微网运行研究[J].发电技术,2021,42(6):765-774. doi:10.12096/j.2096-4528.pgt.21003 |
LI J, WANG Z H, NI H .Research on DC microgrid operation based on improved droop control[J].Power Generation Technology,2021,42(6):765-774. doi:10.12096/j.2096-4528.pgt.21003 | |
8 | 杨继鑫,王久和,王勉,等 .基于无源控制的光储直流微网虚拟惯性控制策略研究[J].发电技术,2021,42(5):576-584. doi:10.12096/j.2096-4528.pgt.20080 |
YANG J X, WANG J H, WANG M,et al .Research on virtual inertial control strategy of DC microgrid with photovoltaic and storage system based on passivity-based control[J].Power Generation Technology,2021,42(5):576-584. doi:10.12096/j.2096-4528.pgt.20080 | |
9 | 杨捷,金新民,杨晓亮,等 .交直流混合微网功率控制技术研究综述[J].电网技术,2017,41(1):29-39. doi:10.13335/j.1000-3673.pst.2016.0221 |
YANG J, JIN X M, YANG X L,et al .Overview on power control technologies in hybrid AC-DC microgrid[J].Power System Technology,2017,41(1):29-39. doi:10.13335/j.1000-3673.pst.2016.0221 | |
10 | 李武华,徐驰,禹红斌,等 .直流微网系统中混合储能分频协调控制策略[J].电工技术学报,2016,31(14):84-92. doi:10.3969/j.issn.1000-6753.2016.14.010 |
LI W H, XU C, YU H B,et al .Frequency dividing coordinated control strategy for hybrid energy storage system of DC micro-grid[J].Transactions of China Electrotechnical Society,2016,31(14):84-92. doi:10.3969/j.issn.1000-6753.2016.14.010 | |
11 | 孟润泉,刘家赢,文波,等 .直流微网混合储能控制及系统分层协调控制策略[J].高电压技术,2015,41(7):2186-2193. |
MENG R Q, LIU J Y, WEN B,et al .Hybrid energy storage control and system hierarchical coordinated control strategy for DC microgrids[J].High Voltage Engineering,2015,41(7):2186-2193. | |
12 | 李建标,陈建福,高滢,等 .基于RG-DDPG的直流微网能量管理策略[J].中国电力,2023,56(7):85-94. |
LI J B, CHEN J F, GAO Y,et al .Strategy for DC microgrid energy management based on RG-DDPG[J].Electric Power,2023,56(7):85-94. | |
13 | 崔俊昊,田桂珍,刘广忱,等 .独立运行直流微电网混合储能系统功率分配控制策略研究[J].电网与清洁能源,2023,39(4):129-136. doi:10.3969/j.issn.1674-3814.2023.04.017 |
CUI J H, TIAN G Z, LIU G C,et al .A study on the power distribution control strategy of hybrid energy storage system in the isolated DC microgrid[J].Power System and Clean Energy,2023,39(4):129-136. doi:10.3969/j.issn.1674-3814.2023.04.017 | |
14 | YANG J, JIN X M, WU X Z,et al .Decentralised control method for DC microgrids with improved current sharing accuracy[J].IET Generation,Transmission & Distribution,2017,11(3):696-706. doi:10.1049/iet-gtd.2016.0295 |
15 | 丁若星,董戈,吴和平,等 .混合储能系统功率分配效果的表征参数研究[J].电工技术学报,2016,31(S1):184-189. |
DING R X, DONG G, WU H P,et al .Research on power sharing results parameterization of hybrid energy storage system[J].Transactions of China Electrotechnical Society,2016,31(S1):184-189. | |
16 | LU X N, SUN K, GUERRERO J M,et al .Double-quadrant state-of-charge-based droop control method for distributed energy storage systems in autonomous DC microgrids[J].IEEE Transactions on Smart Grid,2015,6(1):147-157. doi:10.1109/tsg.2014.2352342 |
17 | LU X N, SUN K, GUERRERO J M,et al .State-of-charge balance using adaptive droop control for distributed energy storage systems in DC microgrid applications[J].IEEE Transactions on Industrial Electronics,2014,61(6):2804-2815. doi:10.1109/tie.2013.2279374 |
18 | GUAN Y, VASQUEZ J C, GUERRERO J M .Coordinated secondary control for balanced discharge rate of energy storage system in islanded AC microgrids[J].IEEE Transactions on Industry Applications,2016,52(6):5019-5028. doi:10.1109/tia.2016.2598724 |
19 | DRAGIČEVIĆ T, GUERRERO J M, VASQUEZ J C,et al .Supervisory control of an adaptive-droop regulated DC microgrid with battery management capability[J].IEEE Transactions on Power Electronics,2014,29(2):695-706. doi:10.1109/tpel.2013.2257857 |
20 | WU D, TANG F, DRAGICEVIC T,et al .A control architecture to coordinate renewable energy sources and energy storage systems in islanded microgrids[J].IEEE Transactions on Smart Grid,2015,6(3):1156-1166. doi:10.1109/tsg.2014.2377018 |
21 | 杨捷,金新民,吴学智,等 .一种适用于直流微电网的改进型电流负荷分配控制策略[J].中国电机工程学报,2016,36(1):59-67. doi:10.13334/j.0258-8013.pcsee.2016.01.006 |
YANG J, JIN X M, WU X Z,et al .An improved load current sharing control method in DC microgrids[J].Proceedings of the CSEE,2016,36(1):59-67. doi:10.13334/j.0258-8013.pcsee.2016.01.006 | |
22 | 杨捷,金新民,吴学智,等 .直流微网中混合储能系统的无互联通信网络功率分配策略[J].电工技术学报,2017,32(10):135-144. |
YANG J, JIN X M, WU X Z,et al .A wireless power sharing control strategy for hybrid energy storage systems in DC microgrids[J].Transactions of China Electrotechnical Society,2017,32(10):135-144. | |
23 | 李冰,李岚,王浩,等 .一种改善直流微电网负荷电流分配的下垂控制[J].电力科学与技术学报,2022,37(1):48-54. |
LI B, LI L, WANG H,et al .An improved droop control of load current sharing in DC microgrid[J].Journal of Electric Power Science and Technology,2022,37(1):48-54. | |
24 | 陈景文,刘嘉欣,张文倩 .基于一致性算法的直流微网多储能SOC均衡策略[J].智慧电力,2022,50(9):30-38. doi:10.3969/j.issn.1673-7598.2022.09.006 |
CHEN J W, LIU J X, ZHANG W Q .State of charge equalization strategy of multi-energy storage in DC microgrid based on consensus algorithm[J].Smart Power,2022,50(9):30-38. doi:10.3969/j.issn.1673-7598.2022.09.006 | |
25 | 陆晓楠,孙凯,黄立培,等 .直流微电网储能系统中带有母线电压跌落补偿功能的负荷功率动态分配方法[J].中国电机工程学报,2013,33(16):37-46. |
LU X N, SUN K, HUANG L P,et al .Dynamic load power sharing method with elimination of bus voltage deviation for energy storage systems in DC micro-grids[J].Proceedings of the CSEE,2013,33(16):37-46. | |
26 | 陆晓楠,孙凯,黄立培,等 .孤岛运行交流微电网中分布式储能系统改进下垂控制方法[J].电力系统自动化,2013,37(1):180-185. |
LU X N, SUN K, HUANG L P,et al .Improved droop control method in distributed energy storage systems for autonomous operation of AC microgrid[J].Automation of Electric Power Systems,2013,37(1):180-185. | |
27 | HU R, WEAVER W W .DC microgrid droop control based on battery state of charge balancing[C]//2016 IEEE Power and Energy Conference at Illinois (PECI).Urbana,IL:IEEE,2016:1-8. doi:10.1109/peci.2016.7459242 |
28 | MORSTYN T, HREDZAK B, DEMETRIADES G D,et al .Unified distributed control for DC microgrid operating modes[J].IEEE Transactions on Power Systems,2016,31(1):802-812. doi:10.1109/tpwrs.2015.2406871 |
29 | LI C, DRAGICEVIC T, PLAZA M G,et al .Multiagent based distributed control for state-of-charge balance of distributed energy storage in DC microgrids[C]//IECON 2014 - 40th Annual Conference of the IEEE Industrial Electronics Society.Dallas,TX,USA:IEEE,2015:2180-2184. doi:10.1109/iecon.2014.7048804 |
30 | LI C, DRAGICEVIC T, VASQUEZ J C,et al .Multi-agent-based distributed state of charge balancing control for distributed energy storage units in AC microgrids[C]//2015 IEEE Applied Power Electronics Conference and Exposition (APEC).Charlotte,NC,USA:IEEE,2015:2967-2973. doi:10.1109/apec.2015.7104773 |
31 | MORSTYN T, HREDZAK B, AGELIDIS V G .Distributed cooperative control of microgrid storage[J].IEEE Transactions on Power Systems,2015,30(5):2780-2789. doi:10.1109/tpwrs.2014.2363874 |
32 | 杜韦静,张军明,钱照明 .Buck变流器级联系统直流母线电压补偿控制策略[J].电工技术学报,2015,30(1):135-142. doi:10.3969/j.issn.1000-6753.2015.01.018 |
DU W J, ZHANG J M, QIAN Z M .Compensation methodology for DC bus voltage of cascaded system formed by Buck converters[J].Transactions of China Electrotechnical Society,2015,30(1):135-142. doi:10.3969/j.issn.1000-6753.2015.01.018 |
