发电技术 ›› 2023, Vol. 44 ›› Issue (1): 115-124.DOI: 10.12096/j.2096-4528.pgt.21122
印欣1, 张锋2, 阿地利·巴拉提1, 常喜强1, 陈武晖2, 李长军1, 李雪明3, 袁少伟4
收稿日期:
2021-11-15
出版日期:
2023-02-28
发布日期:
2023-03-02
作者简介:
基金资助:
Xin YIN1, Feng ZHANG2, Balati ADILI1, Xiqiang CHANG1, Wuhui CHEN2, Changjun LI1, Xueming LI3, Shaowei YUAN4
Received:
2021-11-15
Published:
2023-02-28
Online:
2023-03-02
Supported by:
摘要:
以新能源为主的新型电力系统的功率平衡面临着重要的技术挑战,以灵活负荷参与电力系统调节是提升新型电力系统有功平衡能力的重要途径。针对电热负荷季节性、时段性特征明显,新能源“极寒极热无风”“晚峰无光”,热电负荷在新型电力系统中呈现反调峰的趋势。针对这一问题,全面分析了电热负荷时空特性和用能特性,深入挖掘其调节潜力,着重分析了电热可控负荷的控制场景,并系统地给出了电热负荷的柔性调度策略,完成电热负荷的柔性控制调节,实现全时间尺度的网荷协同优化和灵活调度,从而验证了该电网电热负荷实时参与调度的可行性。
中图分类号:
印欣, 张锋, 阿地利·巴拉提, 常喜强, 陈武晖, 李长军, 李雪明, 袁少伟. 新型电力系统背景下电热负荷参与实时调度研究[J]. 发电技术, 2023, 44(1): 115-124.
Xin YIN, Feng ZHANG, Balati ADILI, Xiqiang CHANG, Wuhui CHEN, Changjun LI, Xueming LI, Shaowei YUAN. Study on Participation of Electricity-driven Thermal Load in Real-time Scheduling of New Power System[J]. Power Generation Technology, 2023, 44(1): 115-124.

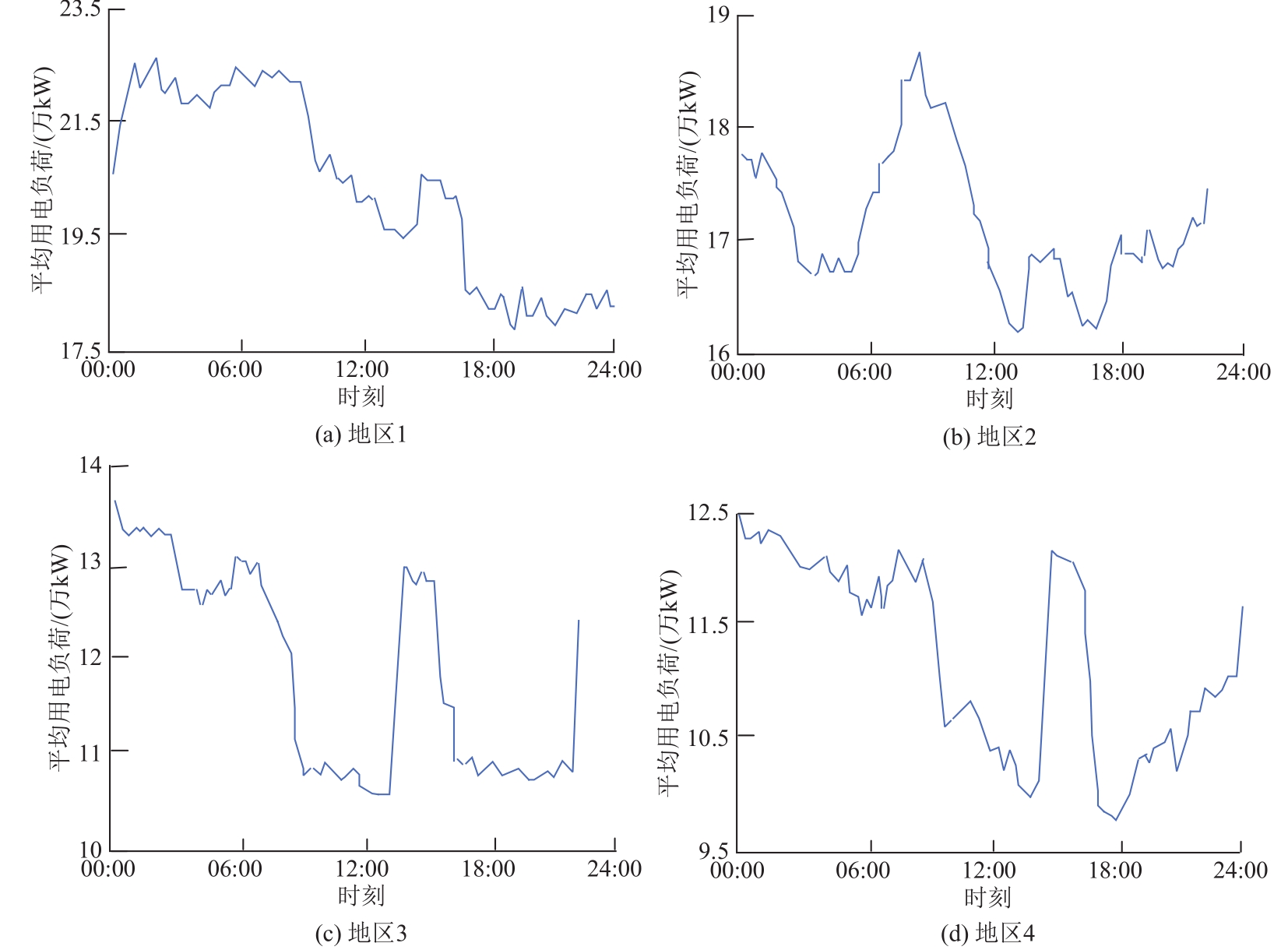

区域 | 电热负荷容量 | 分散式电热负荷 | 集中式电热负荷 | |||
---|---|---|---|---|---|---|
直热式 | 蓄热式 | 直热式 | 蓄热式 | |||
1 | 634.1 | 76.9 | 197.2 | 80.4 | 279.6 | |
2 | 656.4 | 59.9 | 342.8 | 56.8 | 196.9 |
表1 某地区电热负荷容量分布 (万kW)
Tab. 1 Capacity distribution of electric and thermal loads in a certain area
区域 | 电热负荷容量 | 分散式电热负荷 | 集中式电热负荷 | |||
---|---|---|---|---|---|---|
直热式 | 蓄热式 | 直热式 | 蓄热式 | |||
1 | 634.1 | 76.9 | 197.2 | 80.4 | 279.6 | |
2 | 656.4 | 59.9 | 342.8 | 56.8 | 196.9 |
区域 | 预计电热最大负荷 | 分散式电热最大负荷 | 集中式电热最大负荷 | |||
---|---|---|---|---|---|---|
直热式 | 蓄热式 | 直热式 | 蓄热式 | |||
1 | 412.6 | 50.9 | 126.5 | 43.2 | 192 | |
2 | 201.1 | 10.8 | 87.8 | 45.7 | 56.8 |
表2 某地区电热最大负荷分布情况 (万kW)
Tab. 2 Distribution of maximum electric and thermal loads in a certain area
区域 | 预计电热最大负荷 | 分散式电热最大负荷 | 集中式电热最大负荷 | |||
---|---|---|---|---|---|---|
直热式 | 蓄热式 | 直热式 | 蓄热式 | |||
1 | 412.6 | 50.9 | 126.5 | 43.2 | 192 | |
2 | 201.1 | 10.8 | 87.8 | 45.7 | 56.8 |
区域 | 电热负荷用户 | 分散式电热负荷用户 | 集中式电热负荷用户 | |||
---|---|---|---|---|---|---|
直热式 | 蓄热式 | 直热式 | 蓄热式 | |||
1 | 12.62 | 1.43 | 7.78 | 0.07 | 3.34 | |
2 | 81.92 | 0.17 | 79.68 | 0.19 | 1.07 |
表3 某地区电热负荷用户分布情况 (万户)
Tab. 3 User distribution of electric and thermal loads in a certain area
区域 | 电热负荷用户 | 分散式电热负荷用户 | 集中式电热负荷用户 | |||
---|---|---|---|---|---|---|
直热式 | 蓄热式 | 直热式 | 蓄热式 | |||
1 | 12.62 | 1.43 | 7.78 | 0.07 | 3.34 | |
2 | 81.92 | 0.17 | 79.68 | 0.19 | 1.07 |
地区序号 | 预计电热最大负荷 | 可调节负荷 |
---|---|---|
总计 | 631.7 | 49.7 |
1 | 103.5 | 20.7 |
2 | 25.0 | 5.0 |
3 | 28.9 | 6.3 |
4 | 34.5 | 2.5 |
5 | 0.7 | 0.0 |
6 | 11.4 | 0.0 |
7 | 28.8 | 0.0 |
8 | 76.1 | 0.0 |
9 | 10.8 | 4.4 |
10 | 92.9 | 0.0 |
11 | 25.9 | 0.0 |
12 | 50.0 | 0.0 |
13 | 55.6 | 10.8 |
14 | 1.6 | 0.0 |
15 | 68.0 | 0.0 |
表4 各地区电热可调节负荷 (万kW)
Tab. 4 Electric and thermal adjustable loads in each region
地区序号 | 预计电热最大负荷 | 可调节负荷 |
---|---|---|
总计 | 631.7 | 49.7 |
1 | 103.5 | 20.7 |
2 | 25.0 | 5.0 |
3 | 28.9 | 6.3 |
4 | 34.5 | 2.5 |
5 | 0.7 | 0.0 |
6 | 11.4 | 0.0 |
7 | 28.8 | 0.0 |
8 | 76.1 | 0.0 |
9 | 10.8 | 4.4 |
10 | 92.9 | 0.0 |
11 | 25.9 | 0.0 |
12 | 50.0 | 0.0 |
13 | 55.6 | 10.8 |
14 | 1.6 | 0.0 |
15 | 68.0 | 0.0 |
