Health Status Assessment of Lithium-ion Battery Based on Fuzzy Comprehensive Evaluation

doi:10.12096/j.2096-4528.pgt.22110

Abstract

Abstract:

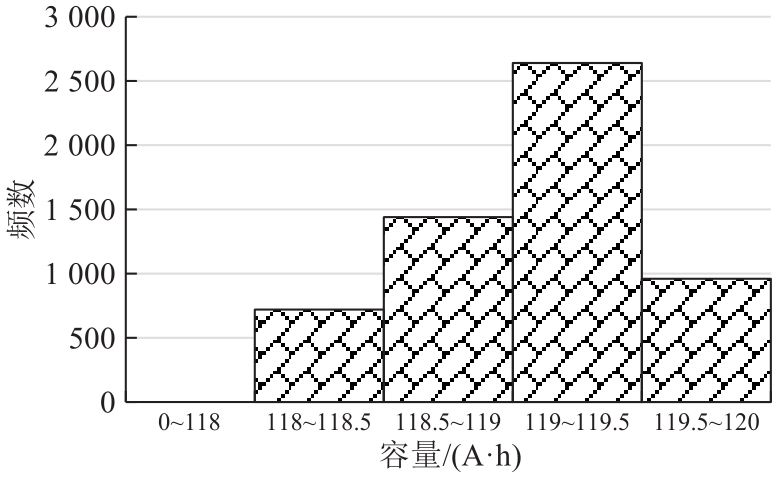

Accurate assessment of the health status of lithium-ion batteries is of great significance for the safety of energy storage systems. Based on the data of a practical lithium-ion energy storage power station, the key parameters that affect the health status of lithium-ion batteries were refined firstly. After that, the effect factors in terms of battery voltage standard score, charging capacity and coulomb efficiency were analyzed, respectively. The single factor indicators through the coefficient of variation method were weighted. Finally, the fuzzy comprehensive evaluation method to quantitatively score the overall health status of batteries was used. According to the assessment, the lithium-ion batteries in the energy storage power station are in good overall health. 91.67% of the lithium-ion batteries have a health score of more than 85, and the remaining 8.33% of the lithium-ion batteries have a health score of less than 85 but still higher than 80. In addition, it is found from the single factor assessment that the consistency of batteries is poor. It is necessary to strengthen the observation of this part of the batteries. This paper provides a quantitative and in-situ non-destructive health status assessment method for lithium-ion batteries based on operation data, which has reference significance for guiding the operation and maintenance of energy storage power stations and ensuring the safe and stable operation.

Key words: energy storage, lithium-ion battery, health status assessment, coulomb efficiency, fuzzy comprehensive evaluation

CLC Number:

TK 02

Ning WANG, Zhiqiang CHEN, Mingyi LIU, Peng ZHANG, Xi CAO, Zeyu LU, Haodong LEI, Chuanzhao CAO, Xiao YAN, Guopeng ZHOU. Health Status Assessment of Lithium-ion Battery Based on Fuzzy Comprehensive Evaluation[J]. Power Generation Technology, 2022, 43(5): 784-791.

Figures/Tables 8

References 24

1	韦荣阳，毛阗，高晗，等．储能科学与技术基于TWP-SVR的锂离子电池健康状态估计[J]．储能科学与技术，2022，11(8)：2585-2599.
	WEI R Y， MAO T， GAO H，et al ．Health state estimation of lithium ion battery based on TWP-SVR[J]．Energy Storage Science and Technology，2022，11(8)：2585-2599．
2	刘大同，宋宇晨，武巍，等．锂离子电池组健康状态估计综述[J]．仪器仪表学报，2020，41(11)：1-18．
	LIU D T， SONG Y C， WU W，et al ．Review of state of health estimation for lithium-ion battery pack[J]．Chinese Journal of Scientific Instrument，2020，41(11)：1-18．
3	李沂洹，李慷，余渐．锂离子电池荷电状态与健康状态估计方法[J]．发电技术，2021，42(5)：537-546． doi:10.12096/j.2096-4528.pgt.21074
	LI Y H， LI K， YU J ．Estimation approaches for states of charge and health of lithium-ion battery[J]．Power Generation Technology，42(5)：537-546． doi:10.12096/j.2096-4528.pgt.21074
4	吕超，张爽，朱世怀，等．储能锂离子电池包强制风冷系统热仿真分析与优化[J]．电力系统保护与控制，2021，49(12)：48-55． doi:10.19783/j.cnki.pspc.201653
	LÜ C， ZHANG S， ZHU S H，et al ．Thermal simulation analysis and optimization of forced air cooling system for energy storage lithium-ion battery pack [J]．Power System Protection and Control，2021，49(12)：48-55． doi:10.19783/j.cnki.pspc.201653
5	杨胜杰，罗冰洋，王菁，等．基于容量增量曲线峰值区间特征参数的锂离子电池健康状态估算[J]．电工技术学报，2021，36(11)： 2277-2287．
	YANG S J， LUO B Y， WANG J，et al ．State of health estimation for lithium-ion batteries based on peak region feature parameters of incremental capacity curve[J]．Transactions of China Electrotechnical Society，2021，36(11)： 2277-2287．
6	ELIANA Q， PIERCARLO M ．Electrolytes for solid-state lithium rechargeable batteries：recent advances and perspectives[J]．Chemical Society Reviews，2011，40(5)：2525-2540． doi:10.1039/c0cs00081g
7	戴海峰，周艳新，顾伟军，等．电动汽车用动力锂离子电池寿命问题研究综述[J]．电源技术，2014(10)：182-184． doi:10.3969/j.issn.1002-087X.2014.10.054
	DAI H F， ZHOU Y X， GU W J，et al ．Review on life studies of traction Li-ion batteries in electric vehicles[J]．Chinese Journal of Power Sources，2014(10)：182-184． doi:10.3969/j.issn.1002-087X.2014.10.054
8	刘栋．锂离子电池健康状态及剩余使用寿命研究[D]．长沙：湖南大学，2020．
	LIU D ． The Research of Lithium-ion Battery Health Status and Remaining Life[D]．Changsha：Hunan University，2020．
9	李佳．锂离子电池的健康状态估计研究现状分析[J]．蓄电池，2017，54(5)：232-236．
	LI J ．Status analysis of health state estimation of lithium-ion batteries[J]．Chinese LABAT Man，2017，54(5)：232-236．
10	任璞，王顺利，何明芳，等．基于内阻增加和容量衰减双重标定的锂电池健康状态评估[J]．储能科学与技术，2021，10(2)：738-743． doi:10.1002/er.7230
	REN P， WANG S L， HE M F，et al ． State of health estimation of Li-ion battery based on dual calibration of internal resistance increasing and capacity fading[J]． Energy Storage Science and Technology， 2021， 10(2)： 738-743． doi:10.1002/er.7230
11	赵显赫，耿光超，林达，等．基于数据驱动的锂离子电池健康状态评估综述[J]．浙江电力，2021，40(7)：65-73．
	ZHAO X H， GENG G C， LIN D，et al ．Review of data-driven state of health estimation for lithium-ion battery[J]．Zhejiang Electric Power，2021，40(7)：65-73．
12	李强龙，孙建瑞，赵坤，等．基于IALO-SVR的锂电池健康状态预测[J]．电子测量与仪器学报，2022，36(1)：204-211．
	LI Q L， SUN J R， ZHAO K，et al ．Prediction for the state of health of lithium-ion batteries based on IALO-SVR[J]．Journal of Electronic Measurement and Instrumentation，2022，36(1)：204-211．
13	徐佳宁．基于特征提取的退役电池健康状态快速评价方法研究[D]．哈尔滨：哈尔滨工业大学，2021．
	XU J N ．Research on fast evaluation method of health state of retired batteries based on feature extraction[D]．Harbin：Harbin Institute of Technology，2021．
14	LOVE C T， VIRJI M B V， ROCHELEAU R E，et al ．State-of-health monitoring of 18650 4S packs with a single-point impedance diagnostic[J]．Journal of Power Sources，2014，266： 512-519． doi:10.1016/j.jpowsour.2014.05.033
15	WENG C， SUN J， PENG H ．A unified open-circuit-voltage model of lithium-ion batteries for state-of-charge estimation and state-of-health monitoring[J]．Journal of power Sources，2014，258：228-237． doi:10.1016/j.jpowsour.2014.02.026
16	GUO Z， QIU X， HOU G，et al ．State of health estimation for lithium ion batteries based on charging curves[J]．Journal of Power Sources，2014，249：457-462． doi:10.1016/j.jpowsour.2013.10.114
17	华寅，许敏．基于双非线性预测滤波法的锂离子电池SOH估计[J]．电源技术，2018，42(9)：1321-1324． doi:10.3969/j.issn.1002-087X.2018.09.020
	HUA Y， XU M ．State of health estimation of lithium ion battery by dual nonlinear predictive filter for electric vehicles[J]．Chinese Journal of Power Sources，2018，42(9)：1321-1324． doi:10.3969/j.issn.1002-087X.2018.09.020
18	CEN Z， KUBIAK P ．Lithium⁃ion battery SOC/SOH adaptive estimation via simplified single particle model[J]．International Journal of Energy Research，2020，44(15)：12444-12459． doi:10.1002/er.5374
19	杨杰，解晶莹，晏莉琴，等．锂离子电池健康状态估计方法[J]．电池，2019，49(3)：247-250．
	YANG J， XIE J Y， YAN L Q，et al ．The state of health estimation methods for Li-ion battery[J]．Battery Bimonthly，2019，49(3)：247-250．
20	ZHANG L， MA Y， CHENG X，et al ．Degradation mechanism of over-charged LiCoO₂ /mesocarbon microbeads battery during shallow depth of discharge cycling[J]．Journal of Power Sources，2016，329：255-261． doi:10.1016/j.jpowsour.2016.08.030
21	陈满，李勇琦，刘邦金，等．锂电池健康状态监测与评价技术研究[J]．水电站机电技术，2015，38(S1)：77-81．
	CHEN M， LI Y Q， LIU B J，et al ．The research of Li-ion battery health monitoring and evaluation technology[J]．Mechanical & Electrical Technique of Hydropower Station，2015，38(S1)：77-81．
22	贾俊，胡晓松，邓忠伟，等．数据驱动的锂离子电池健康状态综合评分及异常电池筛选[J]．机械工程学报，2021，57(14)：141-149． doi:10.3901/jme.2021.14.141
	JIA J， HU X S， DENG Z W，et al ．Data-driven comprehensive evaluation of lithium-ion battery state of health and abnormal battery screening[J]．Chinese Journal of Mechanical Engineering，2021，57(14)：141-149． doi:10.3901/jme.2021.14.141
23	HU X S， XU L， LIN X K，et al ． Battery lifetime prognostics[J]． Joule，2020(4)：1-37． doi:10.1016/j.joule.2019.11.018
24	SONG J B， LIU Y， SONG D R ．Multi-grade fuzzy comprehensive evaluation of BOT projects service quality based on fuzzy entropy weight coefficient method[J]．Institute of Electrical and Electronics Engineers Transactions on Business Intelligence and Financial Engineering，2012，5(2)：556-560．

电池组编号	电压标准分	充电容量/(A·h)	库伦效率
1	1.00	1.00	0.98
2	0.90	0.91	1.00
3	1.00	1.00	1.00
4	1.00	1.00	0.90
5	0.81	1.00	0.93
6	1.00	0.95	1.00
7	0.87	0.95	0.98

电池组编号	电压标准分	充电容量/(A·h)	库伦效率
1	1.00	1.00	0.98
2	0.90	0.91	1.00
3	1.00	1.00	1.00
4	1.00	1.00	0.90
5	0.81	1.00	0.93
6	1.00	0.95	1.00
7	0.87	0.95	0.98

参数	电压标准分	充电容量/(A·h)	库伦效率
平均值	1.002	119.034	0.979
标准差	0.097	0.460	0.005
变异系数	0.097	0.004	0.005
权重系数	0.915	0.036	0.049

参数	电压标准分	充电容量/(A·h)	库伦效率
平均值	1.002	119.034	0.979
标准差	0.097	0.460	0.005
变异系数	0.097	0.004	0.005
权重系数	0.915	0.036	0.049

评分	建议
0~70	健康度极差，需立即维护处理
70~85	健康度较差，需重点关注
85~95	健康度良好
95~100	健康度优秀
