Analysis of Fluid-Structure Coupling Characteristics of Semi-submersible Offshore Wind Turbines

doi:10.12096/j.2096-4528.pgt.22026

Abstract

Abstract:

Based on the wind turbine data provided by the American National Renewable Energy Laboratory (NREL), the manuscript was used ProE to establish a 5 MW offshore semi-submersible wind turbine model. A two-way fluid-structure coupling simulation through simulation software was conducted. The research was based on the deformation and equivalent stress of the two-way fluid-structure coupling semi-submersible wind turbine blade during the coupling action. The shutdown state of the wind turbine and the operation of the wind turbine under different wind and wave conditions were analyzed. The analysis shows that the blade is the most important part of the wind turbine. As the speed of impeller increases, the deformation increases, and the peak value shifts to the left. The maximum equivalent stress of the wind wheel appears in the initial stage of operation. As time goes by, the stress finally stabilizes within a certain range. The degree of deformation of the blade increases with the increase of wind speed. During the operation of the wind turbine, the mooring line moves periodically with the float foundation. This research provides a reference for the safe and stable operation of offshore semi-submersible wind turbines, and at the same time provides a reference for the design of offshore semi-submersible wind turbines.

Key words: offshore wind power, semi-submersible floating wind turbine, fluid-structure coupling, deformation, equivalent stress

CLC Number:

TK 83

Danmei HU, Li ZENG, Yunhao CHEN. Analysis of Fluid-Structure Coupling Characteristics of Semi-submersible Offshore Wind Turbines[J]. Power Generation Technology, 2022, 43(2): 218-226.

Figures/Tables 16

Tab. 1 Wind turbine structure parameters

参数	数值
风轮直径/m 叶片长度/m 轮毂直径/m	126 61.5 5
额定风速/(m_·s^-1)	11.4
切入风速/(m_·s^-1)	3
切出风速/(m_·s^-1)	25
额定转速/(rad_·s^-1)	12.1
额定功率/MW	5
塔筒高度/m	90
半潜式浮式平台整体外廓/(m×m)	50×50
平台中心圆筒过渡段/m	D：1.6， H：22.8
浮筒外廓/m 浮筒斜撑尺寸/m 浮筒上下圆筒横梁尺寸/m 系泊缆尺寸/m	D：12， H：36 D：1.6， H：33.8 D：1.6， H：40 D：0.16， H：50

Fig. 1 Semi-submersible floating wind turbine structure model

Fig. 2 Overall model of computational domain

Fig. 3 Fluid-structure coupling flow chart

Fig. 4 Wind turbine structural domain grid

Fig. 5 Fluid domain grid

Fig. 6 Computational domain model

Fig. 7 Computational domain model

Tab. 2 Wind turbine speed at different wind speeds

风速/(m_·s^-1)	转速/(rad_·min^-1)	角速度/(rad_·s^-1)
4	7.18	0.752
5	7.38	0.773
6	7.94	0.831
7	8.46	0.886
8	9.16	0.959
9	10.33	1.082
10	11.43	1.197
11.4	12.10	1.267

Fig. 8 Comparison of maximum blade deformation at different speeds

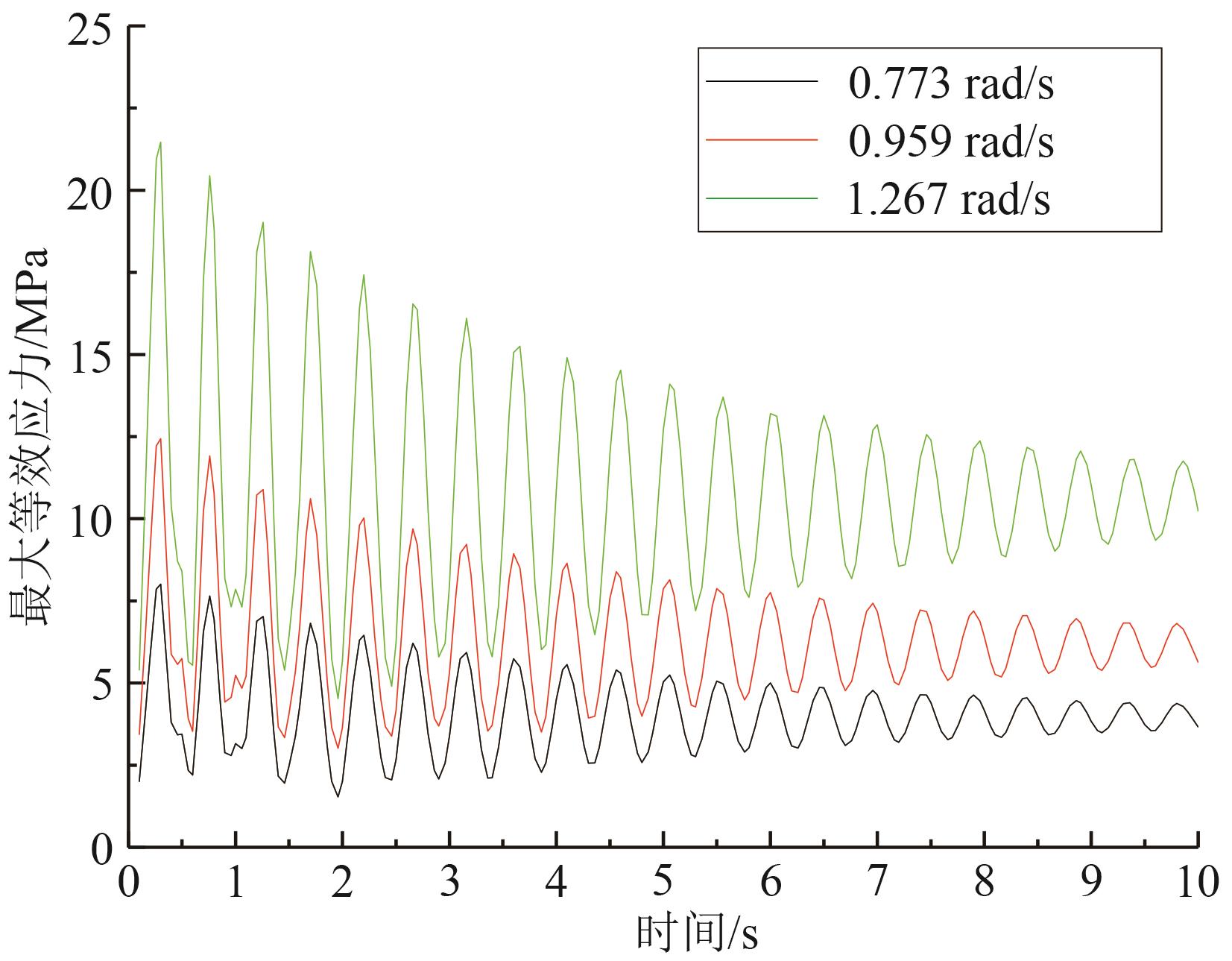

Fig. 9 Maximum equivalent stress of the wind wheel changes with time

Fig. 10 Displacement cloud diagram of wind turbine foundation

Fig. 11 Float foundation and mooring line displacement curve diagram with time

Fig. 12 Velocity vector diagram around wind turbine wheel

Fig. 13 Velocity vector diagram of fluid domain

Fig. 14 Wind turbine streamline diagram
