Study of Probe Distribution for Furnace Acoustic Tomographic Temperature Measurement

doi:10.12096/j.2096-4528.pgt.20050

Abstract

Abstract:

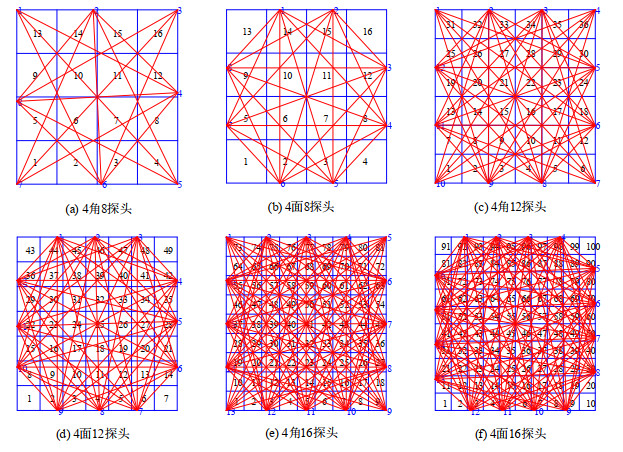

The two/three-dimensional distribution image of furnace temperature can be obtained by furnace acoustic tomographic temperature measurement system. The distribution of ultrasonic probes will directly affect its imaging accuracy. Four-side and four-corner distribution of 8, 12 and 16 ultrasonic probes were studied, respectively. Tikhonov regularization algorithm was adopted to obtain the temperature distribution under coarse mesh, and then the local weighted regression method was used to predict the temperature distribution after mesh refinement. Typical temperature field distributions reconstruction was carried out for the 6 probe distributions, and the root mean square error and correlation coefficient were analyzed. The results show that the highest accuracy can be obtained using 16 four-side distribution probes.

Key words: boiler, acoustic tomography, probe distribution, temperature field reconstruction, Tikhonov regularization

CLC Number:

TK311

Lifeng ZHANG, Yu MIAO. Study of Probe Distribution for Furnace Acoustic Tomographic Temperature Measurement[J]. Power Generation Technology, 2021, 42(3): 329-335.

Figures/Tables 10

References 19

1	LIU X R , BANSAL R C . Integrating multi-objective optimization with computational fluid dynamics to optimize boiler combustion process of a coal fired power plant[J]. Applied Energy, 2014, 130, 658- 699. DOI
2	李成志, 邵富群, 阚哲. 基于广义倒谱的相关算法在声学温度检测系统中的应用[J]. 计量学报, 2013, 34 (1): 22- 26. DOI
	LI C Z , SHAO F Q , KAN Z . Application in acoustic pyrometer system based on generalized cepstrum correlation algorithm[J]. Acta Metrological Sinica, 2013, 34 (1): 22- 26. DOI
3	LIU S , LIU S , REN T . Acoustic tomography reconstruction method for the temperature distribution measurement[J]. IEEE Transactions on Instrumentation and Measurement, 2017, 66 (8): 1936- 1945. DOI
4	HOLSTEIN P , RAABE A , MULLER R , et al. Acoustic tomography on the basis of travel-time measurement[J]. Measurement Science and Technology, 2004, 15 (7): 1420- 1428. DOI
5	杨柳. 基于环形阵列的超声层析检测方法[D]. 北京: 北京理工大学, 2015.
	YANG L. Ultrasonic tomography detection method based on ring array[D]. Beijing: Beijing Institute of Technology, 2015.
6	KONG Q , JIANG G S , LIU Y C , et al. Numerical and experimental study on temperature field reconstruction based on acoustic tomography[J]. Applied Thermal Engineering, 2020, 170, 256- 267.
7	BARTH M , RAABE A . Acoustic tomographic imaging of temperature and flow fields in air[J]. Measurement Science and Technology, 2011, 22 (3): 351- 360.
8	王善辉, 颜华, 李爽. 声学层析成像传感器布局设计[J]. 中国科技论文, 2014, 9 (4): 413- 416. DOI
	WANG S H , YAN H , LI S . Sensor layout design of acoustic computer tomography[J]. China Science Paper, 2014, 9 (4): 413- 416. DOI
9	王善辉. 声学层析成像反问题求解及温度场重建算法研究[D]. 沈阳: 沈阳工业大学, 2014.
	WANG S H. Inverse problem solving of acoustic tomography and reconstruction algorithm of temperature field[D]. Shenyang: Shenyang University of Technology, 2014.
10	刘岩. 温度场超声传感成像算法研究[J]. 现代信息科技, 2018, 2 (12): 146- 149. DOI
	LIU Y . Comparative research on the reconstruction algorithms for acoustic tomography of temperature field[J]. Modern Information Technology, 2018, 2 (12): 146- 149. DOI
11	王善辉, 颜华, 李爽. 声学CT储粮温度监测收发器阵列设计[J]. 沈阳工业大学学报, 2014, 36 (5): 561- 566.
	WANG S H , YAN H , LI S . Design for transceiver array of temperature in stored grain monitored by acoustic CT[J]. Journal of Shenyang University of Technology, 2014, 36 (5): 561- 566.
12	RUI X J , QING Y X . Two-dimensional temperature field distribution reconstruction based on least square method and radial basis function approximation[J]. Mathematical Problems in Engineering, 2017, 162, 1- 7.
13	李良梁. 影响声学法测温准确度因素的研究[D]. 沈阳: 东北大学, 2017.
	LI L L. Study on factors affecting the accuracy of temperature measurement by acoustic method[D]. Shenyang: Northeastern University, 2017.
14	李芝兰. 基于声层析成像的温度场重建技术研究[D]. 沈阳: 沈阳工业大学, 2007.
	LI Z L. Research on temperature field reconstruction based on acoustic tomography[D]. Shenyang: Shenyang University of Technology, 2007.
15	王然, 安连锁, 沈国清, 等. 基于正则化SVD算法的三维温度场声学重建[J]. 计算物理, 2015, 32 (2): 195- 201.
	WANG R , AN L S , SHEN G Q , et al. Three-dimensional temperature field reconstruction with acoustics based on regularized SVD algorithm[J]. Chinese Journal of Computational Physics, 2015, 32 (2): 195- 201.
16	陈德运, 李乐天, 胡海涛. 基于迭代Tikhonov正则化的电容层析成像图像重建[J]. 哈尔滨理工大学学报, 2009, 14 (2): 1- 3. DOI
	CHEN D Y , LI L T , HU H T . Image reconstruction algorithm based on iterated Tikhonov regularization for electrical capacitance tomography[J]. Journal of Harbin University of Science and Technology, 2009, 14 (2): 1- 3. DOI
17	刘厦, 刘石. 基于声学层析成像的炉内温度场重建算法研究[J]. 动力工程学报, 2017, 37 (7): 525- 532.
	LIU X , LIU S . Research on temperature distribution reconstruction of a boiler based on acoustic tomography[J]. Journal of Chinese Society of Power Engineering, 2017, 37 (7): 525- 532.
18	王然. 炉膛三维温度场声学测量及其在燃烧优化中的应用研究[D]. 北京: 华北电力大学, 2015.
	WANG R. Acoustic measurement of three dimensional temperature field in furnace and its application in combustion optimization[D]. Beijing: North China Electric Power University, 2015.
19	ZHOU X Z , DONG C L , ZHAO C P , et al. Temperature-field reconstruction algorithm based on reflected sigmoidal radial basis function and QR decomposition[J]. Applied Thermal Engineering, 2020, 171, 148- 157.

参数	分布方式
参数	a	b	c	d	e	f
E_mse	0.020 0	0.020 1	0.032 7	0.043 8	0.012 3	0.015 0
R_e	0.992 4	0.992 3	0.983 1	0.968 7	0.996 2	0.994 2
K_em	49.620	49.368	30.064	22.116	80.991	66.280

参数	分布方式
参数	a	b	c	d	e	f
E_mse	0.020 0	0.020 1	0.032 7	0.043 8	0.012 3	0.015 0
R_e	0.992 4	0.992 3	0.983 1	0.968 7	0.996 2	0.994 2
K_em	49.620	49.368	30.064	22.116	80.991	66.280

参数	分布方式
参数	a	b	c	d	e	f
E_mse	0.027 3	0.027 3	0.035 5	0.051 4	0.023 5	0.019 3
R_e	0.980 1	0.979 7	0.978 4	0.951 5	0.986 0	0.989 0
K_em	35.901	35.886	27.560	18.511	41.957	51.243

参数	分布方式
参数	a	b	c	d	e	f
E_mse	0.027 3	0.027 3	0.035 5	0.051 4	0.023 5	0.019 3
R_e	0.980 1	0.979 7	0.978 4	0.951 5	0.986 0	0.989 0
K_em	35.901	35.886	27.560	18.511	41.957	51.243

参数	分布方式
参数	a	b	c	d	e	f
E_mse	0.097 4	0.078 8	0.084 4	0.100 7	0.059 5	0.039 6
R_e	0.897 6	0.917 6	0.921 2	0.842 0	0.948 6	0.974 6
K_em	9.215	11.644	10.914	8.361	15.942	24.611
