硫掺杂多孔碳材料的制备及其对脱硫废水中重金属的电吸附性能研究

doi:10.12096/j.2096-4528.pgt.21128

摘要/Abstract

摘要：

燃煤电厂脱硫废水中的重金属污染对环境有巨大潜在危害，其中Pb²⁺、Cd²⁺、Cr³⁺等重金属离子的问题尤其突出。如何高效、有针对性地去除相关重金属离子，是废水净化的一个挑战。为此，通过模板法制备硫掺杂多孔碳材料，有选择性地对废水中相关重金属离子进行电吸附。结果表明：材料对于废水中的Pb²⁺、Cd²⁺、Cr³⁺在5次循环后的脱除效率仍可以达到99%左右。针对我国北部某燃煤电厂的实际脱硫废水进行电吸附实验，其中的Pb²⁺、Cd²⁺、Cr³⁺质量浓度被有效降低到小于0.2 μg/L。通过结构、形貌以及电化学等表征发现，S/PC₃具有出色的离子输送通道(介孔占比91.06%)和电化学性能(117.3 F/g，1 A/g)。同时，适宜的硫掺杂量提高了其位点活性，使得硫原子(路易斯软碱)和重金属离子(路易斯软酸)结合。

关键词: 燃煤电厂, 硫掺杂多孔碳, 烟气脱硫, 脱硫废水, 重金属, 电吸附

Abstract:

Heavy metal pollution in desulfurization wastewater from coal-fired power plants has huge potential harm to the environment. Among them, the problem of heavy metal ions such as Pb²⁺, Cd²⁺ and Cr³⁺ is particularly prominent. Efficient and targeted removal of relevant heavy metal ions is a huge challenge for wastewater purification. For this reason, sulfur-doped porous carbon materials were prepared by template method to selectively remove heavy metal ions from wastewater with electro-adsorption. The results show that the removal efficiency of Pb²⁺, Cd²⁺ and Cr³⁺ in wastewater can still reach 99% after 5 cycles. The electric adsorption experiment was carried out for the actual desulfurization wastewater from a coal-fired power plant in northern China, the mass concentrations of Pb²⁺, Cd²⁺ and Cr³⁺ could be effectively reduced to less than 0.2 μg/L. Through structural, morphological and electrochemical characteri-zation, it is found that S/PC₃ has excellent ion transport channels (mesoporous ratio is 91.06%) and electrochemical performance (117.3 F/g, 1 A/g). At the same time, the appropriate sulfur doping amount improves the site activity of sulfur-doped carbon materials, and makes the sulfur atoms (Lewis soft base) with heavy metal ions (Lewis soft acid) combine.

Key words: coal-fired power plant, sulfur-doped porous carbon, flue gas desulfurization, desulfurization wastewater, heavy metal, electro-adsorption

中图分类号:

TK 09

尹桃柱, 张永生, 汪涛, 王家伟. 硫掺杂多孔碳材料的制备及其对脱硫废水中重金属的电吸附性能研究[J]. 发电技术, 2023, 44(3): 382-391.

Taozhu YIN, Yongsheng ZHANG, Tao WANG, Jiawei WANG. Preparation of Sulfur-doped Porous Carbon and Its Electro-adsorption Performance for Heavy Metals in Desulfurization Wastewater[J]. Power Generation Technology, 2023, 44(3): 382-391.

图/表 7

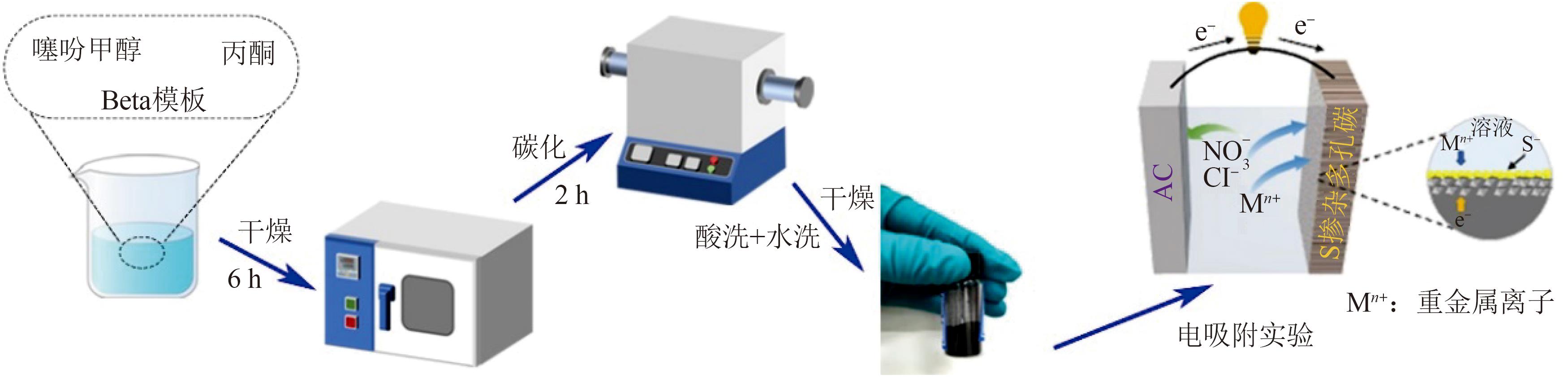

图1 硫掺杂多孔碳合成以及电吸附实验示意图

Fig. 1 Schematic diagram of sulfur-doped porous carbon synthesis and electro-adsorption experiment

图2 电容去离子模块和各部分组成示意图

Fig. 2 Schematic diagram of capacitive deionization module and its components

图3 材料的电化学性能

Fig. 3 Electrochemical properties of materials

图4 S/PC3电极对废水中重金属离子的电吸附性能

Fig. 4 Electro-adsorption performance of S/PC3 electrode for heavy metal ions in wastewater

图5 S/PC1, S/PC2, S/PC3和S/PC4材料在不同放大倍数下的SEM图

Fig. 5 SEM images of S/PC1, S/PC2, S/PC3 and S/PC4 materials under different magnifications

图6 不同材料的N2吸附-脱附及孔径分布曲线

Fig. 6 N2 adsorption-desorption and pore size distribution curves of different materials

图7 材料的热分析曲线

Fig. 7 Thermal analysis curves of materials

参考文献 23

1	蒋楠，厉雄峰，葛春亮，等．脱硫吸收塔深度除尘气液两相流数值模拟研究[J]．浙江电力，2021，40(6)：103-108． doi:10.19585/j.zjdl.202106016
	JIANG N， LI X F， GE C L，et al ．Numerical simulation on gas-liquid two-phase flow in deep dust removal of desulphurization absorption tower[J]．Zhejiang Electric Power，2021，40(6)：103-108． doi:10.19585/j.zjdl.202106016
2	张双平，陈伟雄，贾西部，等．脱硫塔除雾器安装高度对烟气携液量影响的模拟研究[J]．发电技术，2021，42(2)：247-253． doi:10.12096/j.2096-4528.pgt.20039
	ZHANG S P， CHEN W X， JIA X B，et al ．Simulation study on influence of installation height of mist eliminator on liquid holdup of flue gas in desulfurization tower[J]．Power Generation Technology，2021，42(2)：247-253． doi:10.12096/j.2096-4528.pgt.20039
3	陈彪，陈慧，孙青，等．燃煤电厂脱硫废水零排放技术研究进展[J]．当代化工，2021，50(4)：953-957． doi:10.3969/j.issn.1671-0460.2021.04.047
	CHEN B， CHEN H， SUN Q，et al ．Research progress in the zero-discharge treatment technology for desulfurization wastewater from coal-fired power plants[J]．Contemporary Chemical Industry，2021，50(4)：953-957． doi:10.3969/j.issn.1671-0460.2021.04.047
4	张宗和．燃煤电厂脱硫废水重金属处理技术研究进展[J]．净水技术，2019，38(S1)：127-132． doi:10.15890/j.cnki.jsjs.2019.s1.034
	ZHANG Z H ．Research progress of heavy metal treatment technology for desulfurization wastewater from coal-fired power plants[J]．Water Purification Technology，2019，38(S1)：127-132． doi:10.15890/j.cnki.jsjs.2019.s1.034
5	韩卫博，卞双，汪涛，等．燃煤电厂脱硫废水及污泥中重金属污染物控制研究进展[J]．发电技术，2020，41(5)：497-509． doi:10.12096/j.2096-4528.pgt.20064
	HAN W B， BIAN S， WANG T，et al ．Research progress in the control of heavy metal pollutants in desulfurization wastewater and sludge from coal-fired power plants[J]．Power Generation Technology，2020，41(5)：497-509． doi:10.12096/j.2096-4528.pgt.20064
6	THOMSON B， YOUNAN J C， CHWIRKA J ．Anaerobic membrane bioreactor (AnMBR) technology for FGD wastewater treatment[J]．Proceedings of the Water Environment Federation，2014(19)：2603-2615． doi:10.2175/193864714815942846
7	FU F， WANG Q ．Removal of heavy metal ions from wastewaters：a review[J]．Journal of environmental management，2011，92(3)：407-418． doi:10.1016/j.jenvman.2010.11.011
8	BOLISETTY S， PEYDAYESH M， MEZZENGA R ．Sustainable technologies for water purification from heavy metals：review and analysis[J]．Chemical Society Reviews，2019，48(2)：463-487． doi:10.1039/c8cs00493e
9	LEE H J， SARFERT F， STRATHMANN H，et al ．Designing of an electrodialysis desalination plant[J]．Desalination，2002，142(3)：267-286． doi:10.1016/s0011-9164(02)00208-4
10	GUYES E N， MALKA T， SUSS M E ．Enhancing the ion-size-based selectivity of capacitive deionization electrodes[J]．Environmental Science & Technology，2019，53(14)：8447-8454． doi:10.1021/acs.est.8b06954
11	KANG J S， KIM S， CHUNG D Y，et al ．Rapid inversion of surface charges in heteroatom-doped porous carbon：a route to robust electrochemical desalination[J]．Advanced Functional Materials，2020，30(9)：1909387． doi:10.1002/adfm.201909387
12	LI B， ZHENG T， RAN S，et al ．Performance recovery in degraded carbon-based electrodes for capacitive deionization[J]．Environmental Science & Technology，2019，54(3)：1848-1856． doi:10.1021/acs.est.9b04749
13	王森，易佩，袁娇娇．CDI及其在去除水中重金属离子方面的研究进展[J]．应用化工，2021，50(9)：2562-2566． doi:10.3969/j.issn.1671-3206.2021.09.049
	WANG S， YI P， YUAN J J ．CDI and its research progress in removing heavy metal ions from water[J]．Applied Chemical Industry，2021，50(9)：2562-2566． doi:10.3969/j.issn.1671-3206.2021.09.049
14	秦红梅，岳鲁超，米杰．超级电容器电极材料的研究进展[J]．太原科技大学学报，2018，39(6)：435-442． doi:10.3969/j.issn.1673-2057.2018.06.005
	QIN H M， YUE L C， MI J ．Research processes electrode for supercapacitor[J]．Journal of Taiyuan University of Technology，2018，39(6)：435-442． doi:10.3969/j.issn.1673-2057.2018.06.005
15	CHENG Y， HAO Z， HAO C，et al ．A review of modification of carbon electrode material in capacitive deionization[J]．RSC Advances，2019，9(42)：24401-24419． doi:10.1039/c9ra04426d
16	CHEN Z， ZHANG H， WU C，et al ．A study of the effect of carbon characteristics on capacitive deionization (CDI) performance[J]．Desalination，2018，433：68-74． doi:10.1016/j.desal.2017.11.036
17	李雪芹，常琳，赵慎龙，等．基于碳材料的超级电容器电极材料的研究[J]．物理化学学报，2017，33(1)：130-148． doi:10.3866/PKU.WHXB201609012
	LI X Q， CHANG L， ZHAO S L，et al ．Research on carbon-based electrode materials for supercapacitors[J]．Acta Physico Chimica Sinica，2017，33(1)：130-148． doi:10.3866/PKU.WHXB201609012
18	魏少鑫，金鹰，王瑾，等．电池型电容器技术发展趋势展望[J]．发电技术，2022，43(5)：748-759． doi:10.12096/j.2096-4528.pgt.22115
	WEI S X， JIN Y， WANG J，et al ．Prospect for development trend of battery-capacitor technology[J]．Power Generation Technology，2022，43(5)：748-759． doi:10.12096/j.2096-4528.pgt.22115
19	SONG X， FANG D， HUO S，et al ．3D ordered honeycomb-like nitrogen-doped micro-mesoporous carbon for brackish water desalination using capacitive deionization[J]．Environmental Science：Nano，2021，8：2191-2203． doi:10.1039/d1en00276g
20	MUN Y， LEE S， KIM K，et al ．Versatile strategy for tuning ORR activity of a single Fe-N₄ site by controlling electron-withdrawing/donating properties of a carbon plane[J]．Journal of the American Chemical Society，2019，141(15)：6254-6262． doi:10.1021/jacs.8b13543
21	LIANG J， JIAO Y， JARONIEC M，et al ．Sulfur and nitrogen dual-doped mesoporous graphene electro-catalyst for oxygen reduction with synergistically enhanced performance[J]．Angewandte Chemie International Edition，2012，51(46)：11496-11500． doi:10.1002/anie.201206720
22	QI C， MA X， NING G，et al ．Aqueous slurry of S-doped carbon nanotubes as conductive additive for lithium ion batteries[J]．Carbon，2015，92：245-253． doi:10.1016/j.carbon.2015.04.028
23	AI K， RUAN C， SHEN M，et al ．MoS₂ nanosheets with widened interlayer spacing for high-efficiency removal of mercury in aquatic systems[J]．Advanced Functional Materials，2016，26(30)：5542-5549． doi:10.1002/adfm.201601338
