Research on Virtual Inertial Control Strategy of DC Microgrid With Photovoltaic and Storage System Based on Passivity-based Control

doi:10.12096/j.2096-4528.pgt.20080

Abstract

Abstract:

In order to overcome the susceptibility of DC microgrid with photovoltaic and storage system (DMPSS) to power fluctuations and load disturbances, a VDCM+PBC strategy was formed. That is, in the control of energy storage converter, a passivity-based control (PBC) was adopted in current-loop, and a virtual DC machine (VDCM) control strategy was introduced in voltage-loop. Simulation results show that, compared with the VDCM+PI strategy (i. e., the voltage-loop is VDCM control and the current-loop is PI control), the VDCM+PBC strategy can reduce the bus voltage fluctuations when the load and photovoltaic output power changes. The improved stability of DC bus voltage verifies the feasibility of the proposed VDCM+PBC strategy.

Key words: DC microgrid with photovoltaic and storage system (DMPSS), passivity-based control, virtual DC machine control (VDCM), fluctuation of DC bus voltage

CLC Number:

TK01
TM76

Jixin YANG, Jiuhe WANG, Mian WANG, Zhenye WANG. Research on Virtual Inertial Control Strategy of DC Microgrid With Photovoltaic and Storage System Based on Passivity-based Control[J]. Power Generation Technology, 2021, 42(5): 576-584.

Figures/Tables 15

Fig.1 Topology of DMPSS

Fig.2 Equivalent topology of bidirectional DC-DC converter

Fig.3 Small signal equivalent circuit of bidirectional DC-DC converter

Fig.4 Small signal model of current loop

Fig.5 Unit step response of ΔiL

Fig.6 DC machine model

Fig.7 Block diagram of VDCM contro

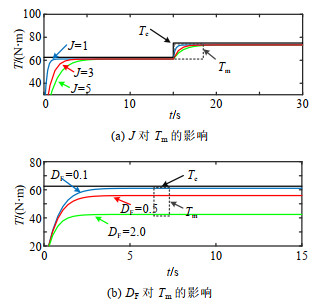

Fig.8 Impacts of J and DF on Tm

Fig.9 Block diagram of DMPSS control

Tab. 1 Parameters of simulation

参数	数值	参数	数值
v_ba/V	140	ω_n/(rad/s)	80
L_ba/mH	2	r/Ω	1
C₁/μF	1 100	阻尼系数D_F	5
r_b1	10	开关频率f_s/kHz	10

Fig.10 Simulation results when the load step-changes

Fig.11 Simulation results of vbus under different J and load

Fig.12 Simulation results when the photovoltaic output power step-changes

Fig.13 Simulation results of vbus under different J and output power

Tab. 2 Index comparison of dynamic response of DC bus voltage

条件	指标	VDCM+PBC	VDCM+PI
负载变化	Δv_bus1, Δv_bus2/V	18.6, 26.6	23.5, 34.0
负载变化	t_r1, t_r2/s	0.35, 0.40	0.25, 0.26
光伏输出	Δv_bus1, Δv_bus2/V	47.6, 25.2	62.0, 33.8
功率变化	t_r1, t_r2/s	0.45, 0.42	0.26, 0.28
