准东煤灰的动态沉积与脱落特性数值模拟研究

doi:10.12096/j.2096-4528.pgt.24220

发电技术 ›› 2025, Vol. 46 ›› Issue (4): 829-838.DOI: 10.12096/j.2096-4528.pgt.24220

准东煤灰的动态沉积与脱落特性数值模拟研究

郭前鑫¹, 李建波², 王虎¹, 梁银堂², 韩新建¹, 阮雄伟², 卢啸风²

^1.国家能源集团国神公司技术支持中心，陕西省西安市 710000
^2.低品位能源利用技术及系统教育部重点实验室(重庆大学)，重庆市沙坪坝区 400044

收稿日期:2024-10-16 修回日期:2025-01-03 出版日期:2025-08-31 发布日期:2025-08-21
通讯作者: 李建波
作者简介:郭前鑫(1970)，男，高级工程师，主要研究方向为电力工程技术开发和管理、煤炭高效清洁低碳利用等，11172400@ceic.com；
李建波(1989)，男，博士，副教授，主要研究方向为循环流化床燃烧技术、高碱煤的清洁高效利用和低碳(生物质)及零碳(氢/氨)燃料的燃烧利用等，本文通信作者，jianbo.li@cqu.edu.cn；
卢啸风(1962)，男，博士，教授，主要从事洁净煤燃烧技术及工程应用研究和烟气脱硫、脱硝技术及工程应用研究，xfluke@cqu.edu.cn。
基金资助:
国家自然科学基金项目(52176101)

Study on Numerical Simulation of Dynamic Deposition and Shedding Characteristics of Zhundong Coal Ash

Qianxin GUO¹, Jianbo LI², Hu WANG¹, Yintang LIANG², Xinjian HAN¹, Xiongwei RUAN², Xiaofeng LU²

^1.Guoshen Technical Support Center, CHN ENERGY Investment Group Co. , Ltd. , Xi’an 710000, Shaanxi Province, China
^2.Key Laboratory of Low-Grade Energy Utilization Technology and System (Chongqing University), Ministry of Education, Shapingba District, Chongqing 400044, China

Received:2024-10-16 Revised:2025-01-03 Published:2025-08-31 Online:2025-08-21
Contact: Jianbo LI
Supported by:
National Natural Science Foundation of China(52176101)

摘要/Abstract

摘要：

目的电站锅炉在燃用准东煤时会出现严重的受热面沾污结渣问题，为此，对准东煤灰在受热面上的沉积和脱落特性进行了研究。方法建立了基于颗粒黏附能的沉积灰侵蚀模型，对准东煤灰在单管上的动态沉积和脱落过程进行了数值模拟研究。结果耦合侵蚀机理的模型模拟结果与实验结果之间的误差仅为3.3%，展现出较高的精确度。此外，沉积灰的脱落速率呈先增大后趋于平缓的趋势，但在所模拟的时间范围内仅能使25%的沉积灰脱落。与此同时，沉积灰的累积使受热面的传热损耗速率逐渐增大，6 h时间段内的平均传热损耗速率为1 h时间段的1.76倍。另外，6 h沉积灰的黏附能为1 h的6.11倍，相应的吹灰出口空气质量流率需要提高1.85倍才能有望清除全部的积灰。结论研究结果加深了对准东煤灰动态沉积和脱落过程的认识，为工业上的吹灰优化提供了重要研究数据和理论支撑。

关键词: 煤电, 准东煤, 积灰, 侵蚀脱落, 平均黏附能, 数值模拟, 碱金属, 吹灰

Abstract:

Objectives Power plant boilers often experience severe fouling and slagging issues on the heating surfaces when burning Zhundong coal. Therefore, the deposition and shedding characteristics of Zhundong coal ash on the heating surface were studied. Methods A deposited ash erosion model based on particle adhesion energy is established, and numerical simulations are then conducted to examine the dynamic deposition and shedding processes of Zhundong coal ash on a single tube. Results The model incorporating the coupled erosion mechanisms has a deviation of only 3.3% compared to the experimental results, demonstrating high accuracy. Besides, the shedding rate of the deposited ash increases initially but then levels off. However, within the simulated timeframe, only 25% of the deposited ash can be removed. In addition, the accumulation of deposited ash leads to a gradual increase in the heat transfer loss rate of the heating surface, with the average heat transfer loss rate during a 6-hour period being 1.76 times that of a 1-hour period. Furthermore, the adhesion energy of the deposited ash after 6 hours is 6.11 times that after 1 hour, and the corresponding mass flow rate of air at the soot-blowing outlet needs to be increased by 1.85 times to effectively remove all the deposited ash. Conclusions These findings enhance the understanding of the dynamic deposition and shedding processes of Zhundong coal ash and offer important research data and theoretical support for optimizing soot-blowing operations in industrial applications.

Key words: coal-fired electricity, Zhundong coal, ash deposition, erosion and shedding, average adhesion energy, numerical simulation, alkali metal, soot blowing

中图分类号:

TK 16

郭前鑫, 李建波, 王虎, 梁银堂, 韩新建, 阮雄伟, 卢啸风. 准东煤灰的动态沉积与脱落特性数值模拟研究[J]. 发电技术, 2025, 46(4): 829-838.

Qianxin GUO, Jianbo LI, Hu WANG, Yintang LIANG, Xinjian HAN, Xiongwei RUAN, Xiaofeng LU. Study on Numerical Simulation of Dynamic Deposition and Shedding Characteristics of Zhundong Coal Ash[J]. Power Generation Technology, 2025, 46(4): 829-838.

图/表 10

表1 准东煤的工业分析、元素分析以及煤灰化学成分 (%)

Tab. 1 Proximate analysis and ultimate analysis of Zhundong coal and its ash chemical composition

化学成分分析(干燥基)											工业分析					元素分析
w(SiO₂)	w(Al₂O₃)	w(Fe₂O₃)	w(CaO)	w(MgO)	w(TiO₂)	w(SO₃)	w(P₂O₅)	w(K₂O)	w(Na₂O)		$w M a d$	$w V d$	$w F C d$	$w A d$		w(C)	w(H)	w(O)	w(N)	w(S)
11.71	6.69	5.93	32.51	7.56	0.39	27.93	0.09	0.44	4.9		15.6	30.07	64.84	5.09		75.45	3.51	14.69	0.69	0.57

表1 准东煤的工业分析、元素分析以及煤灰化学成分 (%)

Tab. 1 Proximate analysis and ultimate analysis of Zhundong coal and its ash chemical composition

化学成分分析(干燥基)											工业分析					元素分析
w(SiO₂)	w(Al₂O₃)	w(Fe₂O₃)	w(CaO)	w(MgO)	w(TiO₂)	w(SO₃)	w(P₂O₅)	w(K₂O)	w(Na₂O)		$w M a d$	$w V d$	$w F C d$	$w A d$		w(C)	w(H)	w(O)	w(N)	w(S)
11.71	6.69	5.93	32.51	7.56	0.39	27.93	0.09	0.44	4.9		15.6	30.07	64.84	5.09		75.45	3.51	14.69	0.69	0.57

表2 模拟输入的条件

Tab. 2 Simulation input conditions

参数	数值	来源
烟气温度/K	1 073	实验
探针温度/K	823	实验
入口速度/(m/s)	15	实验
飞灰质量流量/(kg/s)	0.000 24	实验
飞灰密度/(kg/m³)	2 500	文献[28]
沉积灰层孔隙率	0.5	文献[29]
飞灰导热率/[W/(m⋅K)]	1.89	文献[30]

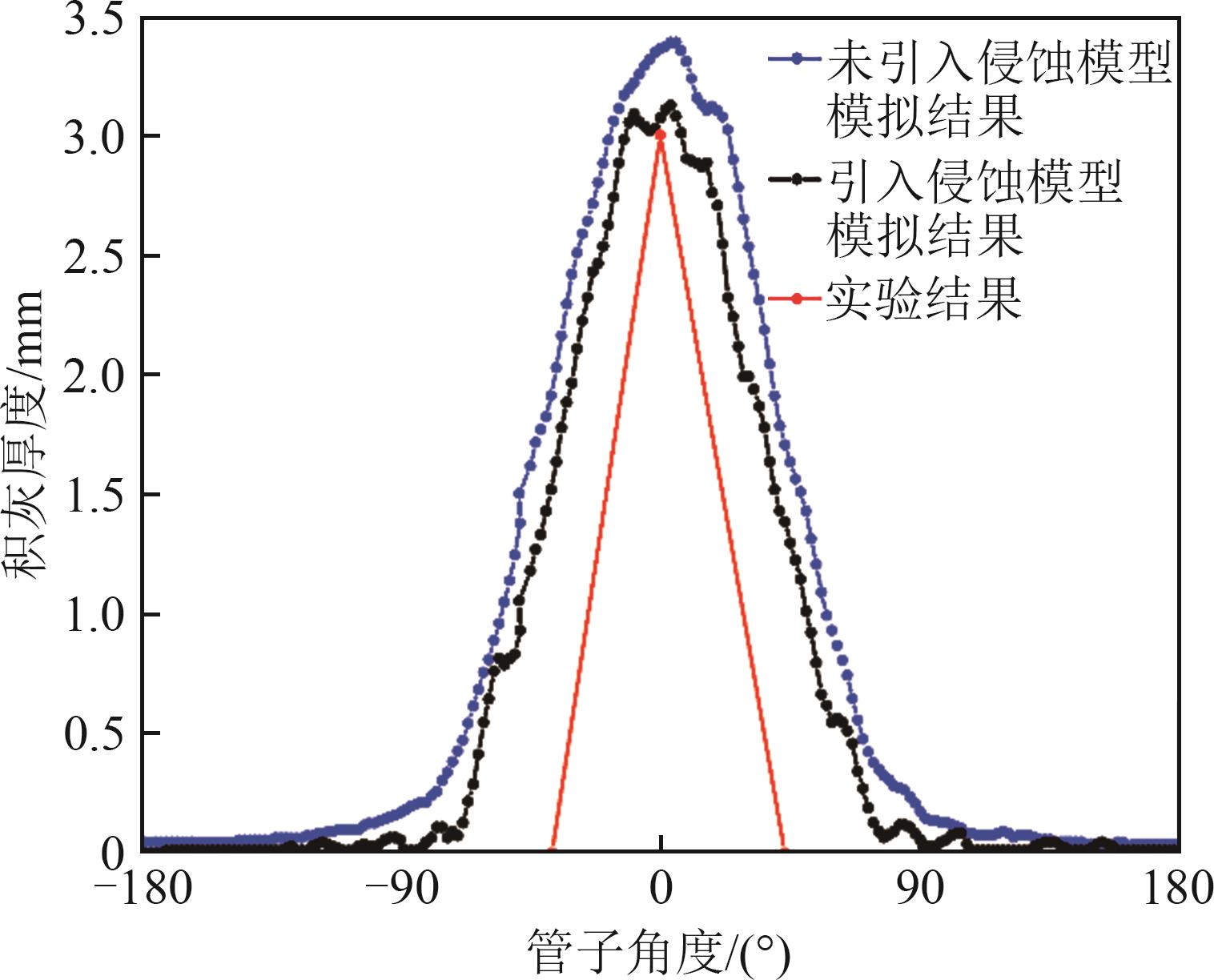

图1 积灰厚度及其分布特性模拟结果与实验结果对比

Fig. 1 Comparison between simulated and experimental results of deposited ash thickness and its distribution characteristics

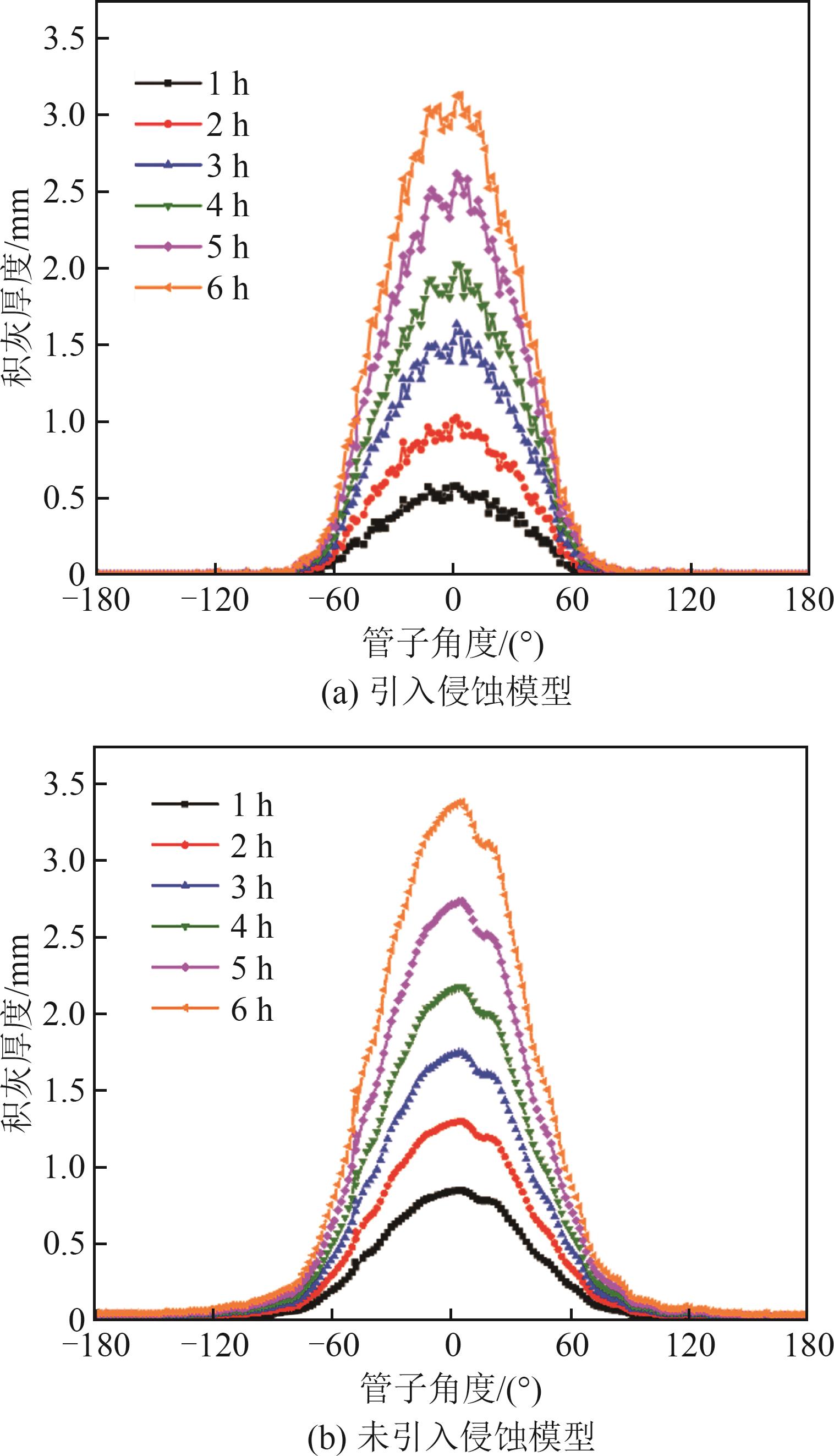

图2 有无侵蚀模型时的沉积灰形貌

Fig. 2 Morphology of deposited ash with and without erosion model

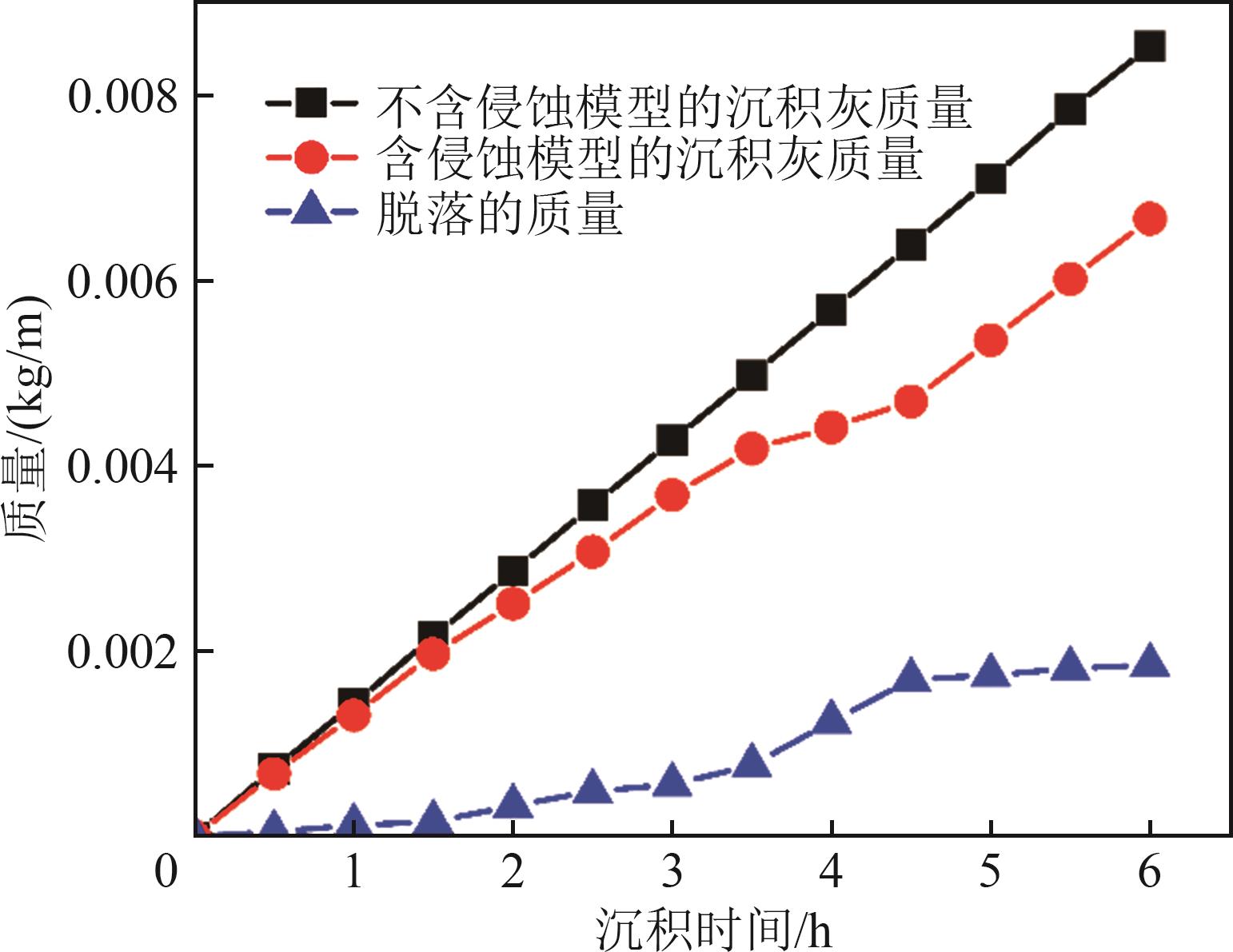

图3 换热管道沉积灰质量及脱落质量随时间的变化规律

Fig. 3 Variation patterns of deposited ash mass and shedding amount in heat exchange tube over time

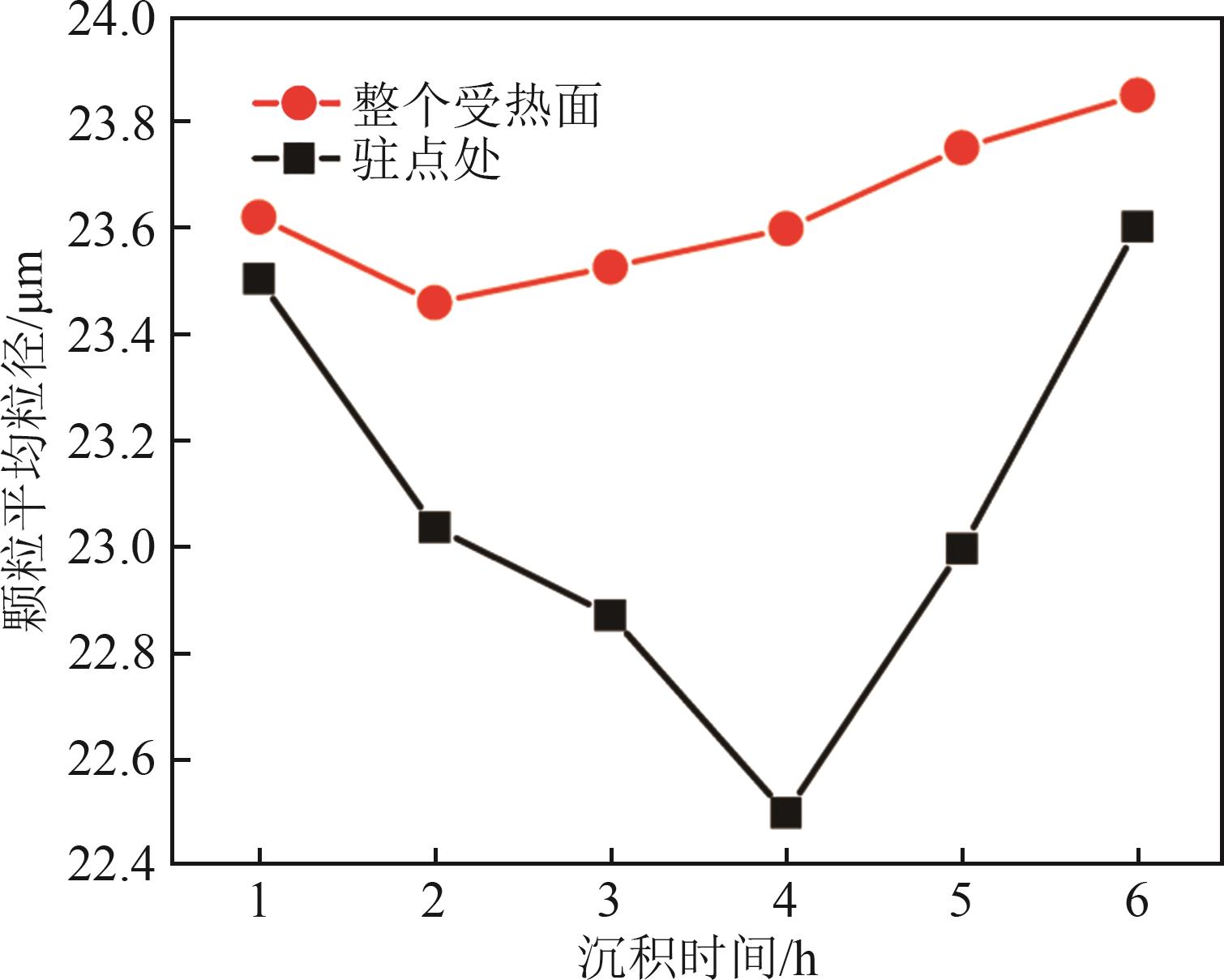

图4 沉积灰平均粒径随时间的变化

Fig. 4 Variation of average particle size of deposited ash over time

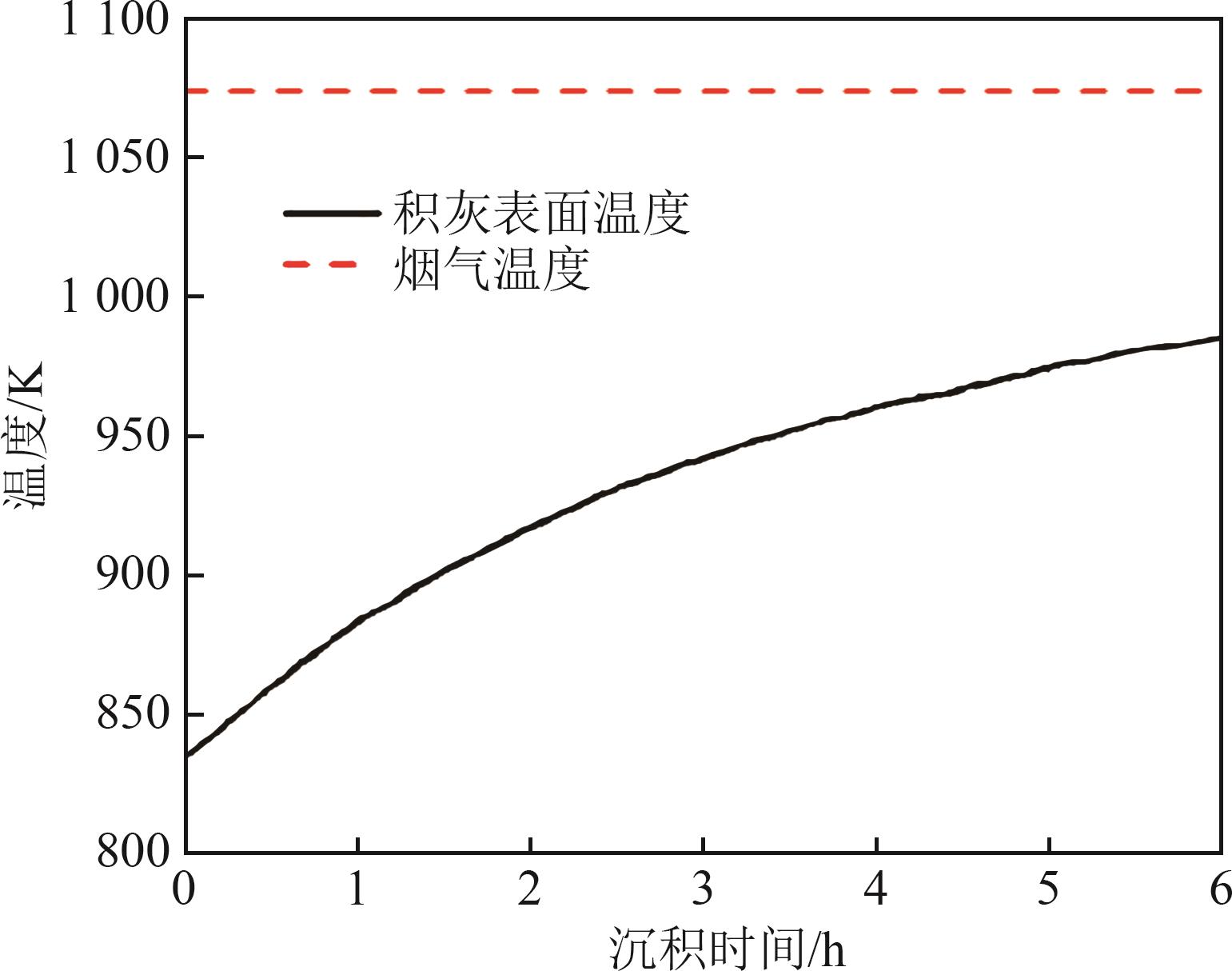

图5 沉积灰表面温度随时间的变化规律

Fig. 5 Variation patterns of surface temperature of deposited ash over time

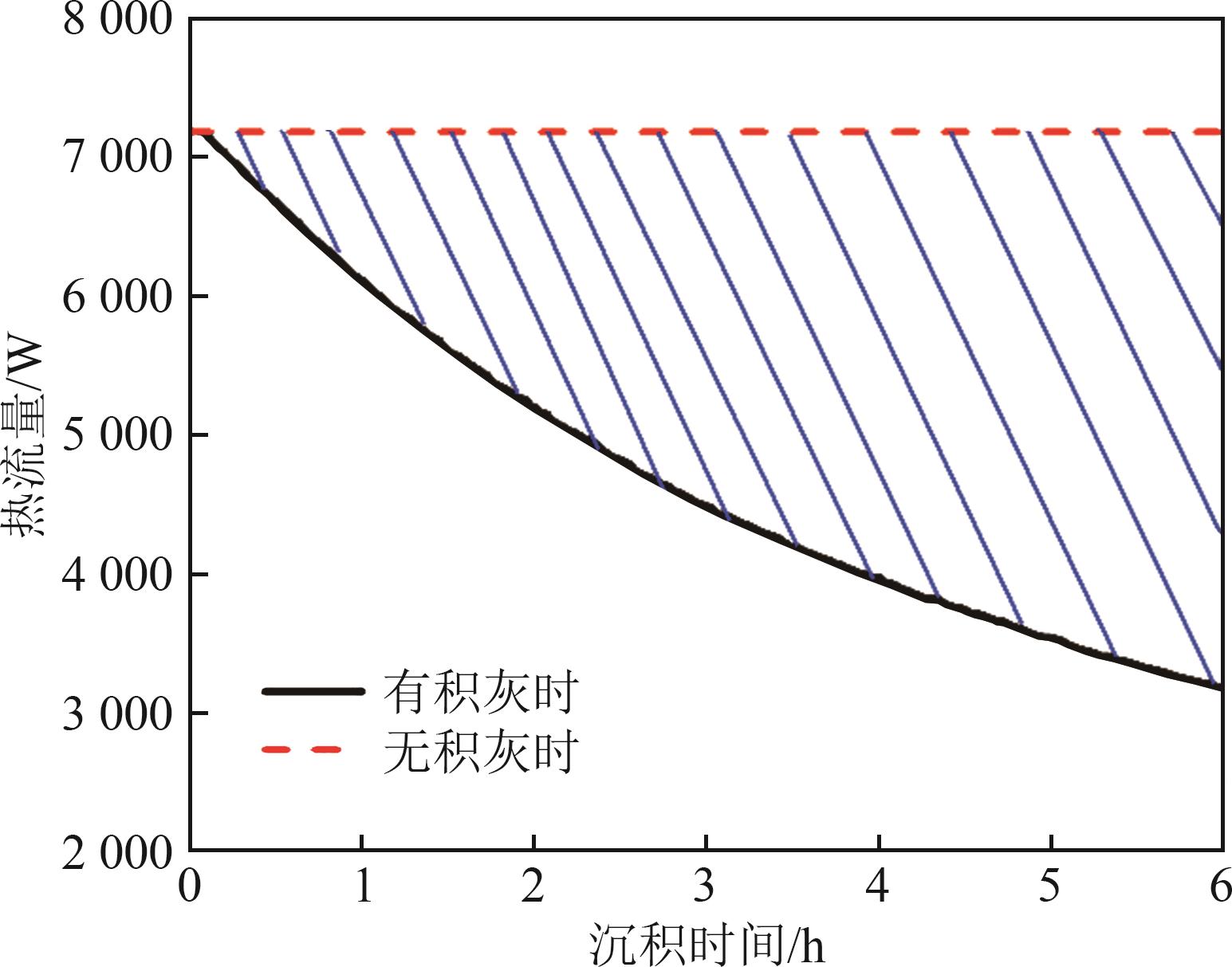

图6 管内外热流量随时间的变化关系

Fig. 6 Variation of heat flux inside and outside tube over time

表3 传热损耗率随时间的变化关系

Tab. 3 Variation of heat transfer loss rate over time

灰沉积时间/h	传热损耗/kJ	平均传热损耗速率/(kJ/h)
1	7 145.41	7 145.41
2	17 236.44	8 618.22
3	29 597.16	9 865.72
4	43 663.31	10 915.83
5	59 052.21	11 810.44
6	75 547.71	12 591.28

表4 沉积灰的平均黏附能和所需的吹灰质量流率

Tab. 4 Average adhesion energy of deposited ash and required mass flow rate for soot blowing

灰沉积时间/h	换热管道沉积灰黏附能/J	吹灰装置出口质量流率/(kg/s)
1	302.39	0.003 9
2	597.01	0.004 9
3	884.62	0.005 6
4	1 201.73	0.006 2
5	1 525.69	0.006 7
6	1 847.79	0.007 2

参考文献 42

[1]	牟春华，居文平，王洋，等．“双碳”目标下清洁高效灵活煤电技术现状及煤电前景展望[J]．热力发电，2023，52(9)：1-10．
	MU C H， JU W P， WANG Y，et al ．Techniques status and perspective of efficient-flexible coal fired power generation under carbon peak and neutrality targets[J]．Thermal Power Generation，2023，52(9)：1-10．
[2]	张全斌，周琼芳．基于“双碳”目标的中国火力发电技术发展路径研究[J]．发电技术，2023，44(2)：143-154． doi:10.12096/j.2096-4528.pgt.22092
	ZHANG Q B， ZHOU Q F ．Research on the development path of China’s thermal power generation technology based on the goal of “carbon peak and carbon neutralization”[J]．Power Generation Technology，2023，44(2)：143-154． doi:10.12096/j.2096-4528.pgt.22092
[3]	贠晓可，张天任，黄玉萍，等．广东电力低碳高质量发展下的电煤需求影响分析[J]．广东电力，2023，36(11)：1-10．
	YUN X K， ZHANG T R， HUANG Y P，et al ．Influence analysis of thermal coal demand under the low-carbon and high-quality development of electric power in Guangdong Province[J]．Guangdong Electric Power，2023，36(11)：1-10．
[4]	程文煜，张健，熊卓，等．“双碳” 目标下煤电机组节能改造技术发展与实践[J]．电力科技与环保，2024，40(5)：455-464．
	CHENG W Y， ZHANG J， XIONG Z，et al ．Development and practice of energy-saving retrofit technologies for coal power units under carbon peaking and carbon neutrality goals[J]．Electric Power Technology and Environmental Protection，2024，40(5)：455-464．
[5]	李昌陵，常喜强，卢浩．新疆能耗双控向碳排放双控转变分析和预测[J]．发电技术，2024，45(6)：1114-1120．
	LI C L， CHANG X Q， LU H ．Analysis and forecast of the shift from double control of energy consumption to double control of carbon emissions in Xinjiang[J]．Power Generation Technology，2024，45(6)：1114-1120．
[6]	卢啸风，李建波，刘卓，等．燃准东煤电站锅炉沾污结渣特性及防治措施研究进展[J]．中国电机工程学报，2024，44(18)：7247-7264．
	LU X F， LI J B， LIU Z，et al ．Research progress on the characteristics and countermeasures of ash slagging and fouling in boilers burning Zhundong coal[J]．Proceedings of the CSEE，2024，44(18)：7247-7264．
[7]	ZHU C， QU S J， ZHANG J，et al ．Distribution，occurrence and leaching dynamic behavior of sodium in Zhundong coal[J]．Fuel，2017，190：189-197． doi:10.1016/j.fuel.2016.11.031
[8]	吕俊复，史航，吴玉新，等．燃用准东煤过程中碱/碱土金属迁移规律及锅炉结渣沾污研究进展[J]．煤炭学报，2020，45(1)：377-385．
	LÜ J F， SHI H， WU Y X，et al ．Transformation of AAEM and ash deposition characteristics during combustion of Zhundong coal[J]．Journal of China Coal Society，2020，45(1)：377-385．
[9]	LONG X F， LI J B， WANG H J，et al ．The morphological and mineralogical characteristics and thermal conductivity of ash deposits in a 220 MW CFBB firing Zhundong lignite[J]．Energy，2023，263：125842． doi:10.1016/j.energy.2022.125842
[10]	MCELROY M W， CARR R C， ENSOR D S，et al ．Size distribution of fine particles from coal combustion[J]．Science，1982，215(4528)：13-19． doi:10.1126/science.215.4528.13
[11]	龙潇飞，李建波，郭子鹏，等．添加石灰石对准东煤CFB燃烧过程床料团聚和受热面积灰的影响[J]．中国电机工程学报，2024，44(14)：5631-5642．
	LONG X F， LI J B， GUO Z P，et al ．Effect of limestone addition on bed particle agglomeration and ash deposition on heat transfer surface during Zhundong coal combustion in a circulating fluidized bed[J]．Proceedings of the CSEE，2024，44(14)：5631-5642．
[12]	魏砾宏，崔保崇，陈勇，等．高碱煤钠赋存形态及其燃烧过程中迁移转化的研究进展[J]．燃料化学学报，2019，47(8)：897-906．
	WEI L H， CUI B C， CHEN Y，et al ．Occurrence of sodium in high alkali coal and its transformation during combustion[J]．Journal of Fuel Chemistry and Technology，2019，47(8)：897-906．
[13]	WANG Z H， LIU Y Z， WHIDDON R，et al ．Measurement of atomic sodium release during pyrolysis and combustion of sodium-enriched Zhundong coal pellet[J]．Combustion and Flame，2017，176：429-438． doi:10.1016/j.combustflame.2016.10.020
[14]	KLEINHANS U， WIELAND C， FRANDSEN F J，et al ．Ash formation and deposition in coal and biomass fired combustion systems：progress and challenges in the field of ash particle sticking and rebound behavior[J]．Progress in Energy and Combustion Science，2018，68：65-168． doi:10.1016/j.pecs.2018.02.001
[15]	ZBOGAR A， FRANDSEN F， JENSEN P A，et al ．Shedding of ash deposits[J]．Progress in Energy and Combustion Science，2009，35(1)：31-56． doi:10.1016/j.pecs.2008.07.001
[16]	LI G D， LI S Q， HUANG Q，et al ．Fine particulate formation and ash deposition during pulverized coal combustion of high-sodium lignite in a down-fired furnace[J]．Fuel，2015，143：430-437． doi:10.1016/j.fuel.2014.11.067
[17]	ZHOU H， ZHOU B， LI L T，et al ．Experimental measurement of the effective thermal conductivity of ash deposit for high sodium coal (Zhun Dong coal) in a 300 KW test furnace[J]．Energy & Fuels，2013，27(11)：7008-7022． doi:10.1021/ef4012017
[18]	滕晓龙，胡丽娜，张文超，等．准东煤飞灰沉积特性及数值模拟研究[J]．燃烧科学与技术，2024，30(4)：419-428．
	TENG X L， HU L N， ZHANG W C，et al ．Sedimentation characteristics and numerical simulation of Zhundong coal fly ash[J]．Journal of Combustion Science and Technology，2024，30(4)：419-428．
[19]	BRINK A， LINDBERG D， HUPA M，et al ．A temperature-history based model for the sticking probability of impacting pulverized coal ash particles[J]．Fuel Processing Technology，2016，141：210-215． doi:10.1016/j.fuproc.2015.08.039
[20]	KÆR S K， ROSENDAHL L A， BAXTER L L ．Towards a CFD-based mechanistic deposit formation model for straw-fired boilers[J]．Fuel，2006，85(5/6)：833-848． doi:10.1016/j.fuel.2005.08.016
[21]	WANG F L， HE Y L， TONG Z X，et al ．Real-time fouling characteristics of a typical heat exchanger used in the waste heat recovery systems[J]．International Journal of Heat and Mass Transfer，2017，104：774-786． doi:10.1016/j.ijheatmasstransfer.2016.08.112
[22]	GARBA M U， INGHAM D B， MA L，et al ．Prediction of potassium chloride sulfation and its effect on deposition in biomass-fired boilers[J]．Energy & Fuels，2012，26(11)：6501-6508． doi:10.1021/ef201681t
[23]	LIANG Y， LI J， LONG X，et al.A numerical simulation study of ash deposition in a circulating fluidized bed during Zhundong lignite combustion[J]．Fuel，2023，333：126501. doi:10.1016/j.fuel.2022.126501
[24]	GUO Z P， LI J B， LIANG Y T，et al ．A numerical simulation study into the effect of longitudinal and transverse pitch on deposition of Zhundong coal ash on tube bundles[J]．Processes，2024，12(1)：178． doi:10.3390/pr12010178
[25]	BOURIS D， KONSTANTINIDIS E， BALABANI S，et al ．Design of a novel，intensified heat exchanger for reduced fouling rates[J]．International Journal of Heat and Mass Transfer，2005，48(18)：3817-3832． doi:10.1016/j.ijheatmasstransfer.2005.03.026
[26]	ZHOU H， HU S H ．Numerical simulation of ash deposition behavior with a novel erosion model using dynamic mesh[J]．Fuel，2021，286：119482． doi:10.1016/j.fuel.2020.119482
[27]	LIU Z， LI J B， WANG Q H，et al ．An experimental investigation into mineral transformation，particle agglomeration and ash deposition during combustion of Zhundong lignite in a laboratory-scale circulating fluidized bed[J]．Fuel，2019，243：458-468． doi:10.1016/j.fuel.2019.01.134
[28]	ZHENG Z M， YANG W M， CAI Y T，et al ．Dynamic simulation on ash deposition and heat transfer behavior on a staggered tube bundle under high-temperature conditions[J]．Energy，2020，190：116390． doi:10.1016/j.energy.2019.116390
[29]	BALAKRISHNAN S， NAGARAJAN R， KARTHICK K ．Mechanistic modeling，numerical simulation and validation of slag-layer growth in a coal-fired boiler[J]．Energy，2015，81：462-470． doi:10.1016/j.energy.2014.12.058
[30]	MU L， MIAO H C， ZHAO C，et al ．Dynamic CFD modeling evaluation of ash deposition behavior and morphology evolution with different tube arrangements[J]．Powder Technology，2021，379：279-295． doi:10.1016/j.powtec.2020.10.057
[31]	WALSH P M， SAYRE A N， LOEHDEN D O，et al ．Deposition of bituminous coal ash on an isolated heat exchanger tube：effects of coal properties on deposit growth[J]．Progress in Energy and Combustion Science，1990，16(4)：327-345． doi:10.1016/0360-1285(90)90042-2
[32]	HSIAO W K， CHUN J H， SAKA N ．The effects of wetting and surface roughness on liquid metal droplet bouncing[J]．Journal of Manufacturing Science and Engineering，2009，131(2)：021010． doi:10.1115/1.3090884
[33]	JOHNSON K， KENDALL K， ROBERTS A D ．Surface energy and the contact of elastic solids[J]．Proceedings of the Royal Society of London．A．Mathematical and Physical Sciences，2007，324：301-313．
[34]	SINGH S， TAFTI D ．Particle deposition model for particulate flows at high temperatures in gas turbine components[J]．International Journal of Heat and Fluid Flow，2015，52：72-83． doi:10.1016/j.ijheatfluidflow.2014.11.008
[35]	MAO T， KUHN D C S， TRAN H ．Spread and rebound of liquid droplets upon impact on flat surfaces[J]．AIChE Journal，1997，43(9)：2169-2179． doi:10.1002/aic.690430903
[36]	NI J J， YU G S， GUO Q H，et al ．Submodel for predicting slag deposition formation in slagging gasification systems[J]．Energy & Fuels，2011，25(3)：1004-1009． doi:10.1021/ef101696a
[37]	LIU C， LIU Z H， ZHANG T，et al ．Numerical investigation on development of initial ash deposition layer for a high-alkali coal[J]．Energy & Fuels，2017，31(3)：2596-2606． doi:10.1021/acs.energyfuels.6b03043
[38]	严新荣，胡志勇，张鹏威，等．煤电机组运行灵活性提升技术研究与应用[J]．发电技术，2024，45(6)：1074-1086．
	YAN X R， HU Z Y， ZHANG P W，et al ．Research and application of operation flexibility improvement technology for coal-fired power unit[J]．Power Generation Technology，2024，45(6)：1074-1086．
[39]	谭琦，孙宗康，洪立，等．一种T型吹灰装置在锅炉空气预热器上的应用[J]．广东电力，2023，36(4)：110-117．
	TAN Q， SUN Z K， HONG L，et al ．Application of a T-type soot blowing device on bolier air preheater[J]．Guangdong Electric Power，2023，36(4)：110-117．
[40]	王志敏，黄骞，柳冠青，等．适应新型电力系统的调峰火电机组空气预热器安全评估策略[J]．南方能源建设，2024，11(6)：33-40．
	WANG Z M， HUANG Q， LIU G Q，et al ．Flexibility-oriented safety assessment strategy for air preheater in thermal power units adapting to the advanced power system[J]．Southern Energy Construction，2024，11(6)：33-40．
[41]	LI J B， DU W J， CHENG L ．Numerical simulation and experiment of gas-solid two phase flow and ash deposition on a novel heat transfer surface[J]．Applied Thermal Engineering，2017，113：1033-1046． doi:10.1016/j.applthermaleng.2016.10.198
[42]	WACŁAWIAK K， KALISZ S ．A practical numerical approach for prediction of particulate fouling in PC boilers[J]．Fuel，2012，97：38-48． doi:10.1016/j.fuel.2012.02.007
