高性能锂离子电容器正极材料石墨烯-介孔炭复合物的制备及性能分析

doi:10.12096/j.2096-4528.pgt.23099

发电技术 ›› 2024, Vol. 45 ›› Issue (3): 494-507.DOI: 10.12096/j.2096-4528.pgt.23099

高性能锂离子电容器正极材料石墨烯-介孔炭复合物的制备及性能分析

韩秀秀¹, 魏少鑫¹, 汪剑¹, 崔超婕¹^,², 骞伟中¹^,²

^1.清华大学化学工程系, 北京市海淀区 100084
^2.鄂尔多斯实验室, 内蒙古自治区鄂尔多斯市 017000

收稿日期:2023-08-30 修回日期:2023-10-25 出版日期:2024-06-30 发布日期:2024-07-01
通讯作者: 崔超婕
作者简介:韩秀秀(1989)，女，博士，研究方向为碳材料及其在储能领域的应用，hanxiuxiu@tsinghua.edu.cn；
魏少鑫(1998)，男，博士研究生，研究方向为三维泡沫铝基高功率电池型电容器技术的开发；
汪剑(1994)，男，中级工程师，研究方向为碳材料的工艺开发与产品制备以及煤化工催化剂的合成制备；
崔超婕(1987)，女，博士，助理研究员，研究方向为碳材料及其在储能与环保领域的应用，本文通信作者，cuicj06@tsinghua.edu.cn；
骞伟中(1971)，男，博士，教授，研究方向为碳材料及复合材料制备、储能与环境处理应用，新型煤化工催化剂及其产业化，多相流反应器技术，qianwz@tsinghua.edu.cn。
基金资助:
国家自然科学基金项目(22109085)

Preparation and Performance Analysis of High Performance Cathode Material Graphene-Mesoporous Carbon Composites for Lithium-Ion Capacitor

Xiuxiun HAN¹, Shaoxin WEI¹, Jian WANG¹, Chaojie CUI¹^,², Weizhong QIAN¹^,²

^1.Department of Chemical Engineering, Tsinghua University, Haidian District, Beijing 100084, China
^2.Ordos Laboratory, Ordos 017000, Inner Mongolia Autonomous Region, China

Received:2023-08-30 Revised:2023-10-25 Published:2024-06-30 Online:2024-07-01
Contact: Chaojie CUI
Supported by:
National Natural Science Foundation of China(22109085)

摘要/Abstract

摘要：

目的设计同时具有高质量活性和高体积活性的锂离子电容器(lithium-ion capacitor，LIC)复合正极材料。方法借助扫描电子显微镜、透射电子显微镜、康塔全自动比表面和孔径分析仪、四探针测试仪，通过实验分析了颗粒之间的微观形貌、堆叠方式、接触模式和界面特性对复合电极的电导率、电学性质的影响规律。结果将介孔活性炭(mesoporous activated carbon，MC)与单分散石墨烯/单壁碳纳米管杂化物(graphene/single-walled carbon nanotube hybrid，GNH)混合，紧密压缩制成锂离子电容器正极材料。GNH均匀地包裹在MC颗粒表面，与MC面对面接触，增大接触面积；而且GNH在MC颗粒之间形成均匀的三维导电网络，提供了快速的电子传导。另外，GNH具有开放结构，会优先吸附电解液离子，与MC界面间存在浓度梯度；同时，GNH具有较高的导电性，与导电性较差的MC界面间存在接触电势差效应。两者共同促使GNH和MC界面之间形成快速的离子和电子双传输路径，促进离子在MC内部的扩散，从而避免了高电流密度下因离子扩散缓慢而造成的容量损失。结论添加5% GNH提高了倍率性能，并且在不牺牲堆积密度的前提下同时提高质量和体积能量密度。

关键词: 电化学储能, 介孔活性炭, 石墨烯, 锂离子电容器, 接触电势差

Abstract:

Objectives The lithium-ion capacitor (LIC) composite cathode materials with both high mass activity and high volume activity were designed. Methods By scanning electron microscope, transmission electron microscope, Kanta fully automatic specific surface and pore size analyzer, and four-probe tester, the micromorphology, stacking mode, contact mode and interface characteristics between particles were analyzed for the impact of conductivity and electrical properties of composite electrodes. Results Mesoporous activated carbon (MC) and monodisperse graphene/single-walled carbon nanotube hybrid (GNH) were mixed, followed by compressing tightly to prepare the lithium-ion capacitor cathode material. GNH were uniformly wrapped around the surface of MC particles with face-to-face connection, which increases the contact area. Then, the even 3D conductive network constructed by GNH among the individual MC particles provided high electrical conductivity and accelerated electron conduction. In addition, GNH were located at the high ion concentration side due to their exohedral surface structure. Meanwhile, a contact potential difference effect existed between GNH (the easy conductive one) and MC (the poor conductive one). This produced rapid ion and electron dual transport channels at the interface between GNH and MC, and boosted ion diffusion in the porous structure inside MC particles. It will help avoid the loss of capacity from slow ion diffusion at higher current densities. Conclusions The addition of 5% GNH brings about outstanding rate performance, and higher mass and volumetric energy density, but does not reduce the packing density.

Key words: electrochemical energy storage, mesoporous activated carbon, graphene, lithium-ion capacitor, contact potential difference

中图分类号:

TK 02

韩秀秀, 魏少鑫, 汪剑, 崔超婕, 骞伟中. 高性能锂离子电容器正极材料石墨烯-介孔炭复合物的制备及性能分析[J]. 发电技术, 2024, 45(3): 494-507.

Xiuxiun HAN, Shaoxin WEI, Jian WANG, Chaojie CUI, Weizhong QIAN. Preparation and Performance Analysis of High Performance Cathode Material Graphene-Mesoporous Carbon Composites for Lithium-Ion Capacitor[J]. Power Generation Technology, 2024, 45(3): 494-507.

图/表 17

图1 MC材料和极片的形貌结构表征

Fig. 1 Morphology and structure characterization of MC powder and electrode

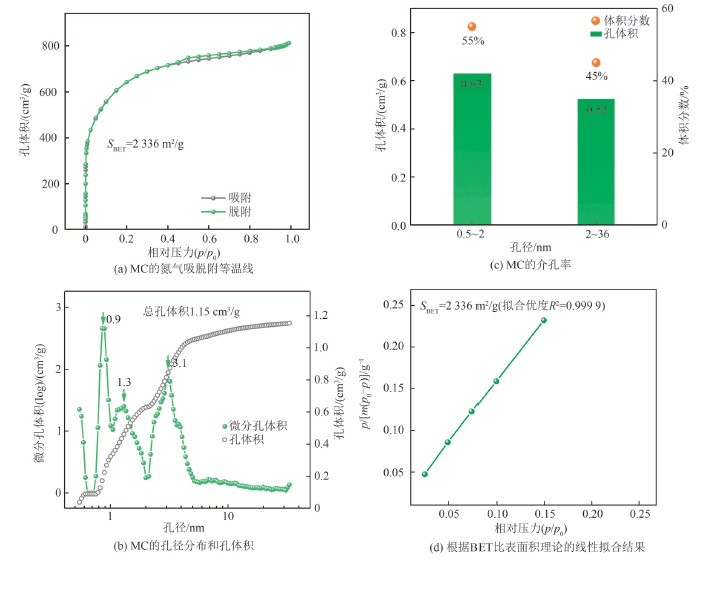

图2 MC的氮气吸脱附表征

Fig. 2 Characterization of nitrogen adsorption and desorption for MC

图3 GNH材料和极片的形貌结构表征

Fig. 3 Morphology and structure characterization of GNH powder and electrode

图4 GNH的氮气吸脱附表征

Fig. 4 Characterization of nitrogen adsorption and desorption for GNH

图5 复合电极GMC-x的形貌结构表征

Fig. 5 Morphology and structure characterization of GMC-x electrode

图6 5种电极材料在扫描速率为50 mV/s时的CV曲线

Fig. 6 CV curves of five electrode materials at 50 mV/s

图7 GMC-5/AF在不同电流密度下的GCD曲线

Fig. 7 GCD curves of GMC-5/AF at different current densities

图8 5种电极材料在不同电流密度下的质量比电容和线性加和

Fig. 8 Mass specific capacitance and linear weighted sum of five electrode materials at different current densities

图9 从0.02 A/g增大到1 A/g的容量保持率

Fig. 9 Capacitance retention ratio from 0.02 to 1 A/g

图10 复合电极相对于MC的电容增量

Fig. 10 Increment of capacitances relative to MC

图11 复合电极实际比电容与线性加和之间的差值及其占比

Fig. 11 Difference values of specific capacitances between composites and linear weighted sum and its proportion

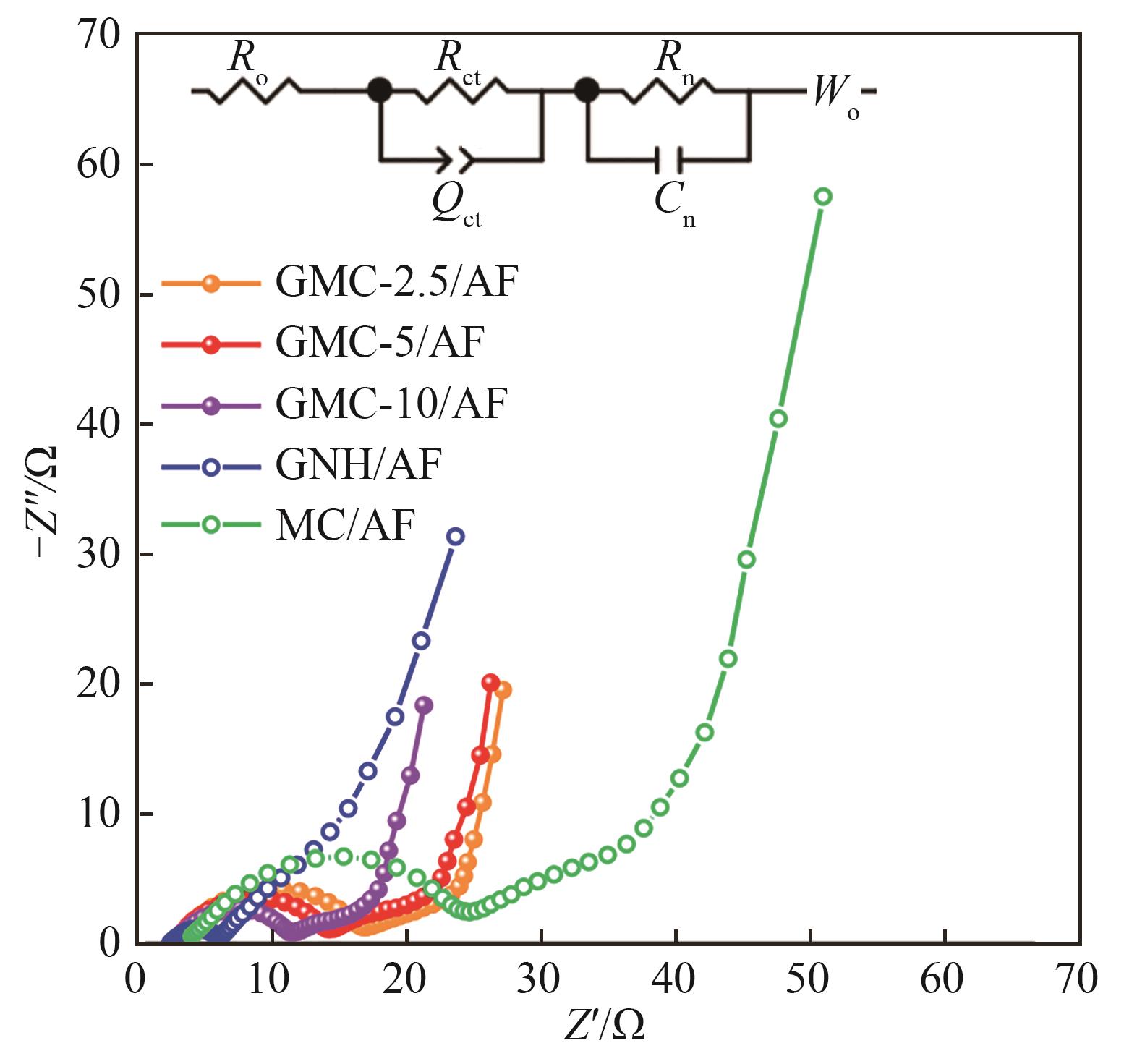

图12 奈奎斯特图

Fig. 12 Nyquist plots

表1 等效电路拟合结果

Tab. 1 Fitting results of equivalent circuit

材料	R_o	R_ct	Q_ct/(×10^-7)	R_n	C_n	W_o
MC	3.875	20.770	19.000	2.686 00	0.040 00	37.390
GMC-2.5	2.916	12.270	8.588	0.317 15	0.754 41	23.290
GMC-5	2.729	9.688	9.970	0.339 80	0.708 23	21.860
GMC-10	2.712	7.582	11.270	0.360 23	0.628 54	17.400
GNH	2.495	3.197	247.000	4.582 00	0.178 00	7.087

图13 单位质量能量密度与功率密度的比较

Fig. 13 Comparison of energy density and power density per unit mass

图14 GMC-5/AF和MC/AF的循环性能

Fig. 14 Cycling performance of GMC-5/AF and MC/AF

图15 5种电极材料在不同电流密度下的体积比电容

Fig. 15 Volume specific capacitance of five electrode materials at different current densities

图16 单位体积的能量密度与功率密度的比较

Fig. 16 Comparison of energy density and power density per unit volume

参考文献 31

1	魏少鑫，金鹰，王瑾，等．电池型电容器技术发展趋势展望[J]．发电技术，2022，43(5)：748-759． doi:10.12096/j.2096-4528.pgt.22115
	WEI S X， JIN Y， WANG J，et al ．Prospect for development trend of battery-capacitor technology[J]．Power Generation Technology，2022，43(5)：748-759． doi:10.12096/j.2096-4528.pgt.22115
2	LIU K L， LI K， PENG Q，et al ．A brief review on key technologies in the battery management system of electric vehicles[J]．Frontiers of Mechanical Engineering，2019，14(1)：47-64． doi:10.1007/s11465-018-0516-8
3	CONG C B， MA H ．Advances of electroactive metal-organic frameworks[J]．Small，2023，19(15)：2207547． doi:10.1002/smll.202207547
4	LIANG J X， WANG D W ．Design rationale and device configuration of lithium-ion capacitors[J]．Advanced Energy Materials，2022，12(25)：2200920． doi:10.1002/aenm.202200920
5	郑俊生，吕心荣，郑剑平．锂离子电容器性能分析及其应用[J]．发电技术，2022，43(5)：775-783． doi:10.12096/j.2096-4528.pgt.22131
	ZHENG J S， LÜ X R， ZHENG J P ．Performance analysis and application of lithium ion capacitors[J]．Power Generation Technology，2022，43(5)：775-783． doi:10.12096/j.2096-4528.pgt.22131
6	孙现众，张熊，王凯，等．高能量密度的锂离子混合型电容器[J]．电化学，2017，23(5)：586-603． doi:10.13208/j.electrochem.170346
	SUN X Z， ZHANG X， WANG K，et al ．Lithium ion hybrid capacitor with high energy density[J]．Journal of Electrochemistry，2017，23(5)：586-603． doi:10.13208/j.electrochem.170346
7	GOSWAMI M， KUMAR S， SIDDIQUI H，et al ．Hybrid energy storage devices：Li-ion and Na-ion capacitors[M]//Emerging Trends in Energy Storage Systems and Industrial Applications．Amsterdam：Elsevier，2023：223-258． doi:10.1016/b978-0-323-90521-3.00016-8
8	LIU W H， WANG K， LI C，et al ．Boosting solid-state flexible supercapacitors by employing tailored hierarchical carbon electrodes and a high-voltage organic gel electrolyte[J]．Journal of Materials Chemistry A，2018，6(48)：24979-24987． doi:10.1039/c8ta09839e
9	DING J， HU W， PAEK E，et al ．Review of hybrid ion capacitors：from aqueous to lithium to sodium[J]．Chemical Reviews，2018，118(14)：6457-6498． doi:10.1021/acs.chemrev.8b00116
10	LI C， ZHANG X， WANG K，et al ．Recent advances in carbon nanostructures prepared from carbon dioxide for high-performance supercapacitors[J]．Journal of Energy Chemistry，2021，54：352-367． doi:10.1016/j.jechem.2020.05.058
11	SOLTANI M， BEHESHTI S H ．A comprehensive review of lithium ion capacitor：development，modelling，thermal management and applications[J]．Journal of Energy Storage，2021，34：102019． doi:10.1016/j.est.2020.102019
12	WANG H， ZHU C， CHAO D，et al ．Nonaqueous hybrid lithium-ion and sodium-ion capacitors[J]．Advanced Materials，2017，29(46)：1702093． doi:10.1002/adma.201702093
13	MA Y F， CHANG H C， ZHANG M，et al ．Graphene-based materials for lithium-ion hybrid supercapacitors[J]．Advanced Materials，2015，27(36)：5296-5308． doi:10.1002/adma.201501622
14	SIMON P， GOGOTSI Y ．Capacitive energy storage in nanostructured carbon-electrolyte systems[J]．Accounts of Chemical Research，2013，46(5)：1094-1103． doi:10.1021/ar200306b
15	AN Y B， LIU T Y， LI C，et al ．A general route for the mass production of graphene-enhanced carbon composites toward practical pouch lithium-ion capacitors[J]．Journal of Materials Chemistry A，2021，9(28)：15654-15664． doi:10.1039/d1ta03933d
16	WANG B， RUAN T T， CHEN Y，et al ．Graphene-based composites for electrochemical energy storage[J]．Energy Storage Materials，2020，24：22-51． doi:10.1016/j.ensm.2019.08.004
17	HASSAN M R AL，SEN A， ZAMAN T，et al ．Emergence of graphene as a promising anode material for rechargeable batteries：a review[J]．Materials Today Chemistry，2019，11：225-243． doi:10.1016/j.mtchem.2018.11.006
18	YANG Z F， TIAN J R， YE Z Z，et al ．High energy and high power density supercapacitor with 3D Al foam-based thick graphene electrode：Fabrication and simulation[J]．Energy Storage Materials，2020，33：18-25． doi:10.1016/j.ensm.2020.07.020
19	CHEN H， QIAN W Z， XIE Q，et al ．Graphene-carbon nanotube hybrids as robust，rapid，reversible adsorbents for organics[J]．Carbon，2017，116：409-414． doi:10.1016/j.carbon.2017.02.017
20	HURILECHAOKETU， WANG J， CUI C J，et al ．Highly electroconductive mesoporous activated carbon fibers and their performance in the ionic liquid-based electrical double-layer capacitors[J]．Carbon，2019，154：1-6． doi:10.1016/j.carbon.2019.07.093
21	骞伟中，崔超婕，汪剑，等．一种高导电、高导热活性炭及制备系统、制备方法与用途：CN110510609B[P]．2021-04-13．
	QIAN W Z， CUI C J， WANG J，et al ．A kind of highly conductive，high thermal conductive activated carbon and its preparation system，preparation method and application：CN110510609B[P]．2021-04-13．
22	闫帅帅，陆洋，侯文会，等．面向锂电储能系统的本质安全电池智能隔膜材料[J]．发电技术，2022，43(5)：792-800． doi:10.12096/j.2096-4528.pgt.22098
	YAN S S， LU Y， HOU W H，et al ．Smart separator materials of intrinsic safe lithium battery for large-scale electric energy storge[J]．Power Generation Technology，2022，43(5)：792-800． doi:10.12096/j.2096-4528.pgt.22098
23	LIU F Y， LU P F， ZHANG Y，et al ．Sustainable lignin-derived carbon as capacity-kinetics matched cathode and anode towards 4.5 V high-performance lithium-ion capacitors[J]．Energy & Environmental Materials，2023，6(4)：12550． doi:10.1002/eem2.12550
24	WEI M M， ZHANG L， XIONG Y Q，et al ．Nanopore structure characterization for organic-rich shale using the non-local-density functional theory by a combination of N₂ and CO₂ adsorption[J]．Microporous and Mesoporous Materials，2016，227：88-94． doi:10.1016/j.micromeso.2016.02.050
25	LIU Y H， SOUCAZE-GUILLOUS B， TABERNA P L，et al ．Understanding of carbon-based supercapacitors ageing mechanisms by electrochemical and analytical methods[J]．Journal of Power Sources，2017，366：123-130． doi:10.1016/j.jpowsour.2017.08.104
26	YU Y T， CUI C J， QIAN W Z，et al ．Full capacitance potential of SWCNT electrode in ionic liquids at 4 V[J]．Journal of Materials Chemistry A，2014，2(46)：19897-19902． doi:10.1039/c4ta04773g
27	TAN W， GAO T， WANG Y ．Influence of surface potential on the capacitive performance of the TiO₂ thin-film electrode with different crystalline forms[J]．Langmuir，2020，36(14)：3836-3842． doi:10.1021/acs.langmuir.0c00663
28	MA C， CAO E C， DIRICAN M，et al ．Fabrication，structure and supercapacitance of flexible porous carbon nanobelt webs with enhanced inter-fiber connection[J]．Applied Surface Science，2021，543：148783． doi:10.1016/j.apsusc.2020.148783
29	SONG S， ZHANG X， LI C，et al ．Anomalous diffusion models in frequency-domain characterization of lithium-ion capacitors[J]．Journal of Power Sources，2021，490：229332． doi:10.1016/j.jpowsour.2020.229332
30	BOHLEN O， KOWAL J U， SAUER D U ．Ageing behaviour of electrochemical double layer capacitors[J]．Journal of Power Sources，2007，172(1)：468-475． doi:10.1016/j.jpowsour.2007.07.021
31	MA C， WANG X， MA Y，et al ．Carbon nanofiber/graphene composite paper for flexible supercapacitors with high volumetric capacitance[J]．Materials Letters，2015，145：197-200． doi:10.1016/j.matlet.2015.01.106
