蒸发冷却空气参数计算及其在湿式蒸发冷却塔节水节能中的应用

doi:10.12096/j.2096-4528.pgt.21033

发电技术 ›› 2021, Vol. 42 ›› Issue (5): 604-613.DOI: 10.12096/j.2096-4528.pgt.21033

蒸发冷却空气参数计算及其在湿式蒸发冷却塔节水节能中的应用

王志明¹(), 潘欣全²(), 何伟男¹(), 谭益坤³(), 赵元宾³^,*()

¹ 深圳中广核工程设计有限公司, 广东省深圳市 518057
² 中国广核新能源控股有限公司, 广东省深圳市 518057
³ 山东大学能源与动力工程学院, 山东省济南市 250061

收稿日期:2021-04-25 出版日期:2021-10-31 发布日期:2021-10-13
通讯作者: 赵元宾
作者简介:王志明(1972), 男, 高级工程师, 主要研究方向为核电热能动力与新能源节能环保技术, wangzhiming@cgnpc.com.cn
潘欣全(1971), 男, 高级工程师, 主要研究方向为安全管理与应急管理, 705853343@qq.com
何伟男(1988), 男, 工程师, 主要研究方向为核电厂汽轮机本体系统设计与新能源系统设计, heweinan@cgnpc.com.cn
谭益坤(1995), 男, 硕士研究生, 主要研究方向为高效换热器的设计与优化, 1031216147@qq.com
基金资助:
国家自然科学基金项目(51606112);广东省重点领域研发计划(2019B111109001)

Calculation of Evaporative Cooling Air Parameters and Relevant Applications in Wet Evaporative Cooing Tower Water and Energy Saving

Zhiming WANG¹(), Xinquan PAN²(), Weinan HE¹(), Yikun TAN³(), Yuanbin ZHAO³^,*()

¹ China Nuclear Power Design Co., Ltd., Shenzhen 518057, Guangdong Province, China
² GGN New Energy Holdings Co., Ltd., Shenzhen 518057, Guangdong Province, China
³ School of Energy and Power Engineering, Shandong University, Jinan 250061, Guangdong Province, China

Received:2021-04-25 Published:2021-10-31 Online:2021-10-13
Contact: Yuanbin ZHAO
Supported by:
National Natural Science Foundation of China(51606112);Research and Development Plan in Key Areas of Guangdong Province(2019B111109001)

摘要/Abstract

摘要：

针对湿式蒸发冷却塔蒸发量大、排污量大、冬季雾羽大等弊端，介绍了盘管型、填料型及复合型蒸发冷却塔气—水两相传热传质计算公式，阐明了气—水传热传质过程空气温度、湿度、焓值等参数精确计算方法。结合实时进塔空气温度、含湿量和质量流量，计算同一时间段的循环水蒸发量、排污量和补水量，结果表明：在相同相对湿度下，干球温度34℃对应的循环水蒸发量、补水量比干球温度20℃对应的量减小15%；在相同湿球温度下，干球温度34℃对应的循环水蒸发量、补水量比干球温度20℃对应的量增大48.8%。因此，蒸发冷却过程中空气参数的精确计算可实现湿式蒸发冷却塔蒸发量、补水量及排污量的实时计算及调节，并进而推进其节水消雾和节能减排优化。

关键词: 湿式蒸发冷却塔, 热质交换, 节水优化, 节能减排, 消雾特性

Abstract:

In view of the disadvantages of wet evaporative cooling tower such as large water evaporation, large sewage discharge, and large fog plume in winter, this paper summarized the calculation formulas of air parameters in the air-water two-phase heat and mass transfer for the coil type, the filling type and composite type evaporative cooling tower. Combined with real-time inlet air temperature, moisture content and mass flow, the accurate calculation method of air temperature, moisture content, enthalpy and other parameters in the process of air-water heat and mass transfer were further clarified. The water evaporation rate, discharge rate and water saving amount were calculated at the same time period. The calculation results show that under the same inlet air relative humidity, the water evaporation rate and make-up rate corresponding to dry bulb temperature of 34℃ are 15% less than those corresponding to dry bulb temperature of 20℃. Under the same wet bulb temperature, the water evaporation rate and make-up water rate corresponding to dry bulb temperature of 34℃ increase by 48.8% than that corresponding to dry bulb temperature of 20℃. Therefore, the accurate calculation of air parameters in the evaporative cooling process, could avail the real-time calculation and regulation of evaporation rate, water make-up rate, discharge rate, and promote the optimization of water saving, plume abatement, energy saving and discharge reduction for wet evaporative cooling tower.

Key words: wet evaporative cooling tower, heat and mass transfer, water saving optimization, energy saving and discharge reduction, plume abatement characteristics

中图分类号:

王志明, 潘欣全, 何伟男, 谭益坤, 赵元宾. 蒸发冷却空气参数计算及其在湿式蒸发冷却塔节水节能中的应用[J]. 发电技术, 2021, 42(5): 604-613.

Zhiming WANG, Xinquan PAN, Weinan HE, Yikun TAN, Yuanbin ZHAO. Calculation of Evaporative Cooling Air Parameters and Relevant Applications in Wet Evaporative Cooing Tower Water and Energy Saving[J]. Power Generation Technology, 2021, 42(5): 604-613.

图/表 8

图1 纯填料湿式冷却塔的结构图

Fig.1 Structure diagram of a wet cooling tower with pure fillers

图2 纯盘管闭式冷却塔的结构图

Fig.2 Structure diagram of a closed cooling tower with a pure tube

图3 复合式闭式冷却塔的结构图

Fig.3 Structure diagram of a hybrid closed cooling tower

图4 自然通风湿式冷却塔的结构图

Fig.4 Structure diagram of natural ventilation wet cooling tower

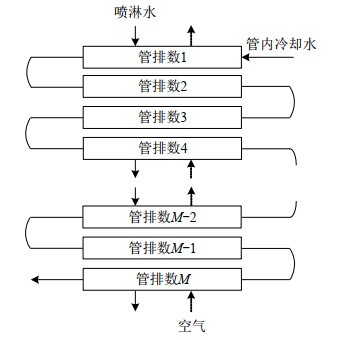

图5 盘管换热器的热质交换模型图

Fig.5 Heat and mass exchange model of tube heat exchanger

图6 填料层的热质交换模型

Fig.6 Heat and mass exchange model of packed layer

表1 相对湿度恒定时进塔空气干球温度提高对循环水蒸发量、补水量的影响

Tab. 1 Influence of increasing air dry bulb temperature into the tower on the evaporation and replenishment of circulating water under constant relative humidity

状态点	空气干球温度/℃	空气湿球温度/℃	相对湿度/%	出塔空气温度/℃	出塔空气含湿量/(g/kg)	蒸发量/(kg/h)	补水量/(kg/h)
1	20	15.10	60	28.78	22.72	1 242.6	1 553.25
2	22	16.82	60	29.38	23.74	1 227.0	1 533.75
3	24	18.55	60	30.03	24.88	1 209.0	1 511.25
4	26	20.28	60	30.69	26.09	1 184.3	1 480.38
5	28	22.01	60	31.39	27.41	1 155.5	1 444.38
6	30	23.75	60	32.19	29.00	1 133.7	1 417.13
7	32	25.49	60	33.00	30.68	1 102.7	1 378.38
8	34	27.23	60	33.78	32.39	1 056.2	1 320.25

表2 湿球温度恒定时进塔空气干球温度提高对循环水蒸发量、补水量的影响

Tab. 2 Influence of increasing air dry bulb temperature into the tower on the evaporation and replenishment of circulating water under constant wet ball temperature

状态点	空气干球温度/℃	空气湿球温度/℃	相对湿度/%	出塔空气温度/℃	出塔空气含湿量/(g/kg)	蒸发量/(kg/h)	补水量/(kg/h)
1	20	18	82.7	29.89	24.66	1 104.8	1 381.00
2	22	18	68.2	29.94	24.72	1 182.9	1 478.63
3	24	18	56.0	29.98	24.77	1 260.7	1 575.88
4	26	18	45.8	30.02	24.83	1 338.0	1 672.50
5	28	18	37.3	30.07	24.90	1 416.1	1 770.13
6	30	18	30.1	30.11	24.96	1 492.9	1 866.14
7	32	18	24.1	30.14	25.01	1 568.3	1 960.38
8	34	18	19.1	30.17	25.08	1 644.4	2 055.50

参考文献 50

1	WEERASOORIYA R R , LIYANAGE L P K , RATHNAPPRIYA R H K , et al. Industrial water conservation by water footprint and sustainable development goals: a review[J]. Environment, Development and Sustainability, 2021, 23, 12661- 12709. DOI
2	ZOU D L , CONG H B . Evaluation and influencing factors of China's industrial water resource utilization efficiency from the perspective of spatial effect[J]. AEJ-Alexandria Engineering Journal, 2021, 60 (1): 173- 182. DOI
3	YU Q W , WU F P , ZHANG Z F , et al. Technical inefficiency, abatement cost and substitutability of industrial water pollutants in Jiangsu province, China[J]. Journal of Cleaner Production, 2021, 280, 124260. DOI
4	JIA C H , YAN P , LIU P , et al. Energy industrial water withdrawal under different energy development scenarios: a multi-regional approach and a case study of China[J]. Renewable and Sustainable Energy Reviews, 2021, 135, 110224. DOI
5	YANG F , WANG D W , ZHAO L L , et al. Efficiency evaluation for regional industrial water use and wastewater treatment systems in China: a dynamic interactive network slacks-based measure model[J]. Journal of Environmental Management, 2021, 279, 111721. DOI
6	李海红, 袁令, 王丽珍, 等. 我国工业节水分析与推进建议[J]. 中国水利, 2020, (19): 44- 46. DOI
	LI H H , YUAN L , WANG L Z , et al. The analysis and suggestion to industrial water-saving of our country[J]. China Water Resources, 2020, (19): 44- 46. DOI
7	LANDEN D B , JACOB F T , KODY M P . Real-time optimization of multi-cell industrial evaporative cooling towers using machine learning and particle swarm optimization[J]. Journal of Cleaner Production, 2020, 271, 122175. DOI
8	MUSTAPHA S , AHMED S . Simultaneous water and energy saving in cooling water networks using pinch approach[J]. Materials Today: Proceedings, 2019, 13, 1115- 1124. DOI
9	WANG W S , GE X W , ZHAO S F , et al. A novel approach for water conservation and plume abatement in mechanical draft cooling towers[J]. Atmosphere, 2019, 10 (12): 734. DOI
10	LV Z Q , CAI J J , SUN W Q , et al. Analysis and optimization of open circulating cooling water system[J]. Water, 2018, 10, 1592. DOI
11	LEES M . The economics of wet versus dry cooling for combined cycle[J]. Proceedings of the Institution of Mechanical Engineers, Part A: Journal of Power and Energy, 1995, 209 (1): 37- 44. DOI
12	ANDREAS S . Combined wet/dry cooling towers of cell-type construction[J]. Journal of Energy Engineering, 1998, 124 (3): 104- 121. DOI
13	NIENBORG B , MATHIEU M , Alexander S , et al. Model-based evaluation of air-side fouling in closed-circuit cooling towers[J]. Energies, 2021, 14 (3): 695. DOI
14	余建航, 屈治国, 李澎, 等. 逆流湿式冷却塔宏观预测耦合模型及其热力性能研究[J]. 热能动力工程, 2020, 35 (6): 183- 190.
	YU J H , QU Z G , LI P , et al. Prediction conjugative model for a counterflow wet cooling tower and its thermodynamic performance analysis[J]. Journal of Engineering for Thermal Energy and Power, 2020, 35 (6): 183- 190.
15	JIANG L , HAN Q , WANG N N , et al. The effects of water droplet diameter distribution in the rain zone on the cooling capacity and water-splashing noise for natural draft wet cooling towers[J]. International Journal of Thermal Sciences, 2021, 164, 106875. DOI
16	ZENGIN O , AYHAN O . Experimental and theoretical analysis of mechanical draft counterflow wet cooling towers[J]. Science and Technology for the Built Environment, 2021, 27 (1): 14- 27. DOI
17	WAN D W , GAO S S , LIU M H , et al. Effect of cooling water salinity on the cooling performance of natural draft wet cooling tower[J]. International Journal of Heat and Mass Transfer, 2020, 161, 120257. DOI
18	刘桦, 朱其萍, 谢晓翠, 等. 考虑环境参数不确定性的闭式冷却塔随机模拟研究[J]. 大连理工大学学报, 2019, 59 (3): 244- 250.
	LIU Y , ZHU Q P , XIE X C , et al. Study of stochastic modeling of closed cooling tower considering uncertainty of ambient parameters[J]. Journal of Dalian University of Technology, 2019, 59 (3): 244- 250.
19	ZHOU Y S , DING X , XIE W . Experimental research on heat transfer of closed cooling tower with packing[J]. Advanced Materials Research, 2014, 960, 614- 620.
20	QIAN J F, LI L, TAN Y K, et al. Research and application of closed cooling tower[C]//2nd International Conference on Electronic & Mechanical Engineering and Information Technology. Paris, France: Atlantis Press, 2012: 2213-2215.
21	BUDIHARDJO , NASRUDDIN , MOHAMMAD H N . Experimental and simulation study on the performance of counter flow closed cooling tower systems[J]. International Journal of Technology, 2015, 6 (3): 365- 379. DOI
22	夏莉, 杨卫波, 徐瑞. 参数对横流闭式冷却塔冷却效率的影响[J]. 扬州大学学报(自然科学版), 2018, 21 (4): 27- 32.
	XIA L , YANG W B , XU R . Study on the effect of different parameters on cooling efficiency of cross-flow closed cooling tower[J]. Journal of Yangzhou University (Natural Science Edition), 2018, 21 (4): 27- 32.
23	PHILIPP P , CHRISTOPHER L , RICHARD Ö . Hybrid cooling towers in a free-cooling application: modeling and field measurement verification[J]. Chemical Engineering & Technology, 2019, 42 (9): 1871- 1878.
24	WEI H M , HUANG X W , CHEN L , et al. Performance of a novel natural draft hybrid cooling tower for thermal power generation[J]. Energy Procedia, 2019, 158, 5231- 5237. DOI
25	NOURANI Z , NASERBEGI A , TAYYEBI S H , et al. Thermodynamic evaluation of hybrid cooling towers based on ambient temperature[J]. Thermal Science and Engineering Progress, 2019, 14, 100406. DOI
26	HASAN A , KAI S . Theoretical and computational analysis of closed wet cooling towers and its applications in cooling of buildings[J]. Energy & Buildings, 2002, 34 (5): 477- 486.
27	HEYNS J A , KROGER D G . Experimental investigation into the thermal-flow performance characteristics of an evaporative cooler[J]. Applied Thermal Engineering, 2009, 30 (5): 492- 498.
28	GOMEZ E V , MARTINEZ F J R , GONZALEZ A T . Experimental characterisation of the operation and comparative study of two semi-indirect evaporative systems[J]. Applied Thermal Engineering, 2010, 30 (11): 1447- 1454.
29	NASR M R J , BEHFAR R . A novel design for evaporative fluid coolers[J]. Applied Thermal Engineering, 2010, 30 (17): 2746- 2752.
30	PAPAEFTHIMIOU V D , ROGDAKIS E D , KORONAKI I P , et al. Thermodynamic study of the effects of ambient air conditions on the thermal performance characteristics of a closed wet cooling tower[J]. Applied Thermal Engineering, 2012, 33, 199- 207.
31	王明勇, 栾俊, 刘江. 冷却塔填料布置方式对热力性能的影响[J]. 热力发电, 2018, 47 (3): 82- 87.
	WANG M Y , LUAN J , LIU J . Impact of non-uniform fill layouts of the cooling tower on thermal performance[J]. Thermal Power Generation, 2018, 47 (3): 82- 87.
32	陈友良, 石永锋, 谢大幸, 等. 基于焓差法的逆流湿式冷却塔性能诊断数学模型[J]. 给水排水, 2016, 52 (S1): 317- 321.
	CHEN Y L , SHI Y F , XIE D X , et al. Counterflow wet cooling tower performance diagnosis mathematical model based on enthalpy difference method[J]. Water & Wastewater Engineering, 2016, 52 (S1): 317- 321.
33	MIAO H , WANG Z , NIU Y . Key issues and cooling performance comparison of different closed Brayton cycle based cooling systems for scramjet[J]. Applied Thermal Engineering, 2020, 179, 115751. DOI
34	任勤, 周亚素, 张恒钦. 基于湿球温度的逆流闭式冷却塔换热模型分析[J]. 建筑热能通风空调, 2010, 29 (1): 9- 12. DOI
	REN Q , ZHOU Y S , ZHANG H Q . Analysis of heat transfer model for counter-flow closed cooling tower based on wet bulb temperature[J]. Building Energy & Environment, 2010, 29 (1): 9- 12. DOI
35	李宁瑾. 横流闭式冷却塔数学模型的试验验证[J]. 制冷与空调, 2016, 16 (9): 58- 66.
	LI N J . Experimental verification mathematical mode of closed cross-flow cooling towers[J]. Refrigeration and Air-Conditioning, 2016, 16 (9): 58- 66.
36	YUAN W , SUN F Z , LIU R , et al. Effect of change factors on evaporation loss based on cold end system in natural draft counter-flow wet cooling towers[J]. Journal of Thermal Science and Technology, 2021, 16 (2): 00295.
37	朱冬生, 郑伟业, 吴佳菲, 等. 闭式冷却塔的数值分析[J]. 流体机械, 2013, 41 (1): 59- 62. DOI
	ZHU D S , ZHENG W Y , WU J F , et al. Computational analysis of closed wet cooling towers[J]. Fluid Machinery, 2013, 41 (1): 59- 62. DOI
38	郑水华. 超大型冷却塔内气液两相流动和传热传质过程的数值模拟研究[D]. 杭州: 浙江大学, 2012.
	ZHENG S H. Numerical simulation of gas-liquid flow, heat and masstransfer process in super-large cooling tower[D]. Hangzhou: Zhejiang University, 2012.
39	丁枭, 周亚素, 黄凯, 等. 不同假设条件下闭式冷却塔数学建模与实验验证[J]. 建筑热能通风空调, 2016, 35 (3): 9- 13. DOI
	DING X , ZHOU Y S , HUANG K , et al. Numerical model and experimental verification of closed cooling tower based on different assumptions[J]. Building Energy & Environment, 2016, 35 (3): 9- 13. DOI
40	牛润萍, 由世俊, 陈其针, 等. 用于供冷的闭式冷却塔换热模型与性能分析[J]. 沈阳建筑大学学报(自然科学版), 2007, (3): 453- 456.
	NIU R P , YOU S J , CHEN Q Z , et al. Modeling and performance analysis of the closed cooling tower[J]. Journal of Shenyang Jianzhu University (Natural Science), 2007, (3): 453- 456.
41	邵凯, 赵兰萍, 徐鑫祥. 闭式冷却塔换热盘管数值模拟[J]. 发电与空调, 2012, 33 (6): 70- 74. DOI
	SHAO K , ZHAO L P , XU X X . Numerical simulation of heat exchange tube units of closed cooling tower[J]. Power Generation & Air Condition, 2012, 33 (6): 70- 74. DOI
42	YUAN W , SUN F Z , LIU R , et al. The Effect of air parameters on the evaporation loss in a natural draft counter-flow wet cooling tower[J]. Energies, 2020, 13 (23): 6174- 6174. DOI
43	朱珣. 闭式冷却塔中水平椭圆管传热传质性能研究[D]. 上海: 东华大学, 2016.
	ZHU X. Investigation of heat and mass transfer of horizontal oval tube in closed wet cooling tower[D]. Shanghai: Donghua University, 2016.
44	牛修富. 侧风环境下自然通风逆流湿式冷却塔的配水系统研究[D]. 济南: 山东大学, 2008.
	NIU X F. Research on water distribution system of natural draft counter-flow wet cooling towers under cross-wind conditions[D]. Jinan: Shandong University, 2008.
45	SARKER M M A , KIM E , MOON C G , et al. Performance characteristics of the hybrid closed circuit cooling tower[J]. Energy & Buildings, 2008, 40 (8): 1529- 1535.
46	李秀云, 闻浩祖. 冷却塔的节能潜力分析[J]. 中国电力, 1997, 30 (10): 34- 36.
	LI X Y , WEN H Z . To analyze energy-saving potential of cooling tower[J]. Electric Power, 1997, 30 (10): 34- 36.
47	吴佳菲, 曾力丁, 郑伟业, 等. 高效闭式冷却塔的优化设计及节能运行[J]. 化学工程, 2012, 40 (6): 1- 4.
	WU J F , ZENG L D , ZHENG W Y , et al. Design optimization and energy-saving operation of high efficient closed circuit cooling tower[J]. Chemical Engineering (China), 2012, 40 (6): 1- 4.
48	胡少华, 高沙沙, 刘忠超, 等. 干湿联合冷却塔冷却节水分析软件开发及应用[J]. 化工进展, 2020, 39 (S2): 447- 453.
	HU S H , GAO S S , LIU Z C , et al. Development and application of cooling and water-saving analysis software for dry-wet hybrid cooling tower[J]. Chemical Industry and Engineering Progress, 2020, 39 (S2): 447- 453.
49	HU H M , LI Z , JIANG Y Y , et al. Thermodynamic characteristics of thermal power plant with hybrid (dry/wet) cooling system[J]. Energy, 2018, 147, 729- 741. DOI
50	陈铁锋, 胡少华, 赵元宾, 等. 干湿联合冷却塔消雾节水特性的耦合研究[J]. 中国电机工程学报, 2021, 41 (1): 277- 287.
	CHEN T F , HU S H , ZHAO Y B , et al. Coupling study on plume abatement and water saving performance for dry-wet cooling tower[J]. Procedings of the CSEE, 2021, 41 (1): 277- 287.
