变工况条件下汽轮机高压缸末级气动及强度性能研究

石红晖, 王海波, 曹蓉秀, 姚力, 晏鑫

Research on Aerodynamic and Strength Performance of Last Stage in High-Pressure Cylinder of Steam Turbine Under Variable Working Conditions

Honghui SHI, Haibo WANG, Rongxiu CAO, Li YAO, Xin YAN

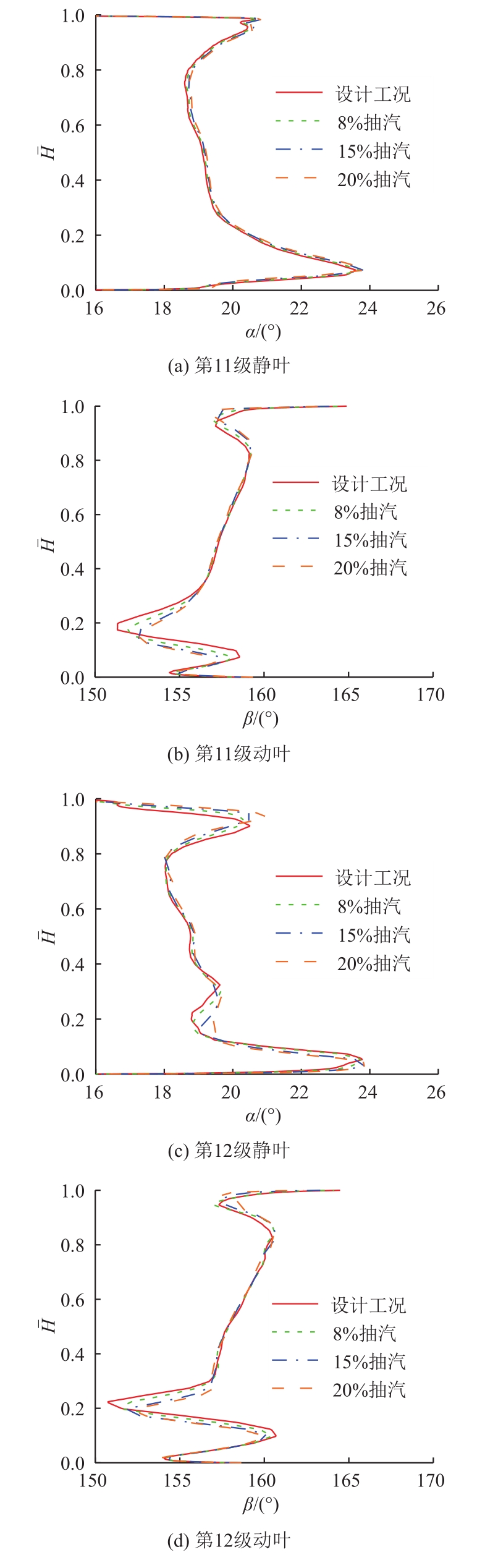

图10 叶栅出口汽流角沿叶高的分布

Fig. 10 Blade outlet flow angle distributions along the spanwise direction
