变工况条件下汽轮机高压缸末级气动及强度性能研究
Research on Aerodynamic and Strength Performance of Last Stage in High-Pressure Cylinder of Steam Turbine Under Variable Working Conditions
变工况条件下汽轮机高压缸末级气动及强度性能研究 |
| 石红晖, 王海波, 曹蓉秀, 姚力, 晏鑫 |
|
Research on Aerodynamic and Strength Performance of Last Stage in High-Pressure Cylinder of Steam Turbine Under Variable Working Conditions |
| Honghui SHI, Haibo WANG, Rongxiu CAO, Li YAO, Xin YAN |

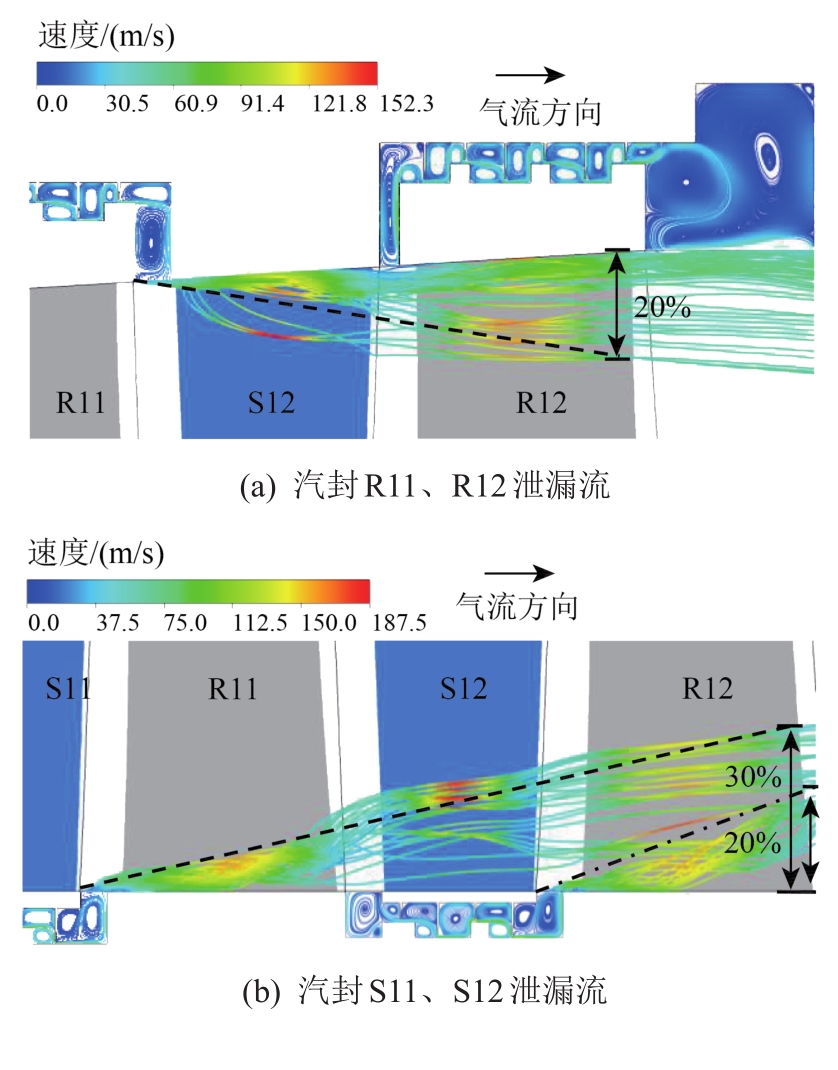

| 图7 20%抽汽工况下汽封泄漏引起的二次流子午面流线 |
| Fig. 7 Secondary flow meridian streamlines caused by steam steal leakage under 20% extraction condition |
|
|
