发电技术 ›› 2021, Vol. 42 ›› Issue (2): 218-229.DOI: 10.12096/j.2096-4528.pgt.20111

• 新能源 • 上一篇    下一篇

锂离子电池结合棋盘拓扑分流结构的浸没冷却热管理研究

刘倩(), 石千磊(), 李凯璇(), 徐超(), 廖志荣(), 巨星()

  • 收稿日期:2020-10-20 出版日期:2021-04-30 发布日期:2021-04-29
  • 通讯作者: 巨星
  • 作者简介:刘倩(1997), 女, 硕士研究生, 主要研究方向为电动汽车电池热管理, liuqian_0802@163.com
    石千磊(1994), 男, 硕士研究生, 主要研究方向为高热流密度冷却技术, shiqianlei@ncepu.edu.cn
    李凯璇(1993), 女, 博士研究生, 主要研究方向为电动汽车电池热管理, lkxtata@126.com
    徐超(1980), 男, 博士, 教授, 主要研究方向为可再生能源多场耦合热质传热传质, mechxu@ncepu.edu.cn
    廖志荣(1988), 男, 博士, 讲师, 主要研究方向为相变储热, zhirong.liao@ncepu.edu.cn
  • 基金资助:
    国家自然科学基金项目(51876062);国家自然科学基金项目(51706071)

Research on Immersion Cooling Thermal Management of Lithium Ion Battery Combined With Checkerboard Topology Diversion Structure

Qian LIU(), Qianlei SHI(), Kaixuan LI(), Chao XU(), Zhirong LIAO(), Xing JU()

  • Received:2020-10-20 Online:2021-04-30 Published:2021-04-29
  • Contact: Xing JU
  • Supported by:
    National Natural Science Foundation of China(51876062);National Natural Science Foundation of China(51706071)

摘要:

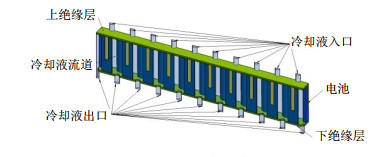

针对动力电池热管理的问题,对18650圆柱型锂离子电池阵列的新型液冷结构及其冷却效果展开研究。提出棋盘拓扑分流结构的浸没式冷却方法,结合锂离子电池自身形状和阵列排布的特点,基于电池阵列本体形成一种简单合理的浸没式冷却拓扑结构。在此新型冷却结构的设计下,进一步建立电池阵列的单体模型和模组模型,通过数值模拟方法对单体模型和模组模型在各个时刻的温度分布情况进行分析,验证了以单体模型代替模组模型的可行性。在确保单体模型计算准确性的基础上,对冷却液流道的出入口布置进行数值模拟,结果表明:流道出入口同侧布置与异侧布置具有几乎相同的出入口压降,但流道出入口同侧布置的冷却效果优于异侧布置,且随着电池生热量的增大和生热时间的增加,同侧出入口布置的优势更加明显。

关键词: 锂离子电池, 热管理, 歧管, 浸没冷却, 数值模拟

Abstract:

In view of the thermal management of power batteries, the new liquid-cooling structure of 18650 cylindrical lithium ion battery array and its cooling effect were studied. An immersion cooling method combined with a checkerboard topology shunt structure was proposed. And by combining the shape and array arrangement of the lithium ion battery, a simple and reasonable immersion cooling topology based on the battery array was formed. Under this new cooling structure, the single model and module model of the battery array were established. Through the numerical simulation, the temperature distribution of the single and module models at every moment was analyzed, and the feasibility of replacing the module model with the single one was verified. On the basis of ensuring the calculation accuracy of the single model, numerical simulations on the layout of the inlet and outlet of the cooling channel were carried out. The results show that the same-side arrangement and the different-side one are almost the same in the pressure drop, but the same-side arrangement is superior to the different-side arrangement in terms of cooling effect. Moreover, with the increase of the heat generation of the battery and the extension of the heating time, the advantages of the arrangement of the inlets and outlets on the same side are more obvious.

Key words: lithium ion battery, thermal management, manifold, immersion cooling, numerical simulation
