1000MW超超临界机组调阀快关边界条件分析与应用

doi:10.12096/j.2096-4528.pgt.20004

发电技术 ›› 2020, Vol. 41 ›› Issue (6): 689-696.DOI: 10.12096/j.2096-4528.pgt.20004

1000MW超超临界机组调阀快关边界条件分析与应用

宋晓辉¹(), 梁恒¹(), 陈新明²(), 普建国¹(), 廖军林¹(), 伍刚¹(), 尹金亮³()

¹ 西安热工研究院有限公司, 陕西省西安市 710054
² 中国华能集团清洁能源技术研究院有限公司, 北京市昌平区 102209
³ 国家电投集团河南电力有限公司技术信息中心, 河南省郑州市 450000

收稿日期:2020-03-11 出版日期:2020-12-31 发布日期:2021-01-12
作者简介:宋晓辉(1989), 男, 硕士, 工程师, 研究方向为大型汽轮发电机组的调试及故障诊断, songxiaohui@tpri.com.cn
梁恒(1987), 男, 工程师, 研究方向为大型汽轮发电机组的热工调试与协调优化, lh-3314@163.com
陈新明(1989), 男, 硕士, 工程师, 主要研究方向为火电厂热力系统仿真、风电场流场仿真分析、风电机组性能检测评估等, xm_chen@qny.chng.com.cn
普建国(1979), 男, 工程师, 研究方向为大型汽轮发电机组的调试及故障诊断, pujianguo@tpri.com.cn
廖军林(1979), 男, 工程师, 研究方向为大型汽轮发电机组的调试及故障诊断, liaojunlin@tpri.com.cn
伍刚(1981), 男, 高级工程师, 研究方向为大型汽轮发电机组的调试及故障诊断, wugang@tpri.com.cn
尹金亮(1963), 男, 高级工程师, 研究方向为大型汽轮发电机组的研究及故障诊断, yjl19630520@163.com
基金资助:
国家重点研发计划项目(2019YFE0100100)

Analysis and Application of Fast Closing Boundary Conditions for Governing Valves of 1 000 MW Ultra-supercritical Unit

Xiaohui SONG¹(), Heng LIANG¹(), Xinming CHEN²(), Jianguo PU¹(), Junlin LIAO¹(), Gang WU¹(), Jinliang YIN³()

¹ Xi'an Thermal Power Research Institute Co., Ltd., Xi'an 710054, Shaanxi Province, China
² Huaneng Clean Energy Research Institute, Changping District, Beijing 102209, China
³ Technical and Information Center, State Power Investment Company Henan Electric Power Co., Ltd., Zhengzhou 450000, Henan Province, China

Received:2020-03-11 Published:2020-12-31 Online:2021-01-12
Supported by:
National Key Research and Development Program of China(2019YFE0100100)

摘要/Abstract

摘要：

某1 000 MW超超临界机组在冷态冲转过程中出现调阀频繁快关动作，造成阀体支撑晃动大，无法继续升速。针对这一问题，试运现场通过调整冲转参数、检查电磁阀油路、重新化验控制油油质等措施仍未得到解决。为此，从转速控制逻辑出发，分析快关动作发生的条件及调阀快关过程中比例积分（proportion integration，PI）调节量的变化，得出快关过程中影响总流量指令（即最终的阀位开度）最主要的因素是转速调节的前馈量变化，而并非是转速PI输出量的变化。依据这一分析，在不改变冲转参数、阀门流量特性曲线的条件下，计算出转速控制前馈量的边界值。通过多次尝试确立前馈量的最优值，避免控制逻辑中因参数设置不合理而触发调阀快关动作。优化后实际转速跟随设定值平稳上升，调阀开度线性开启，不再出现频繁摆动，达到升速控制的要求。

关键词: 超超临界机组, 频繁快关, 转速控制, 调节量, 前馈量, 最优值

Abstract:

The frequent fast closing action of the governing valve in a 1000 MW ultra-supercritical unit occurred during the cold running process, which caused the valve body to sway greatly and could not continue to speed up. The problem had not been solved by governing the impulse parameters, checking the solenoid valve oil circuit, retesting the control oil quality and other measures. Therefore, starting from the speed control logic, the conditions of fast closing action and the change of proportional integral (PI) regulating quantity were analyzed. It was concluded that the main factor affecting the total flow instruction (the final valve position opening) in the process of fast closing is the feedforward change of speed regulation, not the change of PI output. Based on this analysis, the boundary value of feedforward quantity of speed control was calculated without changing the impulse parameters and the flow characteristic curve of the valve. Through many attempts to establish the optimal value of feedforward quantity, the fast closing action of the governing valve can be avoided due to the unreasonable parameter setting in the control logic. After optimization, the actual speed rises steadily with the set value, the valve opening is opened linearly, and there is no more frequent swing, which meets the requirements of speed up control.

Key words: ultra-supercritical unit, frequent fast closing, speed control, regulating quantity, feedforward quantity, optimum value

中图分类号:

TK38

宋晓辉, 梁恒, 陈新明, 普建国, 廖军林, 伍刚, 尹金亮. 1000MW超超临界机组调阀快关边界条件分析与应用[J]. 发电技术, 2020, 41(6): 689-696.

Xiaohui SONG, Heng LIANG, Xinming CHEN, Jianguo PU, Junlin LIAO, Gang WU, Jinliang YIN. Analysis and Application of Fast Closing Boundary Conditions for Governing Valves of 1 000 MW Ultra-supercritical Unit[J]. Power Generation Technology, 2020, 41(6): 689-696.

图/表 9

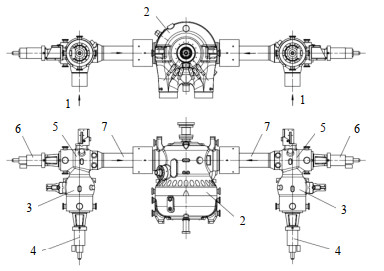

图1 阀门布置示意图 1—主蒸汽进口；2—高压缸；3—主汽阀；4—主汽阀油动机；5—主调阀；6—主调阀油动机；7—进汽插管。

Fig.1 Schematic diagram of valve layout

图2 冲转过程调阀指令反馈的变化曲线 1—高压主汽压力；2—主汽温度；3—中压主汽门前压力；4—再热温度；5—真空；6—实际转速；7—高压调阀1号快关信号；8—高压调阀2号快关信号；9—中压调阀1号快关信号。

Fig.2 Change curve of command feedback of governing valve in the process of turning

表1 高压调阀流量特性数据

Tab. 1 High pressure governing valve flow characteristic data

高压调阀开度/%	高压调阀流量指令O_SFD/%
-29.84	-100.00
22.31	74.76
28.43	85.05
35.65	89.66
47.00	93.11
105.00	100.65

表2 中压调阀流量特性数据

Tab. 2 Intermediate pressure governing valve flow characteristic data

中压调阀开度/%	中压调阀流量指令O_SAF/%
-27.93	-100.00
17.05	61.05
23.05	72.53
31.00	80.35
37.42	83.65
105.00	101.31

图3 高压调阀流量特性曲线

Fig.3 High pressure governing valve flow characteristic curve

图4 中压调阀流量特性曲线

Fig.4 Intermediate pressure governing valve flow characteristic curve

图5 冲转过程中调阀快关动作曲线 1—转速偏差psf40；2—换算后的转速偏差比psf560；3—控制回路的前馈量n410；4—实际转速；5—设定转速；6—总流量输出指令ynprom；7—高压调阀1反馈；8—高压调阀2反馈；9—中压调阀1反馈；10—中压调阀2反馈。

Fig.5 Fast closing action curve of governing valve in the process of turning

图6 转速控制SAMA图

Fig.6 Speed control SAMA diagram

图7 优化后的冲转过程曲线 1—转速偏差psf40；2—换算后的转速偏差比psf560；3—控制回路的前馈量n410；4—实际转速；5—设定转速；6—总流量输出指令ynprom；7—高压调阀1反馈；8—高压调阀2反馈；9—中压调阀1反馈；10—中压调阀2反馈；11—高压调阀1号快关信号；12—高压调阀2号快关信号；13—中压调阀1号快关信号；14—中压调阀2号快关信号。

Fig.7 Optimized turning process curve

参考文献 22

1	高秋海, 沈俭. 600 MW汽轮机阀门活动试验的异常分析与处理[J]. 机电工程技术, 2016, 45 (7): 102- 105. DOI
	GAO Q H , SHEN J . 600 MW steam turbine valve abnormal activity test of analysis and processing[J]. M&E Engineering Technology, 2016, 45 (7): 102- 105. DOI
2	甘超齐, 李春光, 汪勇刚. 汽轮机主汽阀关闭时间超标原因分析及处理措施[J]. 热力发电, 2014, 43 (7): 139- 142. DOI
	GAN C Q , LI C G , WANG Y G . Over standard of mail steam valves closing time in a pressure steam turbine:reason analysis and countermeasures[J]. Thermal Power Generation, 2014, 43 (7): 139- 142. DOI
3	郝帅, 吴昕, 王明远, 等. 350 MW超临界机组汽轮机汽流激振分析及处理[J]. 发电技术, 2019, 40 (2): 168- 174.
	HAO S , WU X , WANG M Y , et al. Analysis and processing of the steam-flow exciting vibration in steam turbine of a 350 MW supercritical unit[J]. Power Generation Technology, 2019, 40 (2): 168- 174.
4	盛锴, 魏乐, 江效龙, 等. 基于PSASP和Simulink的汽轮机调节系统建模与仿真校核[J]. 中国电力, 2015, 48 (2): 1- 6. DOI
	SHENG K , WEI L , JIANG X L , et al. Modeling simulation and verification of turbine governing system based on PSASP and Simulink[J]. Electric Power, 2015, 48 (2): 1- 6. DOI
5	罗云, 陈雪林, 李瑞东, 等. 汽轮机变工况下调节级压力预测模型及应用[J]. 发电技术, 2019, 40 (2): 161- 167.
	LUO Y , CHEN X L , LI R D , et al. Prediction model and application of turbine regulating stage pressure under variable conditions[J]. Power Generation Technology, 2019, 40 (2): 161- 167.
6	黄小军, 杜祥国. 600 MW超临界汽轮机延长混合阀运行时间对机组振动的影响[J]. 发电技术, 2019, 40 (2): 175- 180.
	HUANG X J , DU X G . Effect of 600 MW supercritical steam turbine prolonging running time of mixing valve on unit vibration[J]. Power Generation Technology, 2019, 40 (2): 175- 180.
7	何冬辉, 叶振起, 赵奕州. 1000 MW超超临界机组ATT试验异常问题分析及改进措施[J]. 东北电力技术, 2019, 40 (3): 12- 15.
	HE D H , YE Z Q , ZHAO Y Z . Analysis and improvement measures of ATT test abnormal problems of 1000 MW ultra-supercritical unit[J]. Northeast Electric Power Technology, 2019, 40 (3): 12- 15.
8	房国成, 赵一丹. 1000 MW超超临界机组汽轮机汽门关闭时间调整[J]. 东北电力技术, 2010, 13 (9): 11- 14. DOI
	FANG G C , ZHAO Y D . Time adjusting on steam valve system for 1000 MW ultra-supercritical generating units[J]. Northeast Electric Power Technology, 2010, 13 (9): 11- 14. DOI
9	韩庆祝, 丁建学. 汽轮机高调门振荡原因分析及处理[J]. 科技创新导报, 2016, 13 (34): 72- 73.
	HAN Q Z , DING J X . Analysis and treatment of the oscillation of steam turbine high-speed control valve[J]. Science and Technology Innovation Herald, 2016, 13 (34): 72- 73.
10	黄裕恩. 高中压调门瞬间关闭故障的分析与处理[J]. 电力安全技术, 2018, 20 (2): 32- 33. DOI
	HUANG Y E . Analysis and treatment of the fault that the oil pump linkage high and medium pressure regulating valve closes instantly[J]. Electric Safety Technology, 2018, 20 (2): 32- 33. DOI
11	颜士伟, 梅雪松, 刘海风, 等. 油泵联动过程中调节汽门关闭问题处理[J]. 汽轮机技术, 2010, 52 (6): 473- 474. DOI
	YAN S W , MEI X S , LIU H F , et al. Application of rexa actuator for MEH system retrofit of boiler feedwater pump turbine[J]. Turbine Technology, 2010, 52 (6): 473- 474. DOI
12	赵智慧, 司文波. 1000 MW超超临界机组单侧中压调门异常关闭应对策略[J]. 电力与能源, 2018, 39 (1): 94- 97.
	ZHAO Z H , SI W B . Abnormal shutdown and countermeasures for one-side medium-pressure governing valve in 1000 MW ultra-supercritical unit[J]. Power & Energy, 2018, 39 (1): 94- 97.
13	王强, 赵彩霞, 唐文岩, 等. 上汽西门子汽轮机控制及调试问题简析[J]. 热里透平, 2017, 46 (4): 288- 292.
	WANG Q , ZHAO C X , TANG W Y , et al. Brief analysis of control and commissioning of STP-SIEMENS steam turbines[J]. Thermal Turbine, 2017, 46 (4): 288- 292.
14	吴永海, 秦建新, 冯玉国. 西门子660 MW机组调门伺服阀运行中的更换[J]. 电力安全技术, 2009, 11 (4): 50- 51. DOI
	WU Y H , QIN J X , FENG Y G . Replacement of the servo valve of Siemens 660 MW unit in operation[J]. Electric Safety Technology, 2009, 11 (4): 50- 51. DOI
15	阮提, 张俊伟, 吴文杰. 华能福州电厂#6汽机ATT试验失败的原因分析及防范措施[J]. 电气工程与自动化, 2019, 2 (5): 9- 10.
	RUAN T , ZHANG J W , WU W J . Cause analysis and preventive measures of ATT test failure of #6 turbine in Huaneng Fuzhou power plant[J]. Electrical Engineering and Automation, 2019, 2 (5): 9- 10.
16	张顺利. 某超超临界660 MW机组调节汽门关闭时间超标分析与处理[J]. 中国设备工程, 2017, 7 (5): 114- 116. DOI
	ZHANG S L . Analysis and treatment of excessive closing time of regulating valve of an ultra-supercritical 660 MW unit[J]. China Plant Engineering, 2017, 7 (5): 114- 116. DOI
17	戴锡辉. 阀门活动试验时中压调门自动全关的原因分析[J]. 华电技术, 2013, 35 (5): 29- 32. DOI
	DAI X H . Analysis on reason causing medium-pressure regulating valve to close off incorrectly by itself[J]. Huadian Technology, 2013, 35 (5): 29- 32. DOI
18	孟海洋. 新型国产1050 MW超超临界机组高压主汽阀卡涩原因分析及改进[J]. 中国电力, 2018, 51 (7): 90- 93. DOI
	MENG H Y . Cause analysis and improvement on jammed high pressure main steam valve of new type domestic 1050 MW ultra-supercritical unit[J]. Electric Power, 2018, 51 (7): 90- 93. DOI
19	谢尉扬. 西门子超超临界汽轮机问题分析与改进[J]. 汽轮机技术, 2015, 57 (2): 86- 88.
	XIE W Y . Analysis and improvement of problems for Siemens ultra-supercritical turbine[J]. Turbine Technology, 2015, 57 (2): 86- 88.
20	朱北恒, 李泉. 超(超)临界机组协调控制特性与控制策略[J]. 中国电力, 2008, 41 (3): 66- 69.
	ZHU B H , LI Q . Characteristics and control strategies of coordinated control system (CCS) for supercritical and ultra-supercritical power units[J]. Electric Power, 2008, 41 (3): 66- 69.
21	王学根. 某超超临界660 MW燃煤机组FCB试验不成功原因分析及改进[J]. 华东电力, 2014, 42 (7): 1503- 1505.
	WANG X G . Cause analysis and improvement of an unsuccessful FCB test on 660 MW ultra-supercritical coal-fired unit[J]. East China Electric Power, 2014, 42 (7): 1503- 1505.
22	中国电机工程学会. 火力发电厂安全性评价[M]. 北京: 中国电力出版社, 2009.
	Chinese Society for Electrical Engineering . Safety evaluation of thermal power plant[M]. Beijing: China Electric Power Press, 2009.
